UWB CH9 7.5-8.5G 7500-8500M 4dbi Base Station Positioning Antenna 10x109mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 7500-8500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain6 | 4dBi |
| Efficiency | ≈70% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 40±5° |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | φ10*109mm |
| Color | ABS Black |
| Weight | 0.01Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 65 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

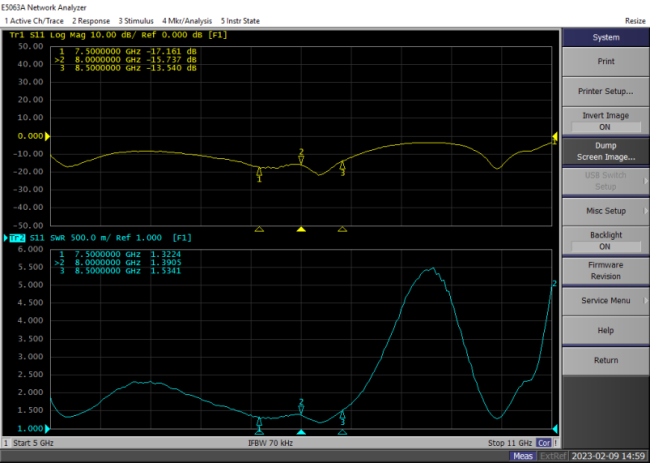

2.1 VSWR

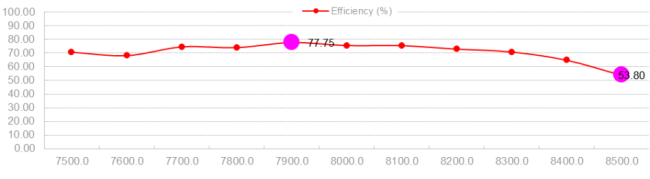

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
7500.0 |
7600.0 |
7700.0 |
7800.0 |
7900.0 |
8000.0 |
8100.0 |
8200.0 |
8300.0 |
8400.0 |
8500.0 |
|
Gain (dBi) |
3.08 |
2.80 |
3.36 |
3.28 |
3.60 |
3.02 |
2.81 |
2.19 |
3.20 |
3.36 |
3.21 |
|
Efficiency (%) |
70.69 |
68.21 |
74.59 |
74.07 |
77.75 |
75.59 |
75.49 |
72.98 |
70.84 |
64.82 |
53.80 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 7500MHz |  |
 |
 |
| 8000MHz |  |
 |
 |
| 8500MHz |  |
 |
 |
