SMA-J 915M 900-930M 2dbi LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
SMA-J 915M 900-930M 2dbi LoRa Gateway omnidirectional foldable plastic housing antenna 13x196mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 915±15MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | 2dBi |
| Efficiency | ≈75% |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA -J |
| Dimension | Φ13*196mm |
| Weight | 0.02Kg |
| Antenna material | ABS black |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

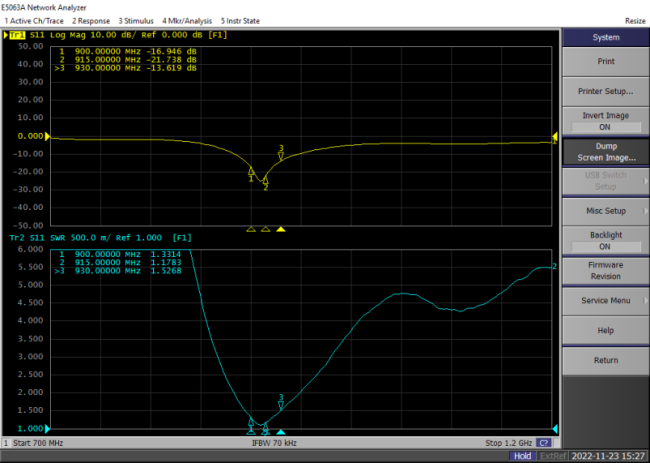

2.1 VSWR

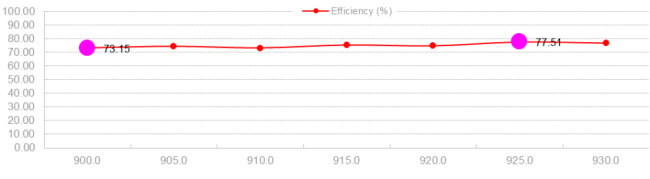

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
900.0 |
905.0 |
910.0 |
915.0 |
920.0 |
925.0 |
930.0 |
|
Gain (dBi) |
2.21 |
2.31 |
2.18 |
2.20 |
2.05 |
2.16 |
2.10 |
|
Efficiency (%) |
73.15 |
74.37 |
73.19 |
75.34 |
74.70 |
77.51 |
76.68 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 900MHz |  |
 |
 |
| 915MHz |  |
 |
 |
| 930MHz |  |
 |
 |
