SMA-J LoRa 400-470M433M Omnidirectional Plastic Rubber Rod Foldable Antenna 13x196mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
SMA-J LoRa 400-470M433M Omnidirectional Plastic Rubber Rod Foldable Antenna 13x196mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 400-470MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Gain | -1dBi |
| Efficiency | ≈35% |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA -J |
| Dimension | Φ13*196mm |
| Weight | 0.02Kg |
| Antenna material | ABS black |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data
2.1 VSWR

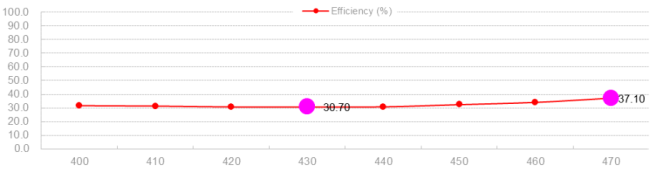

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
400 |
410 |
420 |
430 |
440 |
450 |
460 |
470 |
|
Gain (dBi) |
-1.4 |
-1.7 |
-1.8 |
-1.7 |
-1.8 |
-1.8 |
-1.7 |
-1.5 |
|
Efficiency (%) |
31.6 |
31.4 |
30.7 |
30.7 |
30.8 |
32.4 |
34.0 |
37.1 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 400MHz |  |
 |
 |
| 430MHz |  |
 |
 |
| 470MHz |  |
 |
 |
