SMA male 433M 1dbi omni-directional folding plastic rod-shaped antenna for Lora base station data transmission antenna13x196mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
SMA male 2.4G 2400-2500M Bluetooth antenna Wi-Fi router antenna omnidirectional unmanned aerial vehicle remote control folding rubber tube antenna 13x196mm
1. Specification
| A. Electrical Characteristics | |
| Frequency | 433MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 1dBi |
| Efficiency | ≈39% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 35±5° |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | Φ13*196mm |
| Weight | 0.02Kg |
| Radome material | PBT+PC BLACK |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85˚C |
| Storage Temperature | - 40 ˚C ~ + 85˚C |
2. Antenna - S Parameter Test Data

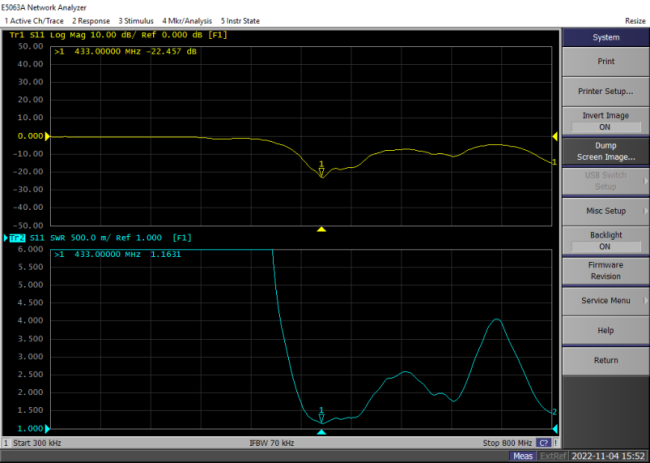

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency (MHz) |
428.0 |
429.0 |
430.0 |
431.0 |
432.0 |
433.0 |
434.0 |
435.0 |
436.0 |
437.0 |
438.0 |
|
Gain (dBi) |
0.57 |
0.61 |
0.67 |
0.75 |
0.82 |
0.84 |
0.84 |
0.81 |
0.78 |
0.75 |
0.73 |
|
Efficiency (%) |
35.69 |
36.17 |
36.82 |
37.69 |
38.45 |
38.97 |
39.21 |
39.22 |
39.21 |
39.21 |
39.30 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 428MHz |  |
 |
 |
| 433MHz |  |
 |
 |
| 438MHz |  |
 |
 |
