N Female 370-390M Single Polarization Directional 6dbi Outdoor Base Station Plate Waterproof Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 370-390MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 6dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 113-115° |
| Vertical Beamwidth | 68-72° |
| F/B | >16dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N connector |
| Dimension | 450*410*130mm |
| Radome material | UPVC |
| Weight | 5.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 60m/s |
2. Antenna - S Parameter Test Data

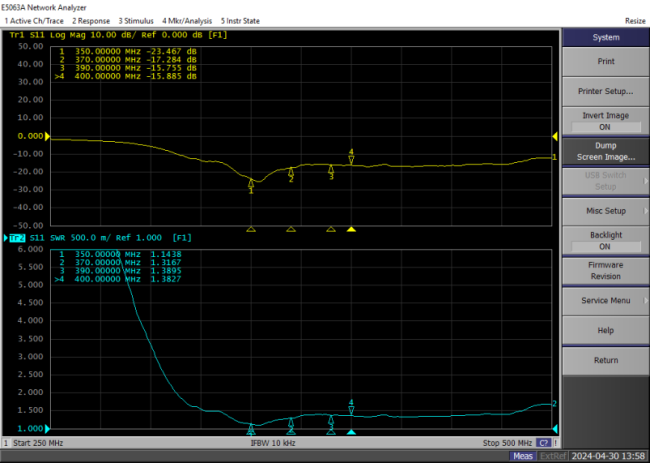

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
370 |
6.1 |
|
372 |
6.2 |
|
374 |
6.3 |
|
376 |
6.3 |
|
378 |
6.3 |
|
380 |
6.4 |
|
382 |
6.5 |
|
384 |
6.5 |
|
386 |
6.6 |
|
388 |
6.7 |
|
390 |
6.9 |

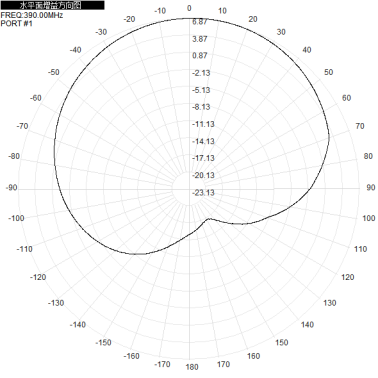

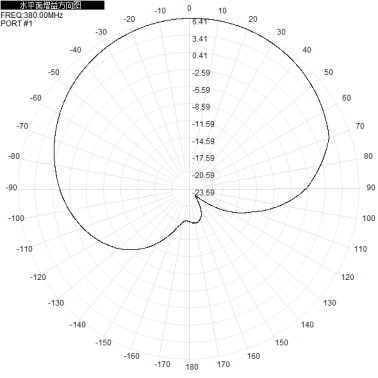

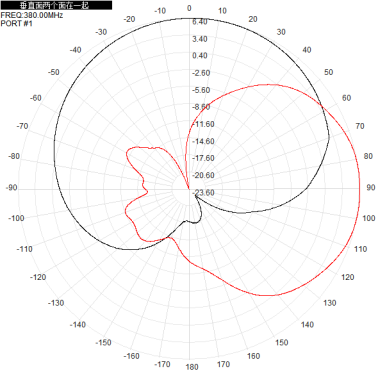

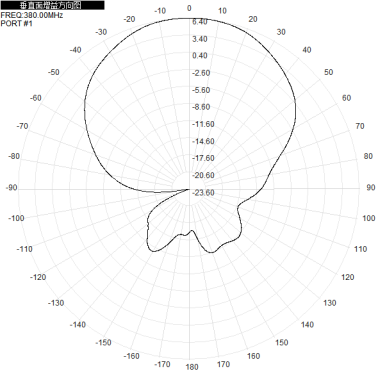

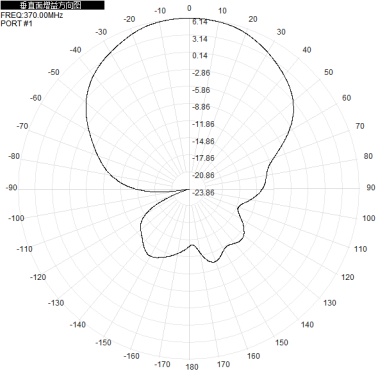

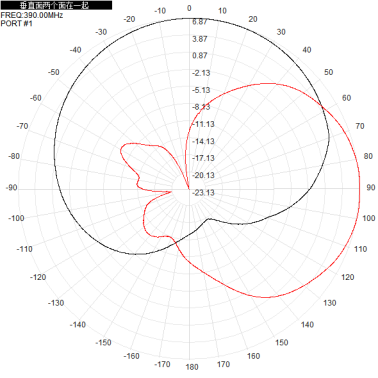

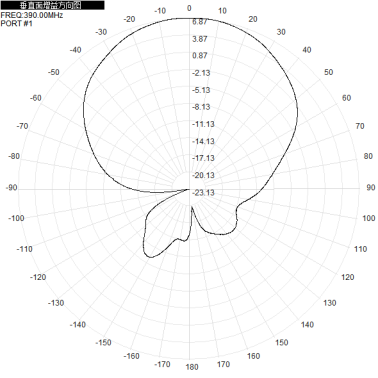

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 370MHz |  |
 |
 |
| 380MHz |  |
 |
 |
| 390MHz |  |
 |
 |
