2.4G 5.8G WiFi6e dual-band omnidirectional network card router with external folding blade-shaped rubber antenna. Frequency range: 2400-2500 M5150-5850MHz, 13x240mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
2.4G5.8G WIFI 157mm omnidirectional router external folding glue stick antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2400-2500/5150-5850MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 2dBi |
| Efficiency | ≈75% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 40° |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J or RP-SMA-J |
| Dimension | Φ13*240mm |
| Weight | 0.02Kg |
| Radome material | PBT+PC black |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85˚C |
| Storage Temperature | - 40 ˚C ~ + 85˚C |
2. Antenna - S Parameter Test Data

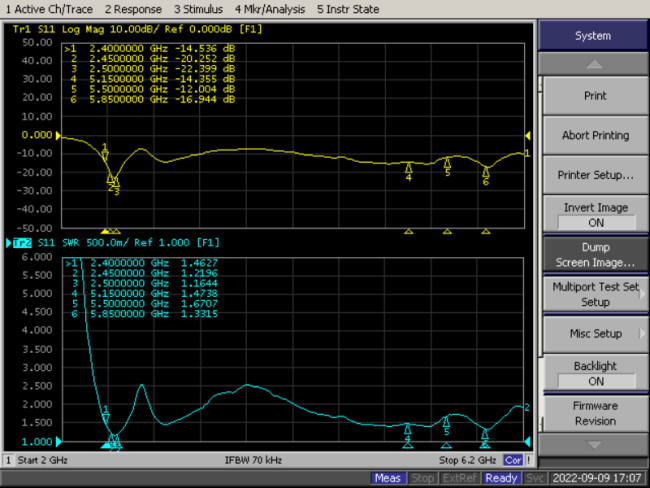

2.1 VSWR

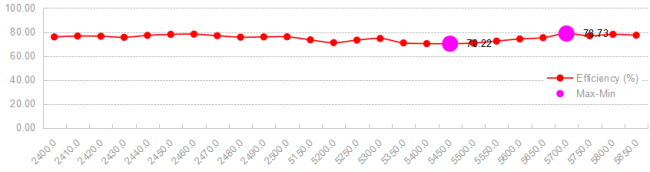

2.2 Total Efficiency & Gain:
|
Frequency (MHz) |
2400 |
2450 |
2500 |
5150 |
5350 |
5750 |
5825 |
5850 |
|
Gain (dBi) |
5.0 |
4.5 |
4.0 |
5.0 |
4.4 |
3.5 |
3.7 |
4.7 |
|
Efficiency (%) |
65.09 |
71.07 |
67.03 |
65.18 |
63.45 |
66.35 |
59.09 |
57.39 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 2400MHz |  |
 |
 |
| 2450MHz |  |
 |
 |
| 2500MHz |  |
 |
 |
| 5150MHz |  |
 |
 |
| 5500MHz |  |
 |
 |
| 5850MHz |  |
 |
 |
