N-J 400-2700M omnidirectional fiberglass antenna 60x450mm, wide frequency band, high power, base station antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
|
A. Electrical Characteristics |
||
| Frequency | 400-2700MHz | |
| VSWR | < 3.5 | |
| Efficiency | ≈76% | |
| Peak Gain | 5dBi | |
| Impedance | 50 Ohm | |
| Polarization | V | |
| Horizontal Beamwidth | 360° | |
| Vertical Beamwidth | 14-98° | |
| T90(H) roundness | ±3 | |
| Max Power | 100W | |
| B. Material & Mechanical | ||
| Connector Type | N-K | |
| Dimension | Φ60*450±5mm | |
| Weight | 0.6Kg | |
| Radome material | Fiberglass(White) | |
|
C. Environmental |
||
| Operation Temperature | - 45˚C ~ +85 ˚C | |
| Storage Temperature | - 45˚C ~ +85 ˚C | |
| Rated Wind Velocity | 36.9m/s | |
| Lighting Protection | Dc grounding | |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
400 |
0.8 |
77.7 |
|
450 |
2.0 |
87.9 |
|
500 |
1.8 |
88.3 |
|
550 |
1.2 |
75.9 |
|
600 |
1.7 |
79.2 |
|
650 |
1.6 |
69.5 |
|
700 |
1.3 |
61.2 |
|
750 |
2.0 |
74.3 |
|
800 |
1.4 |
67.9 |
|
850 |
2.2 |
77.3 |
|
900 |
2.0 |
74.8 |
|
950 |
1.6 |
71.3 |
|
1000 |
1.7 |
70.9 |
|
1100 |
3.3 |
81.4 |
|
1200 |
3.0 |
77.8 |
|
1300 |
2.7 |
76.9 |
|
1400 |
2.8 |
78.8 |
|
1500 |
2.7 |
81.3 |
|
1600 |
3.4 |
84.2 |
|
1700 |
4.5 |
86.3 |
|
1800 |
4.6 |
84.1 |
|
1900 |
3.7 |
80.5 |
|
2000 |
2.9 |
74.7 |
|
2100 |
1.8 |
67.6 |
|
2200 |
2.6 |
72.8 |
|
2300 |
1.6 |
72.9 |
|
2400 |
2.2 |
73.8 |
|
2500 |
2.8 |
72.0 |
|
2600 |
3.1 |
71.1 |
|
2700 |
4.1 |
73.9 |

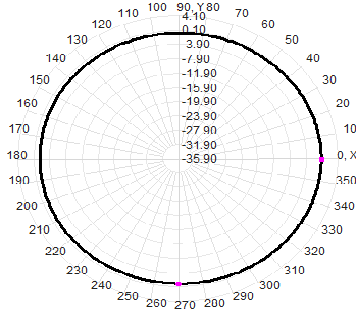

2.3 Radiation Pattern
|
3D | 2D-Horizontal | 2D-Vertical | |||

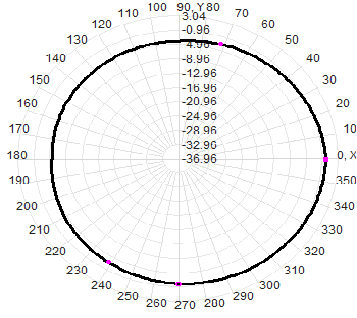

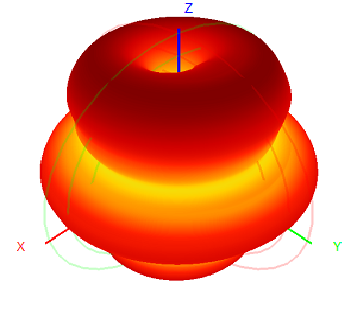

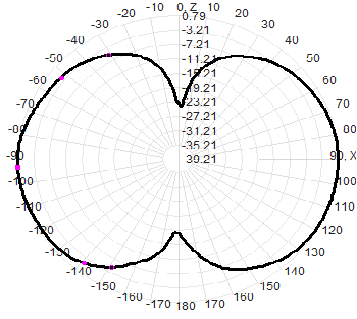

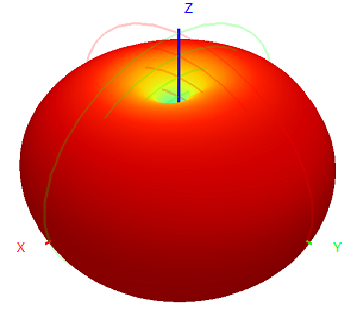

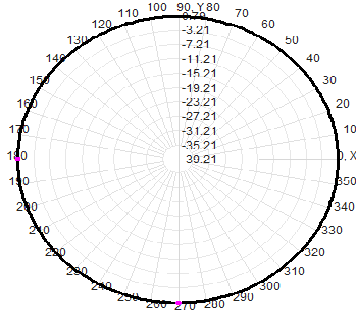

| 400MHz |  |
 |
 |
|||

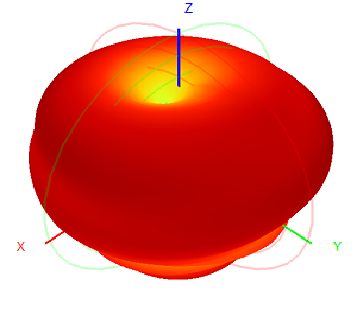

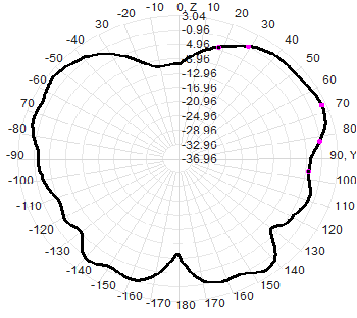

| 1200MHz |  |
 |
 |
|||

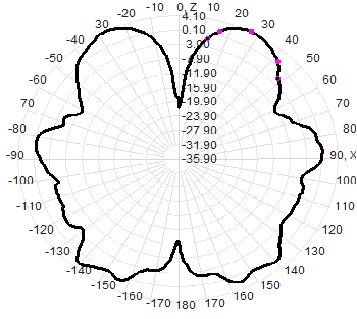

| 5900MHz |  |
 |
 |
|||
