703-803M700M800M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through directional orientation.
Price:
Negotiable
MOQ:
2
Delivery Time:
15 days
Brand:
Leenz
Product Description
703-803M 12dbi eight-port dual-polarized directional antenna, which has the characteristic of forming a full-coverage pattern through directional orientation.
1. Specification
| A. Electrical Characteristics | |
| Frequency | 703-803MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 90±5° |
| Vertical Beamwidth | 20±5° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 8*N-K |
| Dimension | φ400*1200mm |
| Radome material | Fiberglass |
| Weight | 17Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1 |
|
Port 2 |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
703 |
10.7 |
703 |
10.3 |
|
|
710 |
10.7 |
710 |
10.4 |
|
|
720 |
11.0 |
720 |
10.8 |
|
|
730 |
11.5 |
730 |
11.3 |
|
|
740 |
11.7 |
740 |
11.5 |
|
|
750 |
11.5 |
750 |
11.3 |
|
|
760 |
11.5 |
760 |
11.3 |
|
|
770 |
11.6 |
770 |
11.6 |
|
|
780 |
11.6 |
780 |
11.8 |
|
|
790 |
11.7 |
790 |
11.8 |
|
|
800 |
11.9 |
800 |
11.9 |
|
|
803 |
11.9 |
803 |
11.8 |
|

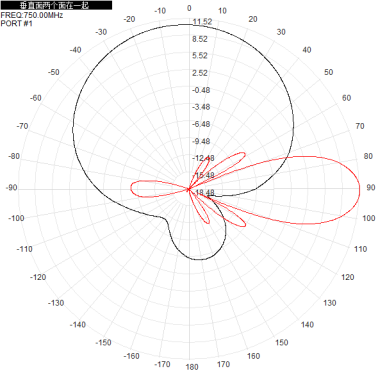

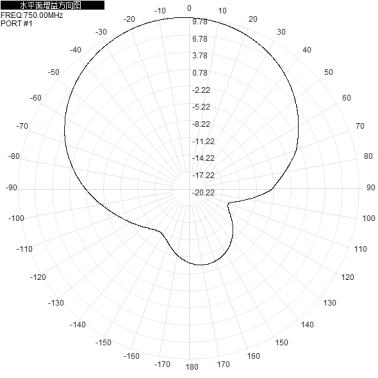

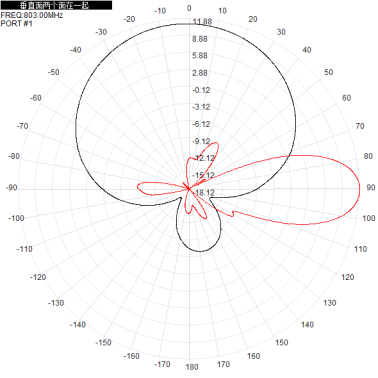

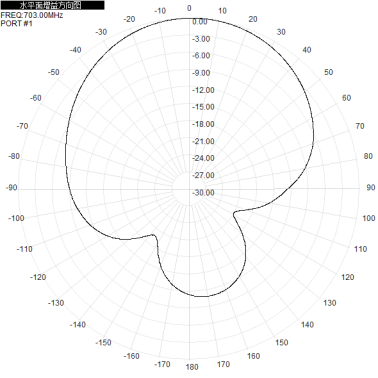

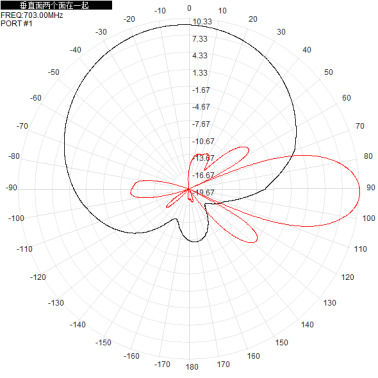

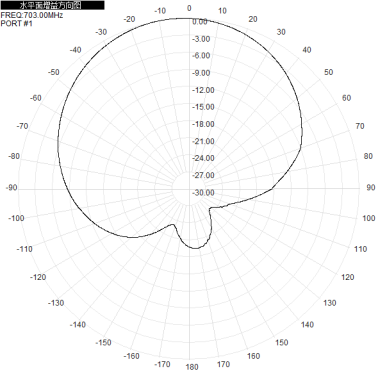

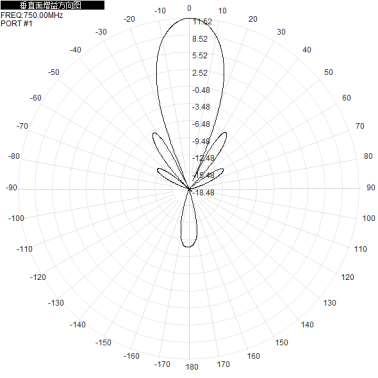

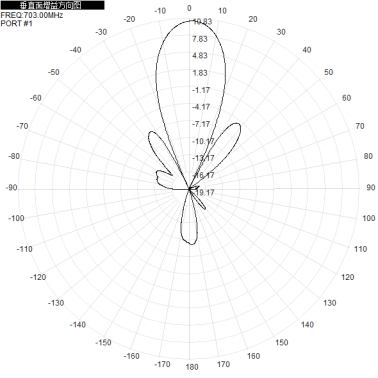

2.3 Radiation Pattern

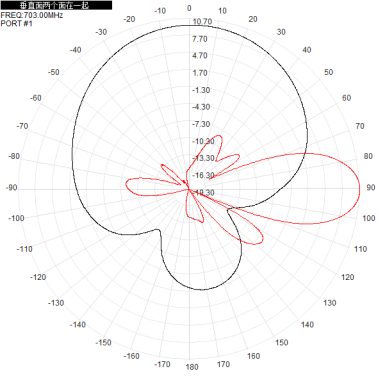

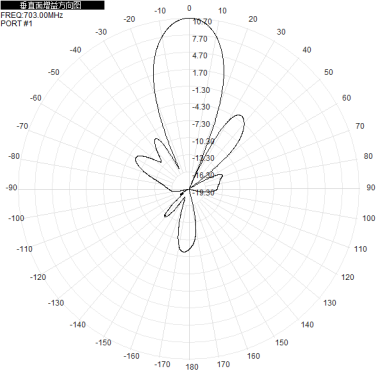

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 703MHz |  |
 |
 |
| 750MHz |  |
 |
 |
| 800MHz |  |
 |
 |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 703MHz |  |
 |
 |
| 750MHz |  |
 |
 |
| 800MHz |  |
 |
 |
