2*N-K 703-803M 700M 800M 9dbi dual-polarization directional antenna for base station antenna
1. Specification
| A. Electrical Characteristics | |
| Frequency | 703-803MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 9dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 80±10° |
| Vertical Beamwidth | 40±10° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension | 450*280*125mm |
| Radome material | UPVC |
| Weight | 4.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1 +45° |
|
Port 2 -45° |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
703 |
7.8 |
703 |
8.3 |
|
|
710 |
7.8 |
710 |
8.2 |
|
|
720 |
7.9 |
720 |
8.2 |
|
|
730 |
8.1 |
730 |
8.4 |
|
|
740 |
8.5 |
740 |
8.5 |
|
|
750 |
8.7 |
750 |
8.6 |
|
|
760 |
9.0 |
760 |
8.8 |
|
|
770 |
9.3 |
770 |
9.0 |
|
|
780 |
9.5 |
780 |
9.2 |
|
|
790 |
9.4 |
790 |
9.2 |
|
|
800 |
9.4 |
800 |
9.3 |
|
|
803 |
9.2 |
803 |
9.1 |
|

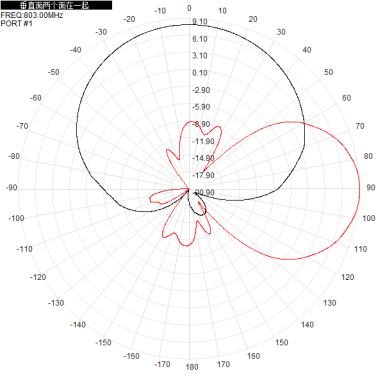

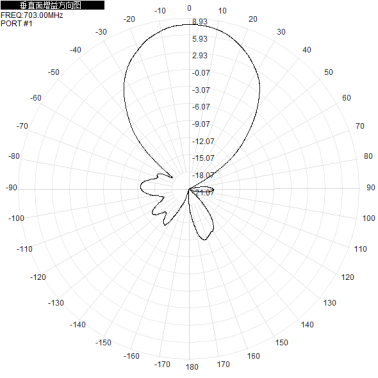

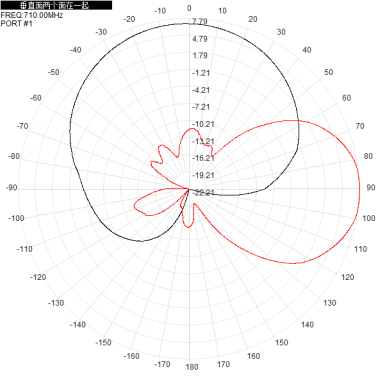

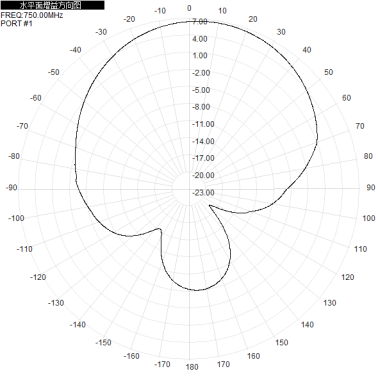

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 703MHz |  |
 |
 |
| 750MHz |  |
 |
 |
| 803MHz |  |
 |
 |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 703MHz |  |
 |
 |
| 750MHz |  |
 |
 |
| 803MHz |  |
 |
 |
