703-803M 700M 800M 12dbi Single-polarization Directional Antenna 1200x280x125mm
Price:
Negotiable
MOQ:
2
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 703-803MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 12dBi |
| Polarization | V |
| Horizontal Beamwidth | 100±10° |
| Vertical Beamwidth | 20±5° |
| F/B | >23dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K |
| Dimension | 1200*280*125mm |
| Radome material | UPVC |
| Weight | 10Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

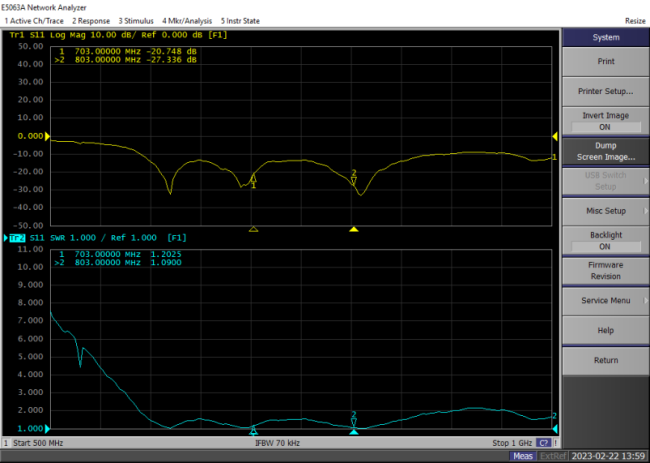

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
703 |
12.8 |
|
713 |
12.5 |
|
723 |
12.2 |
|
733 |
12.0 |
|
743 |
12.0 |
|
753 |
12.1 |
|
763 |
12.4 |
|
773 |
12.5 |
|
783 |
12.5 |
|
793 |
12.6 |
|
803 |
12.7 |
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

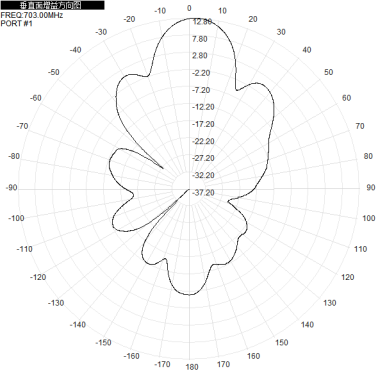

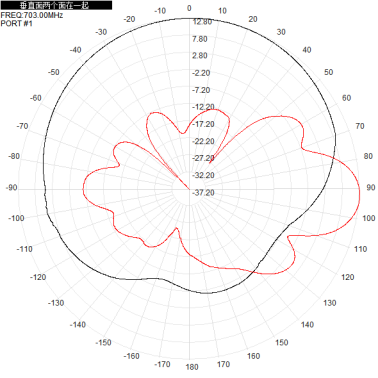

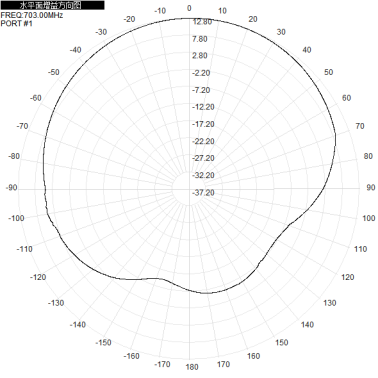

| 703MHz |  |
 |
 |

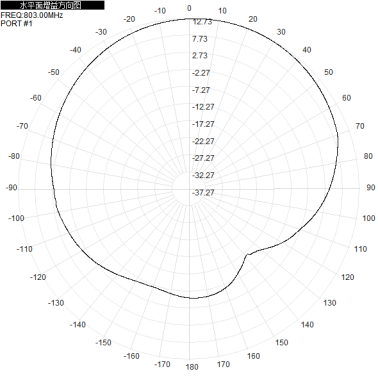

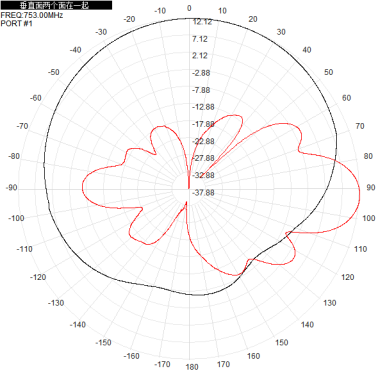

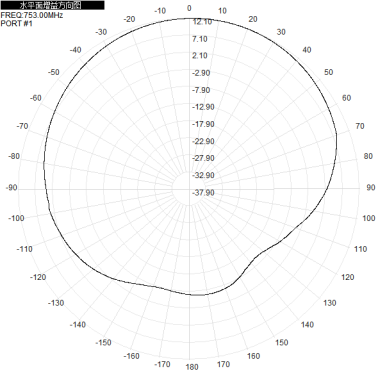

| 753MHz |  |
 |
 |

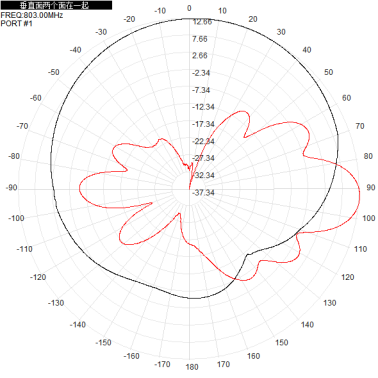

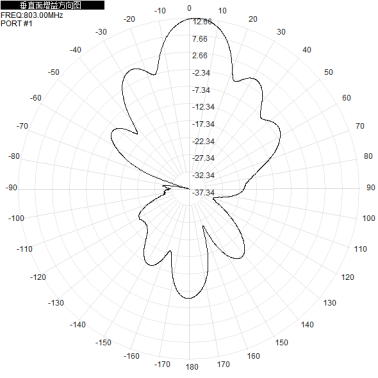

| 803MHz |  |
 |
 |
