UWB 3.7-4.2G 3700-4200M 3dBi omnidirectional small mushroom head ceiling-mounted antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 3dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 50-60° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K connector |
| Dimension | φ86*40mm |
| Radome material | ABS |
| Weight | 0.09Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity |
36.9m/s |
2. Antenna - S Parameter Test Data

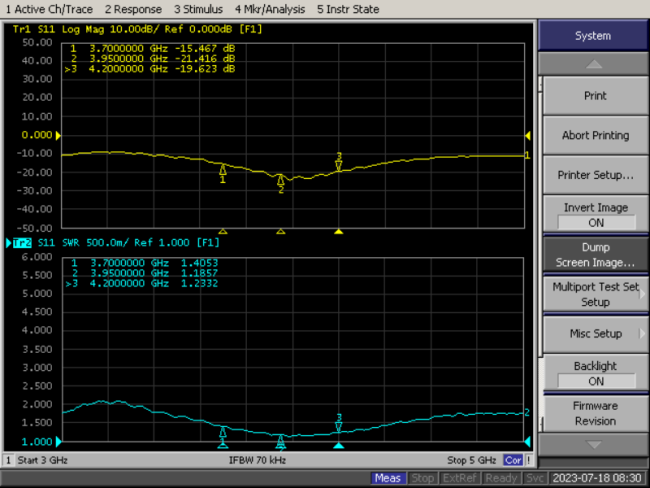

2.1 VSWR

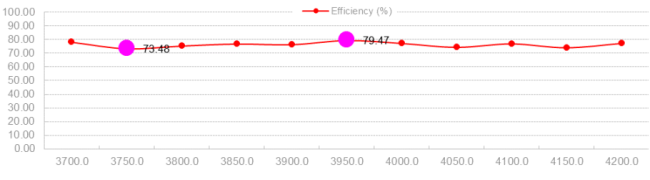

2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
3700.0 |
3750.0 |
3800.0 |
3850.0 |
3900.0 |
3950.0 |
4000.0 |
4050.0 |
4100.0 |
4150.0 |
4200.0 |
|
Gain (dBi) |
2.68 |
2.40 |
2.42 |
2.48 |
2.56 |
2.80 |
2.76 |
2.62 |
2.92 |
2.80 |
3.14 |
|
Efficiency (%) |
78.22 |
73.48 |
75.45 |
76.93 |
76.43 |
79.47 |
77.36 |
74.52 |
77.05 |
74.20 |
77.39 |
2.3 Radiation Pattern
| Port1 | 3D | 2D-Horizontal | 2D- Vertical |
| 3700MHz |  |
 |
 |
| 3950MHz |  |
 |
 |
| 4200MHz |  |
 |
 |
