SMA male Lora 433M omnidirectional waterproof rubber antenna 12x135mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 433MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | -1dBi |
| Efficiency | ≈23% |
| Polarization | Linear |
| Impedance | 50 Ohm |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | ¢12*135mm |
| Color | TPEE+PC Black |
| Weight | 0.01Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
2. Antenna - S Parameter Test Data

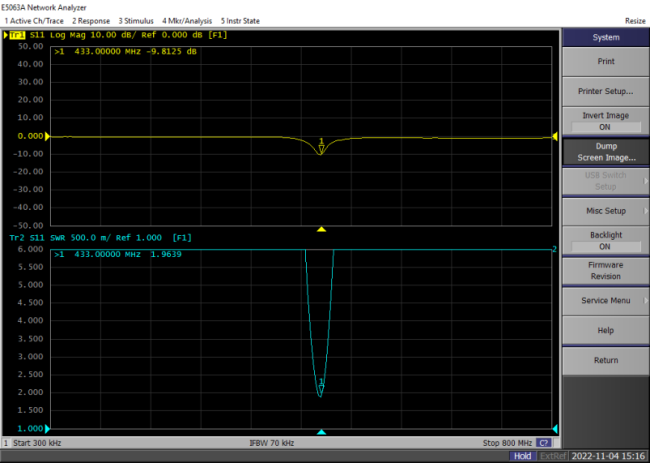

2.1 VSWR

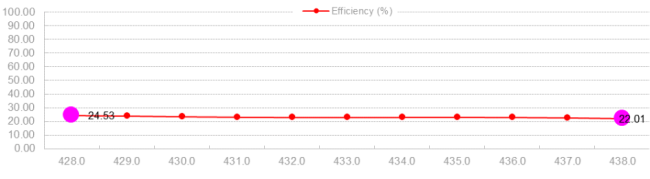

2.2 Total Efficiency & Gain
|
Frequency (MHz) |
428.0 |
429.0 |
430.0 |
431.0 |
432.0 |
433.0 |
434.0 |
435.0 |
436.0 |
437.0 |
438.0 |
|
Gain (dBi) |
-1.18 |
-1.28 |
-1.40 |
-1.49 |
-1.54 |
-1.58 |
-1.59 |
-1.60 |
-1.64 |
-1.73 |
-1.89 |
|
Efficiency (%) |
24.53 |
24.04 |
23.51 |
23.16 |
22.97 |
22.94 |
23.02 |
23.08 |
23.02 |
22.66 |
22.01 |
2.2 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 428MHz |  |
 |
 |
| 433MHz |  |
 |
 |
| 438MHz |  |
 |
 |
