1.3G1.4G 1300 - 1500M 14dbi ± 45° dual-polarization directional antenna, 390x390x50mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1300-1500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 30-35° |
| Vertical Beamwidth | 30-35° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2-N-K connector |
| Dimension |
390*390*50mm |
| Radome material | ABS |
| Weight | 1.7Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1(+45°) |
|
Port 2(-45°) |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
1300 |
13.2 |
1300 |
13.4 |
|
|
1325 |
13.7 |
1325 |
13.4 |
|
|
1350 |
13.8 |
1350 |
13.6 |
|
|
1375 |
14.1 |
1375 |
14.1 |
|
|
1400 |
14.4 |
1400 |
14.4 |
|
|
1425 |
14.3 |
1425 |
13.9 |
|
|
1450 |
14.4 |
1450 |
14.3 |
|
|
1475 |
14.4 |
1475 |
14.4 |
|
|
1500 |
14.2 |
1500 |
14.4 |
|

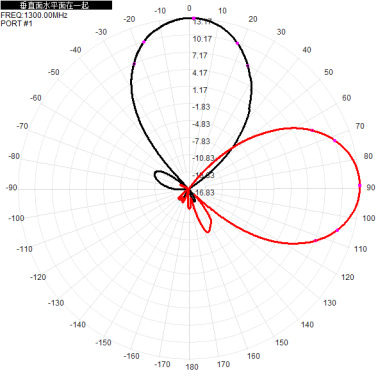

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1300MHz |  |
 |
 |
| 1400MHz |  |
 |
 |
| 1500MHz |  |
 |
 |
