1.4G 1300-1500M 14dbi single-polarization directional antenna, 550x230x40mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1300-1500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 67-70° |
| Vertical Beamwidth | 19-21° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N-K connector |
| Dimension |
550*230*40mm |
| Radome material | ASA |
| Weight | 3.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

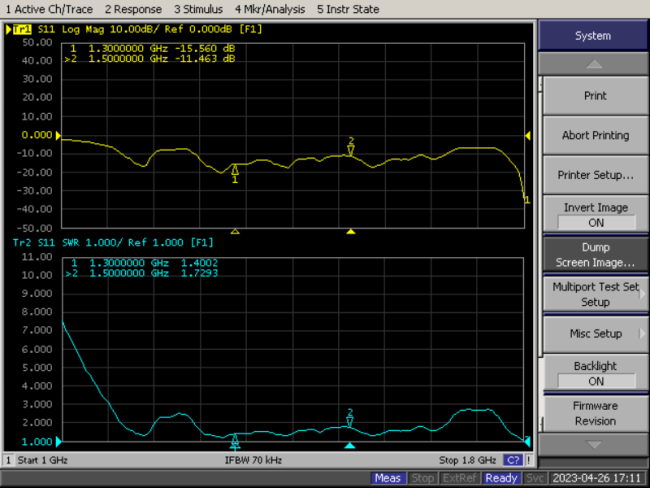

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
1300 |
14.0 |
|
1325 |
14.2 |
|
1350 |
13.5 |
|
1375 |
13.7 |
|
1400 |
13.5 |
|
1425 |
13.0 |
|
1450 |
12.9 |
|
1475 |
12.8 |
|
1500 |
13.2 |

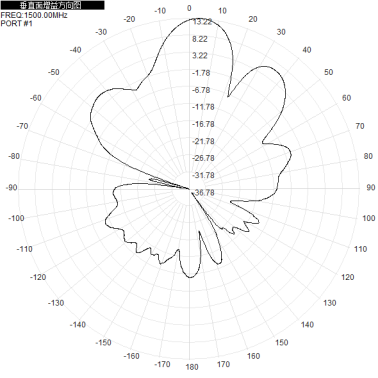

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

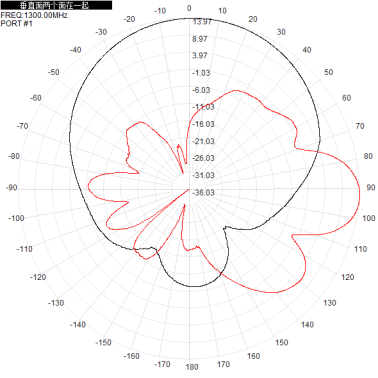

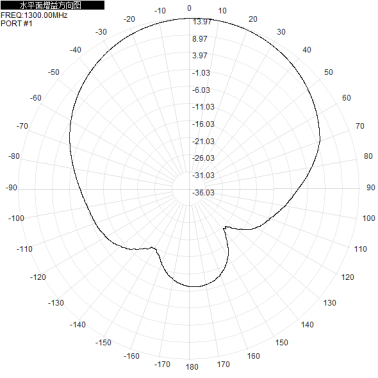

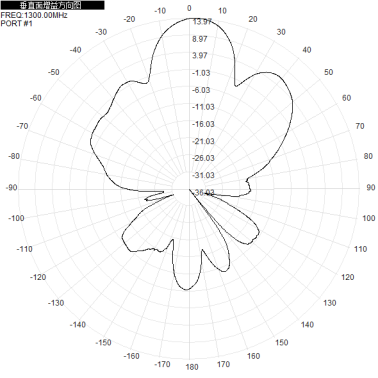

| 1300MHz |  |
 |
 |

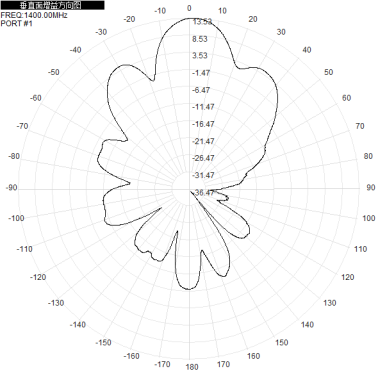

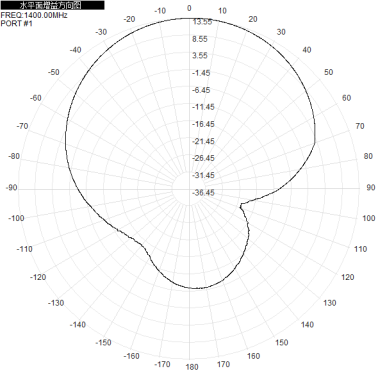

| 1400MHz |  |
 |
 |

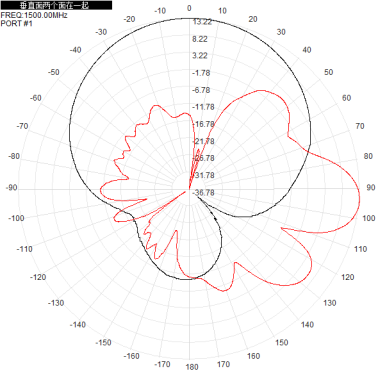

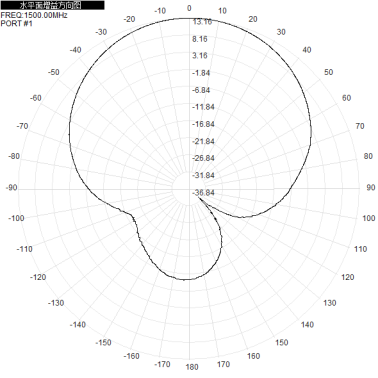

| 1500MHz |  |
 |
 |
