1.4G 1300-1500M 8dBi single-polarization directional antenna for unmanned aerial vehicle, SMA male connector, 210x180x45mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1300-1500MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 8dBi |
| Polarization | V |
| Horizontal Beamwidth | 60±10° |
| Vertical Beamwidth | 60±10° |
| F/B | >18dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | RG58U L=100CM, SMA-J |
| Dimension |
210*180*45mm |
| Radome material | ABS |
| Weight | 0.4Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

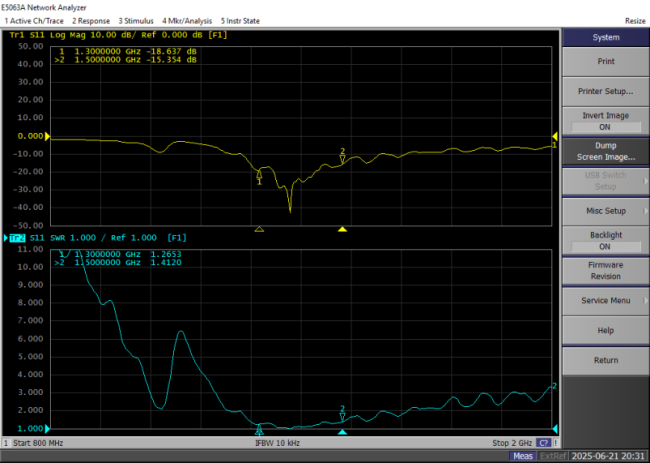

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
1300 |
7.9 |
|
1325 |
8.2 |
|
1350 |
8.2 |
|
1375 |
8.3 |
|
1400 |
8.5 |
|
1425 |
8.1 |
|
1450 |
7.9 |
|
1475 |
7.8 |
|
1500 |
7.8 |
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

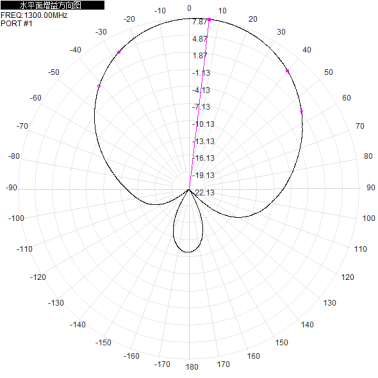

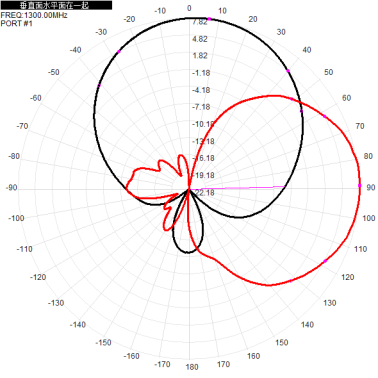

| 1300MHz |  |
 |
 |

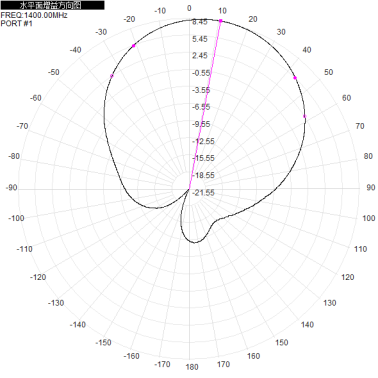

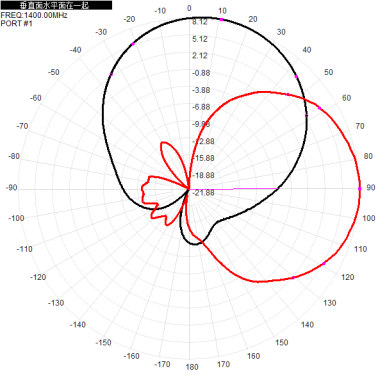

| 1400MHz |  |
 |
 |

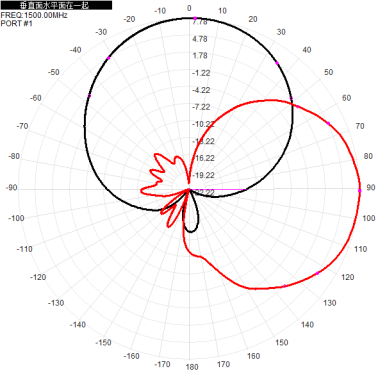

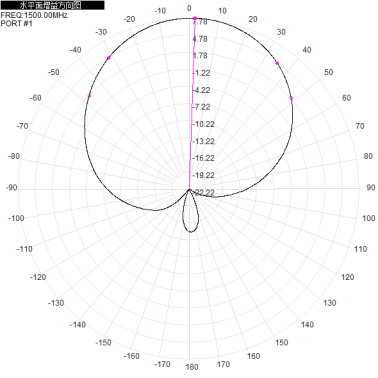

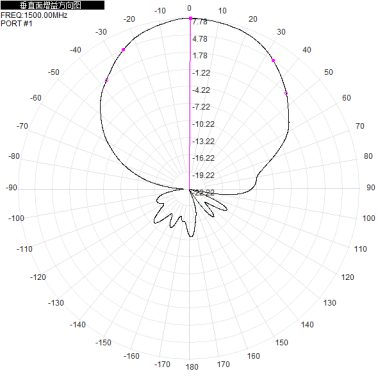

| 1500MHz |  |
 |
 |
