Beidou GPS unmanned aerial vehicle antenna 1.5G 1560-1620M 9dbi Circularly Polarized Directional Antenna φ184*10mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1560-1620MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 9dBi |
| Polarization | RHCP |
| Horizontal Beamwidth | 60-66° |
| Vertical Beamwidth | 58-60° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 086 L=30CM SMA-J |
| Dimension |
φ184*10mm |
| Radome material | Aluminum alloy |
| Weight | 0.115Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

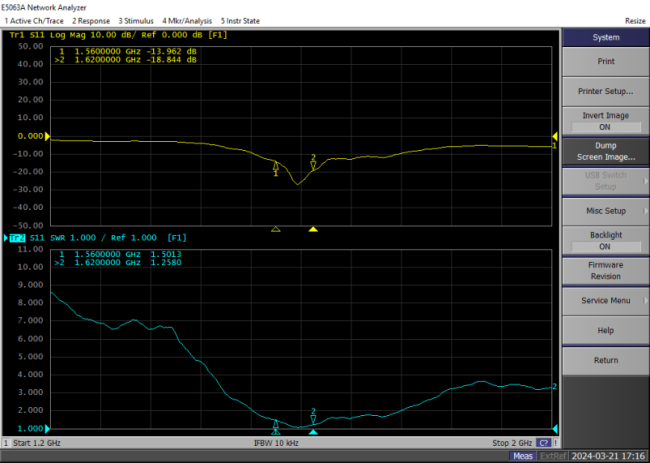

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
1560 |
9.2 |
|
1570 |
9.3 |
|
1580 |
9.6 |
|
1590 |
9.6 |
|
1600 |
9.7 |
|
1610 |
9.4 |
|
1620 |
9.1 |
|
1560 |
9.2 |
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

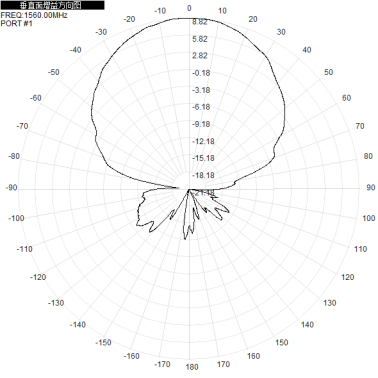

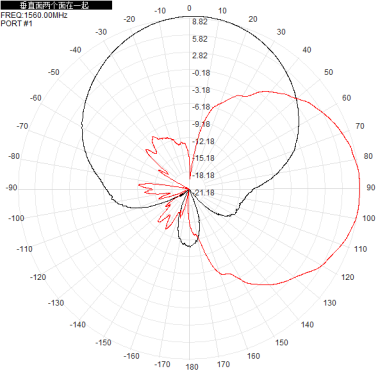

| 1560MHz |  |
 |
 |

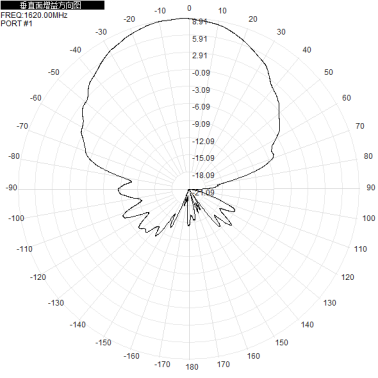

| 1590MHz |  |
 |
 |

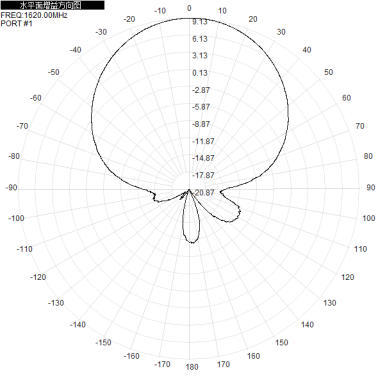

| 1620MHz |  |
 |
 |
