2xN-K 2.8G 2700-2900M 15dbi dual-polarization directional flat antenna 390x390x50mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 2700-2900MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 15dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 22±2° |
| Vertical Beamwidth | 22±2° |
| F/B | >25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension |
φ390*390*50mm |
| Radome material | ABS |
| Weight | 2.1Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1(H) |
|
Port 2(V) |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
2700 |
15.4 |
2700 |
15.7 |
|
|
2725 |
15.5 |
2725 |
15.8 |
|
|
2750 |
15.1 |
2750 |
15.7 |
|
|
2775 |
15.2 |
2775 |
15.7 |
|
|
2800 |
15.0 |
2800 |
15.4 |
|
|
2825 |
15.0 |
2825 |
15.6 |
|
|
2850 |
15.1 |
2850 |
15.7 |
|
|
2875 |
15.0 |
2875 |
15.6 |
|
|
2900 |
15.0 |
2900 |
15.2 |
|

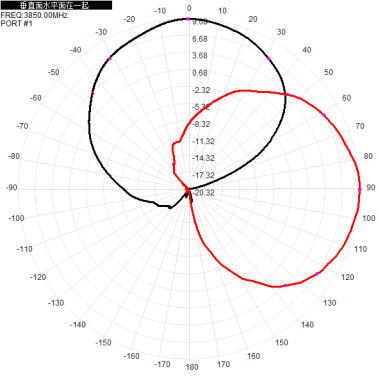

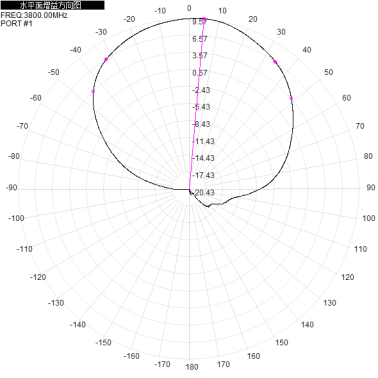

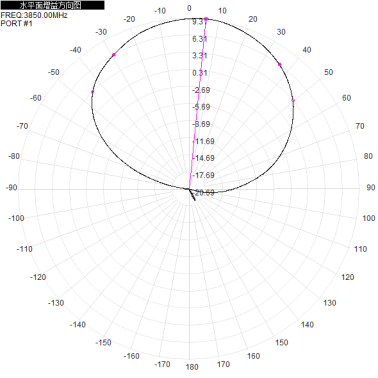

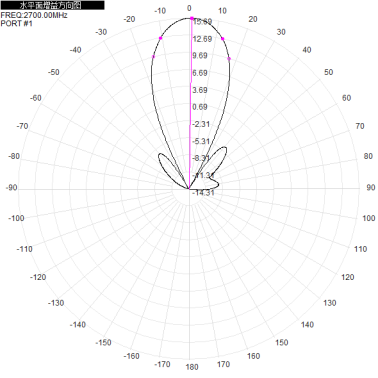

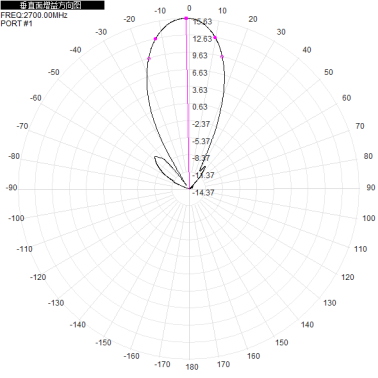

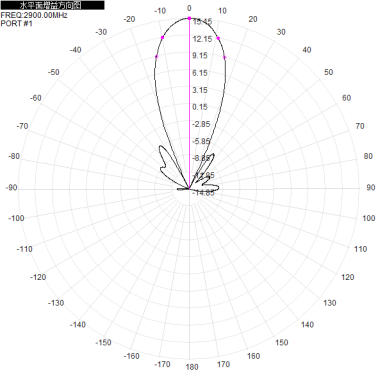

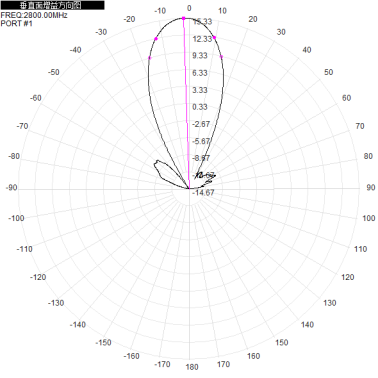

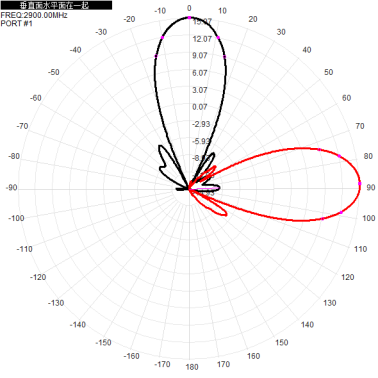

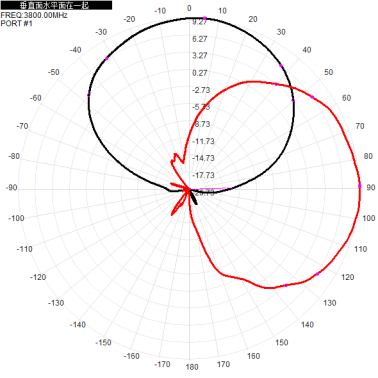

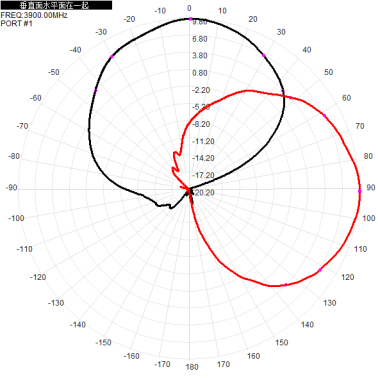

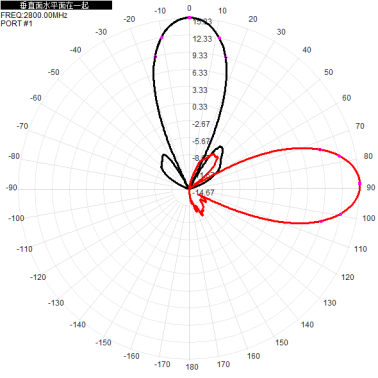

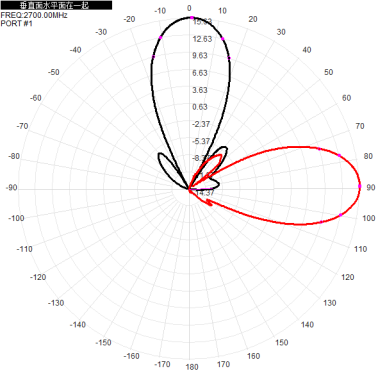

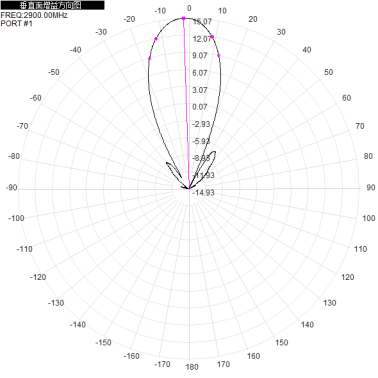

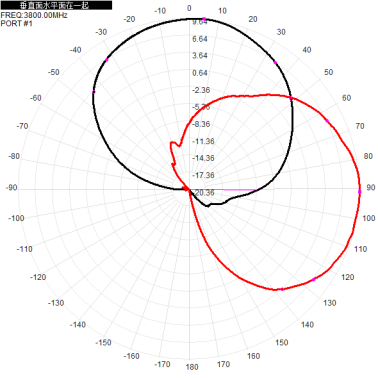

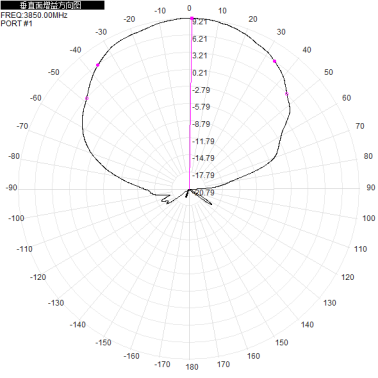

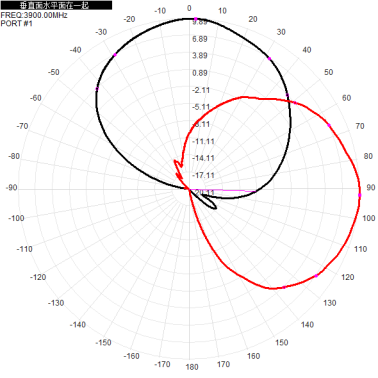

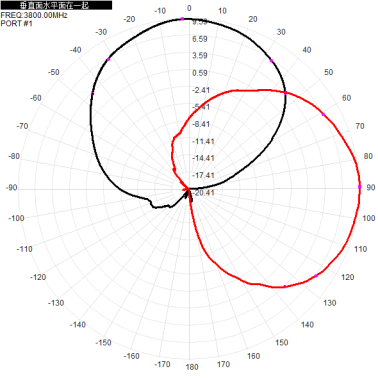

| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 2700MHz |  |
 |
 |
| 2800MHz |  |
 |
 |
| 2900MHz |  |
 |
 |
| Port2 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3800MHz |  |
 |
 |
| 3850MHz |  |
 |
 |
| 3900MHz |  |
 |
 |
| Port3 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3800MHz |  |
 |
 |
| 3850MHz |  |
 |
 |
| 3900MHz |  |
 |
 |
| Port4 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3800MHz |  |
 |
 |
| 3850MHz |  |
 |
 |
| 3900MHz |  |
 |
 |
