1.4G 1427-1447M 1300-1500M 1350-1550M Dual-polarization Unmanned Aerial Vehicle Directional Flat Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1427-1447MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 14dBi |
| Polarization | H+V |
| Horizontal Beamwidth | 35±5° |
| Vertical Beamwidth | 30±5° |
| F/B | >28dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N Female connector |
| Dimension | 390*390*50mm |
| Radome material | ABS |
| Weight | 1.7Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

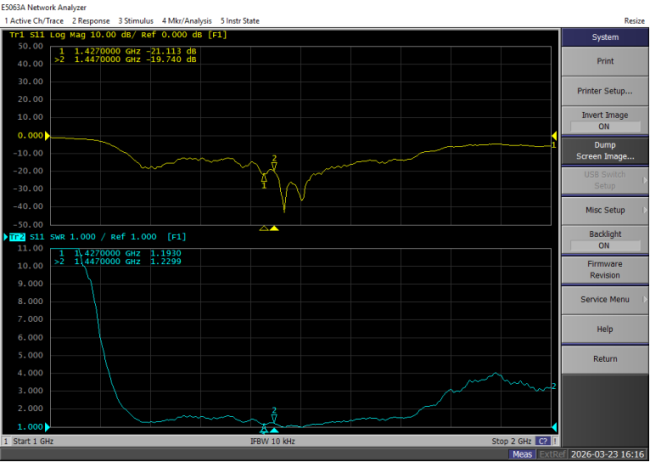

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1(H) |
|
Port 2(V) |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
1427 |
13.9 |
1427 |
13.8 |
|
|
1430 |
13.9 |
1430 |
13.9 |
|
|
1435 |
14.0 |
1435 |
14.1 |
|
|
1440 |
13.9 |
1440 |
14.2 |
|
|
1445 |
13.8 |
1445 |
14.1 |
|
|
1447 |
13.8 |
1447 |
14.1 |
|
2.3 Radiation Pattern

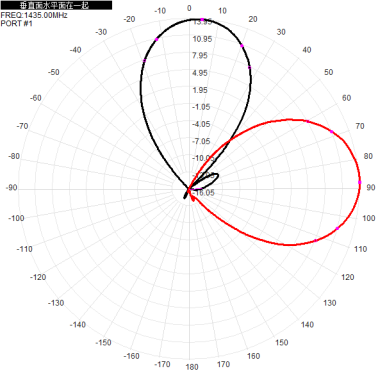

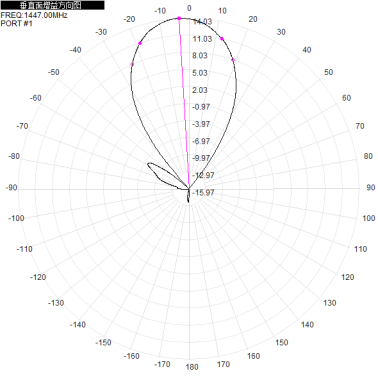

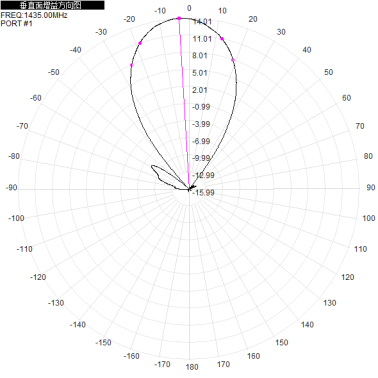

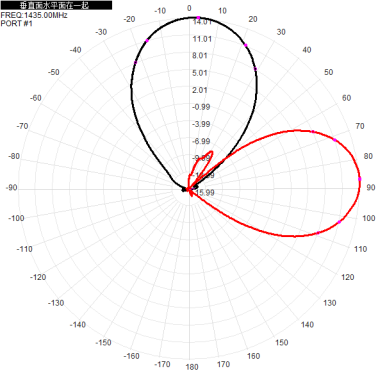

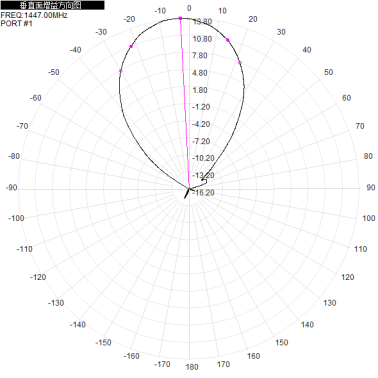

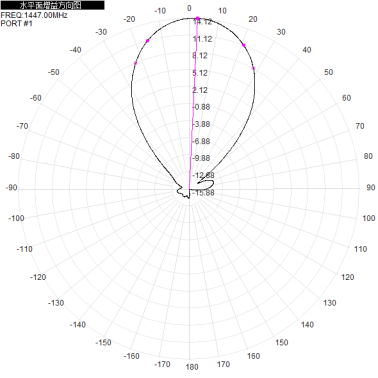

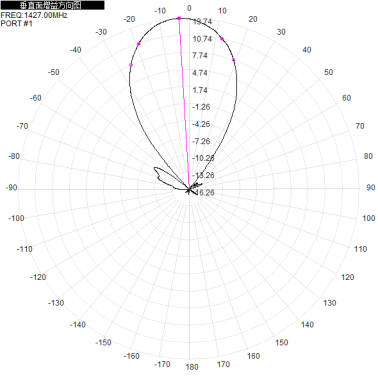

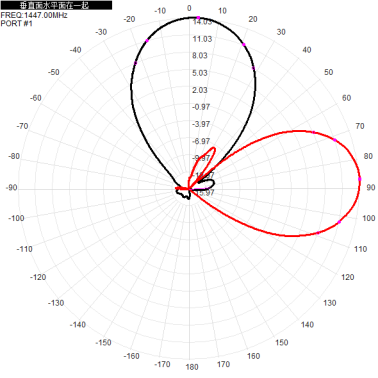

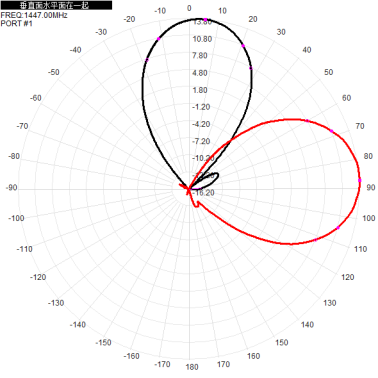

| Port1 -H | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1427MHz |  |
 |
 |
| 1435MHz |  |
 |
 |
| 1447MHz |  |
 |
 |
| Port2-V | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 1427MHz |  |
 |
|
| 1435MHz |  |
 |
 |
| 1447MHz |  |
 |
 |
