4G LTE 13dbi dual-polarized directional antenna 700-960/1710-2700M antenna 390x390x50mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 700-960/1710-2700MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 10/13dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 40-68/40-63° |
| Vertical Beamwidth | 40-57/14-25° |
| F/B | >15/25dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N Female connector |
| Dimension | 390*390*50mm |
| Radome material | ABS |
| Weight | 3.75Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR
2.2 Total Efficiency & Gain:
|
|
|
|
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
|
700 |
7.4 |
1700 |
12.4 |
|
|
720 |
7.4 |
1800 |
11.2 |
|
|
740 |
7.8 |
1900 |
12.9 |
|
|
760 |
7.3 |
2000 |
13.4 |
|
|
780 |
6.6 |
2100 |
13.8 |
|
|
800 |
9.9 |
2200 |
13.1 |
|
|
820 |
9.6 |
2300 |
13.2 |
|
|
840 |
9.4 |
2400 |
13.0 |
|
|
860 |
9.9 |
2500 |
13.0 |
|
|
880 |
10.4 |
2600 |
12.9 |
|
|
900 |
11.4 |
2700 |
11.6 |
|
|
920 |
11.8 |
|
|
|
|
940 |
11.1 |
|
|
|
|
960 |
10.6 |
|
|
|
|
|
|
|
|
|
2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |

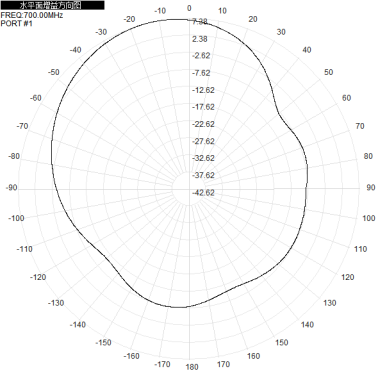

| 700MHz |  |
 |
 |

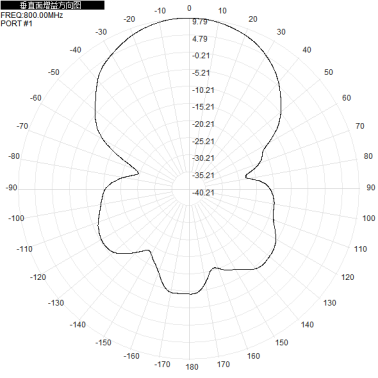

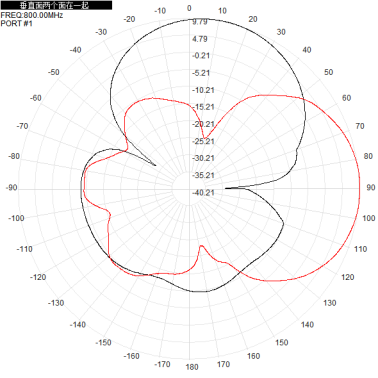

| 800MHz |  |
 |
 |
| 960MHz |  |
 |
 |

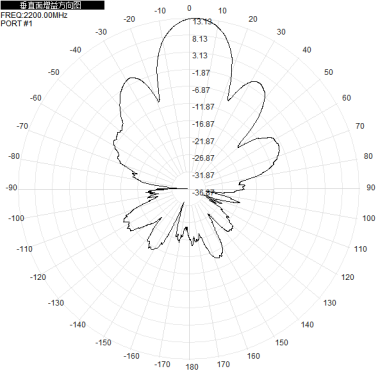

| 1700MHz |  |
 |
 |

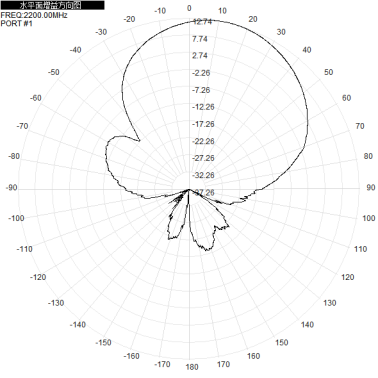

| 2200MHz |  |
 |
 |

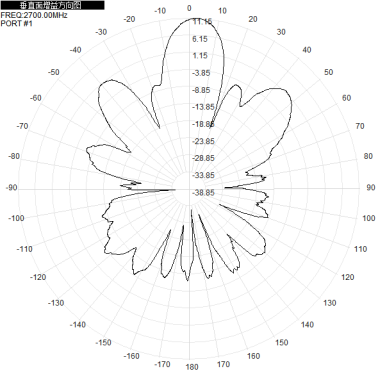

| 2700MHz |  |
 |
 |
