SMA-K UWB CH5 6-7G 6000-7000M 7dBi omnidirectional small mushroom head Ceiling-Directive Antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| S.W.R. | <2.0 |
| Antenna Gain | 7dBi |
| Polarization | Vertical |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 63-100° |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-K connector |
| Dimension | φ86*40mm |
| Radome material | ABS |
| Weight | 0.08Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity |
36.9m/s |
2. Antenna - S Parameter Test Data
2.1 VSWR

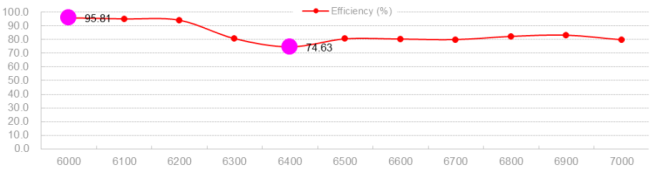

2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
6000 |
6100 |
6200 |
6300 |
6400 |
6500 |
6600 |
6700 |
6800 |
6900 |
7000 |
|
Gain (dBi) |
6.9 |
7.2 |
6.9 |
6.5 |
6.6 |
7.0 |
6.8 |
7.3 |
8.0 |
7.9 |
7.6 |
|
Efficiency (%) |
95.8 |
95.1 |
94.0 |
80.6 |
74.6 |
80.5 |
80.3 |
79.9 |
82.3 |
83.1 |
79.8 |
2.3 Radiation Pattern
| Port1 | Horizontal & Vertical | 2D-Horizontal | 2D- Vertical |

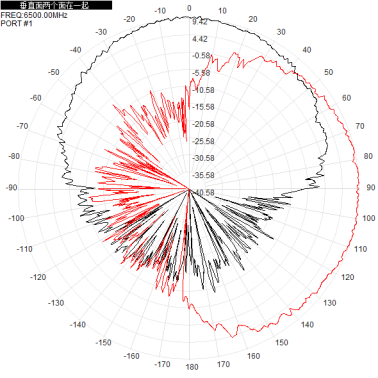

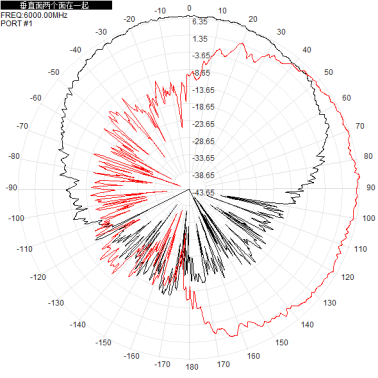

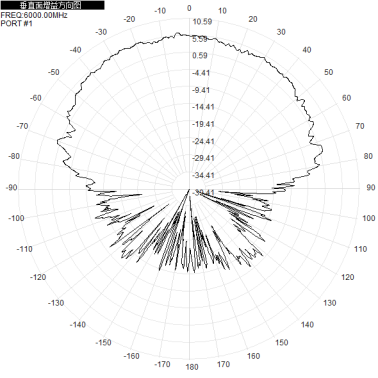

| 6000MHz |  |
 |
 |

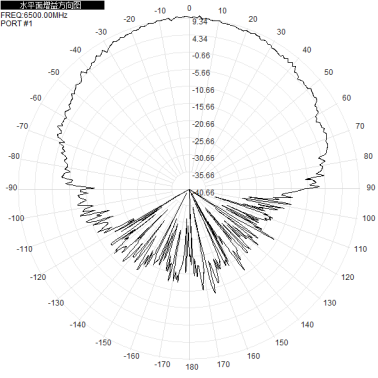

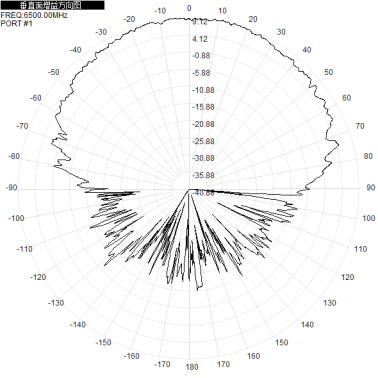

| 6500MHz |  |
 |
 |

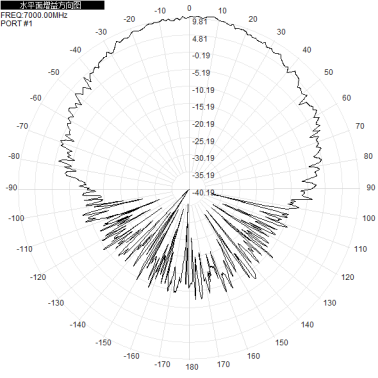

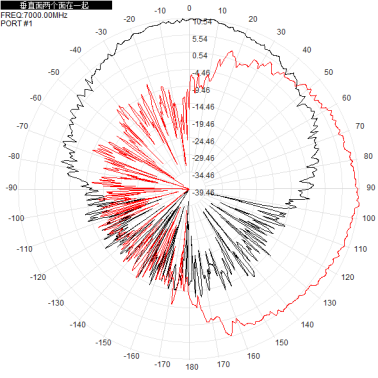

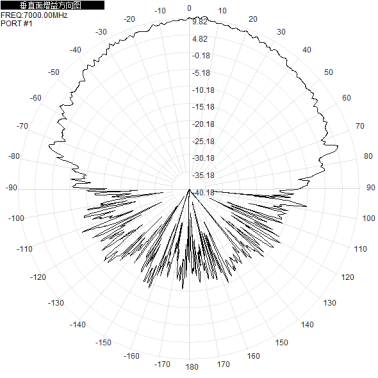

| 7000MHz |  |
 |
 |
