SMA male 3.7-4.2G 3700-4200MHz 2dbi UWB channel 2 omnidirectional Fiberglass waterproof Antenna 16x100mm
Price:
RMB
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3700-4200MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2.0 |
| Antenna Gain | 2dBi |
| Efficiency | ≈84% |
| Polarization | Linear |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 45±10° |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | SMA-J |
| Dimension | Φ16*100mm |
| Weight | 0.03Kg |
| Radome material | Fiberglass(White) |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |
| Rated Wind Velocity | 36.9m/s |
| Lighting Protection | DC Ground |
2. Antenna - S Parameter Test Data

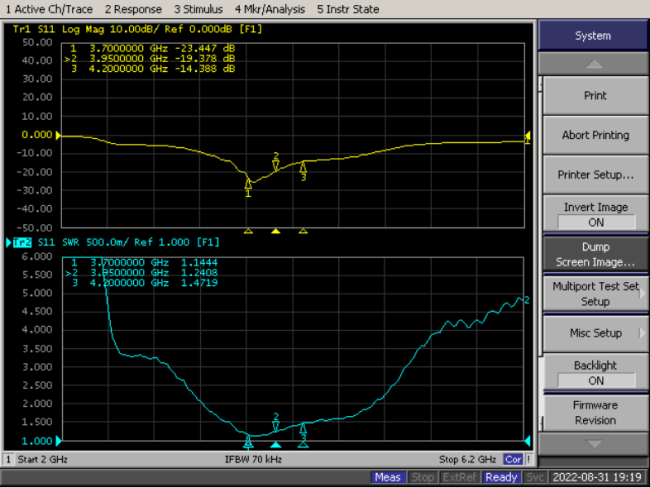

2.1 VSWR
|
Frequency(MHz) |
3700.0 |
3750.0 |
3800.0 |
3850.0 |
3900.0 |
3950.0 |
4000.0 |
4050.0 |
4100.0 |
4150.0 |
4200.0 |
|
Gain (dBi) |
2.84 |
2.86 |
3.14 |
3.26 |
3.22 |
3.26 |
3.14 |
3.24 |
2.83 |
2.75 |
2.56 |
|
Efficiency (%) |
81.12 |
80.35 |
86.40 |
91.07 |
88.76 |
88.74 |
85.04 |
87.61 |
81.38 |
80.31 |
78.68 |
2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 3700MHz |  |
 |
 |
| 3950MHz |  |
 |
 |
| 4200MHz |  |
 |
 |
