6000 - 8000M 6 - 8G omnidirectional outdoor fiberglass waterproof antenna 7dbi wideband antenna 16x250mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Lian Zhao
Product Description
| A. Electrical Characteristics | |
| Frequency | 6000-8000MHz |
| Impedance | 50 Ohm |
| S.W.R. | <2 |
| Gain | 8dBi |
| Efficiency | ≈75% |
| Horizontal Beamwidth | 360° |
| Polarization | Linear |
| Max Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | N - J |
| Dimension | Φ16*250mm |
| Weight | 0.077Kg |
| Radome material | Fiberglass |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 80 ˚C |
| Storage Temperature | - 40 ˚C ~ + 80 ˚C |

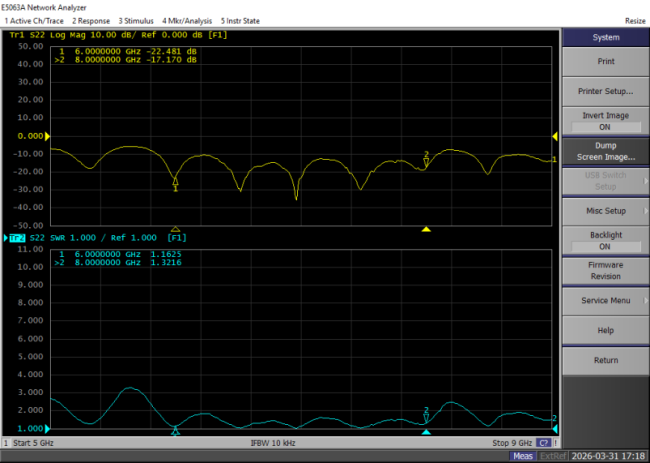

- Antenna - S Parameter Test Data
- VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
Efficiency(%) |
|
6000 |
7.3 |
80.8 |
|
6100 |
7.2 |
74.7 |
|
6200 |
6.9 |
73.0 |
|
6300 |
7.2 |
76.2 |
|
6400 |
7.8 |
83.0 |
|
6500 |
8.2 |
87.6 |
|
6600 |
7.7 |
77.9 |
|
6700 |
7.7 |
78.2 |
|
6800 |
7.6 |
76.3 |
|
6900 |
7.7 |
77.3 |
|
7000 |
7.6 |
75.4 |
|
7100 |
7.2 |
71.4 |
|
7200 |
7.0 |
72.5 |
|
7300 |
6.6 |
70.9 |
|
7400 |
6.8 |
76.9 |
|
7500 |
6.0 |
70.2 |
|
7600 |
5.7 |
67.4 |
|
7700 |
5.8 |
65.7 |
|
7800 |
5.6 |
63.9 |
|
7900 |
5.6 |
64.5 |
|
8000 |
5.6 |
66.0 |

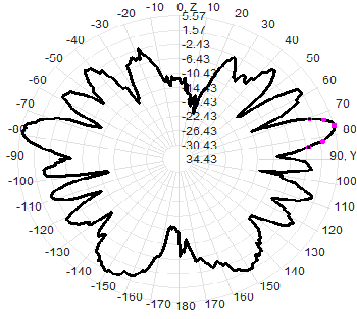

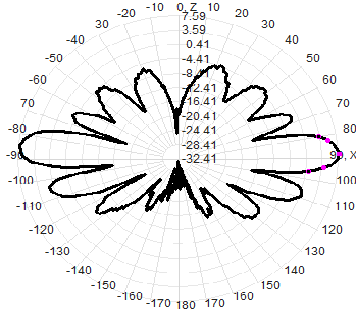

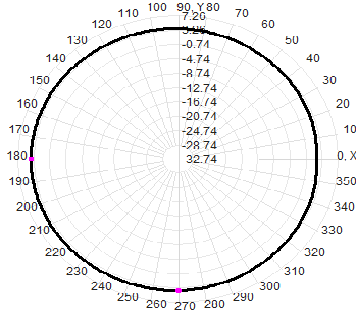

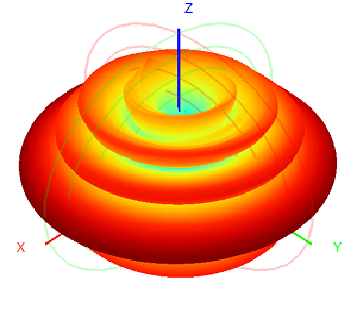

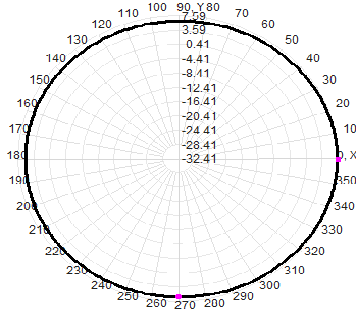

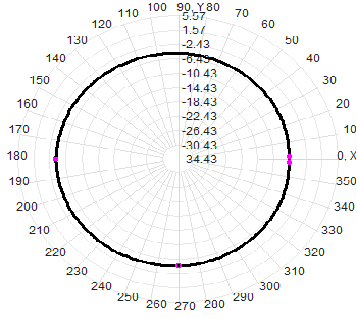

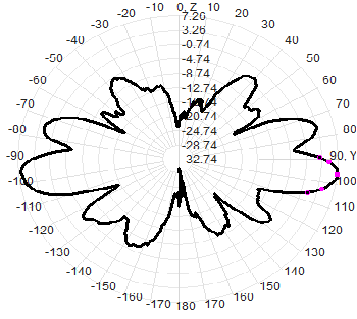

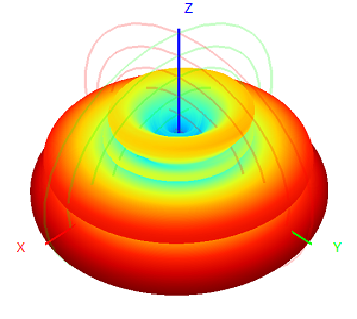

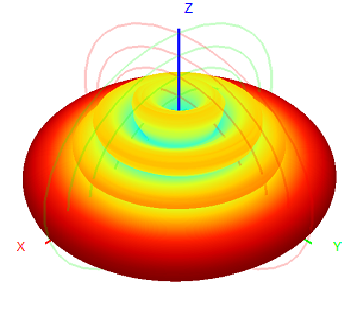

2.3 Radiation Pattern
| 3D | 2D-Horizontal | 2D-Vertical | |
| 6000MHz |  |
 |
 |
| 7000MHz |  |
 |
 |
| 8000MHz |  |
 |
 |
