Directional 5g Antenna 3300 - 3800 MHz, 3.3 - 3.8 GHz, 11dBi single-polarization directional antenna, base station antenna, 186 x 186 x 28 mm
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 3300-3800MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 11dBi |
| Polarization | V |
| Horizontal Beamwidth | 45±5° |
| Vertical Beamwidth | 40±5° |
| F/B | >27dB |
| Impedance | 50Ohm |
| Max. Power | 50W |
| B. Material & Mechanical Characteristics | |
| Connector Type | LMR240=2m, N-J |
| Dimension |
260*260*35mm |
| Radome material | ABS |
| Weight | 0.6Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

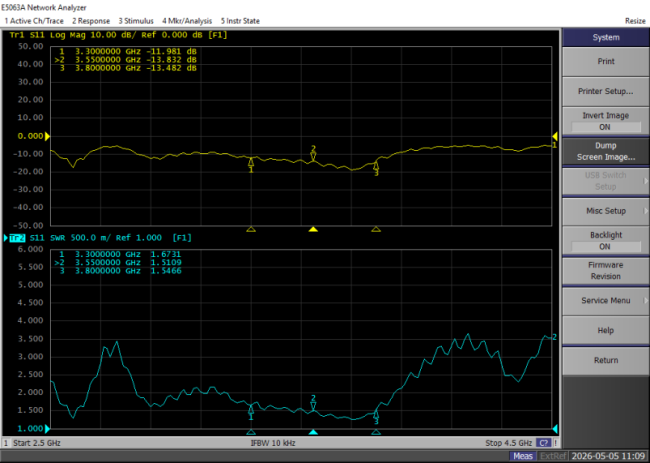

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Frequency(MHz) |
Gain(dBi) |
|
3300 |
10.0 |
|
3350 |
10.3 |
|
3400 |
10.4 |
|
3450 |
10.4 |
|
3500 |
10.0 |
|
3550 |
10.0 |
|
3600 |
10.9 |
|
3650 |
11.3 |
|
3700 |
11.5 |
|
3750 |
11.4 |
|
3800 |
11.6 |

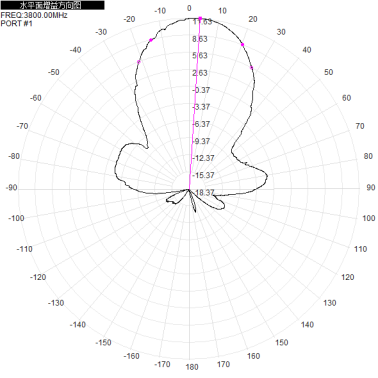

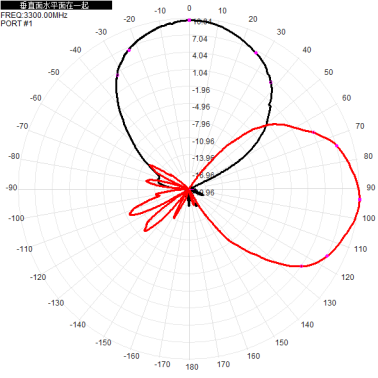

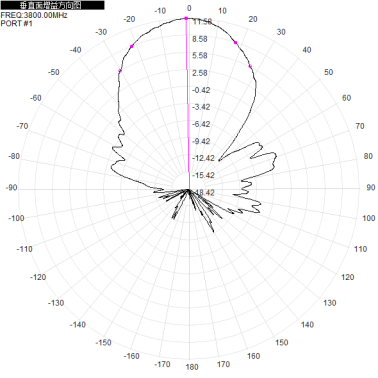

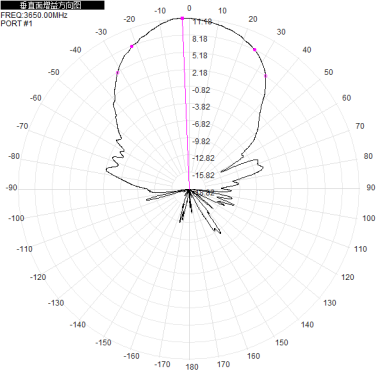

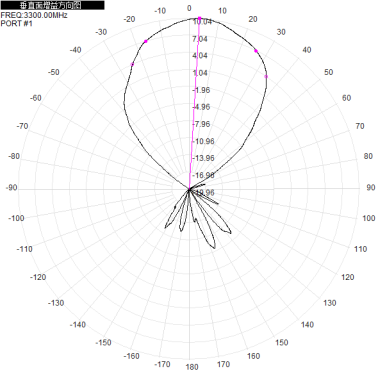

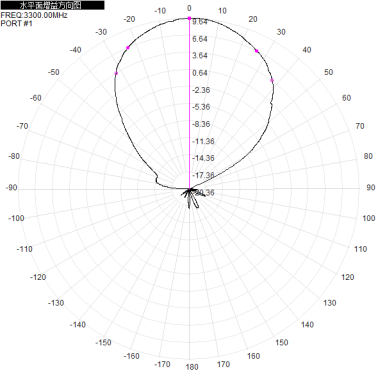

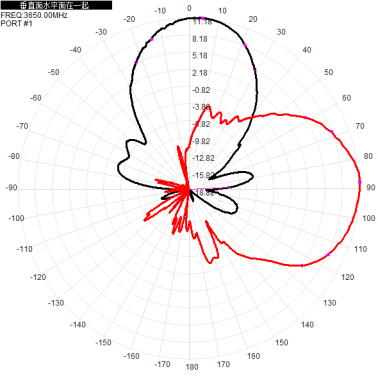

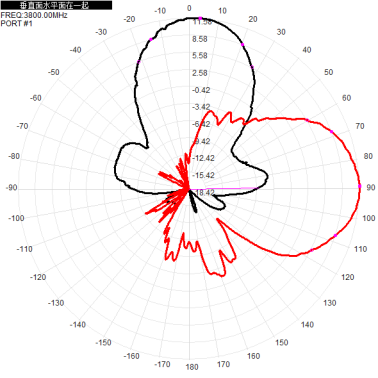

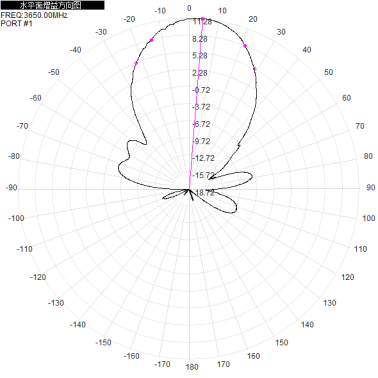

2.3 Radiation Pattern
| Port1 | 2D-Horizontal | 2D-Vertical | Horizontal & Vertical |
| 3300MHz |  |
 |
 |
| 3550MHz |  |
 |
 |
| 3800MHz |  |
 |
 |
