industrial directional antenna 4g 5G 1700-3800M dual-polarization directional antenna 1710-2690M 3300-3800M 18dBi base station sector plate antenna
Price:
Negotiable
MOQ:
10
Delivery Time:
15 days
Brand:
Leenz
Product Description
1. Specification
| A. Electrical Characteristics | |
| Frequency | 1710-3800MHz |
| S.W.R. | <= 2.0 |
| Antenna Gain | 18dBi |
| Polarization | ±45° |
| Horizontal Beamwidth | 30±5° |
| Vertical Beamwidth | 15±3° |
| F/B | >20dB |
| Impedance | 50Ohm |
| Max. Power | 100W |
| B. Material & Mechanical Characteristics | |
| Connector Type | 2*N-K |
| Dimension |
500-280*80mm |
| Radome material | UPVC |
| Weight | 4.5Kg |
| C. Environmental | |
| Operation Temperature | - 40 ˚C ~ + 85 ˚C |
| Storage Temperature | - 40 ˚C ~ + 85 ˚C |
| Operation Humidity | ＜95% |
| Rated Wind Velocity | 36.9m/s |
2. Antenna - S Parameter Test Data

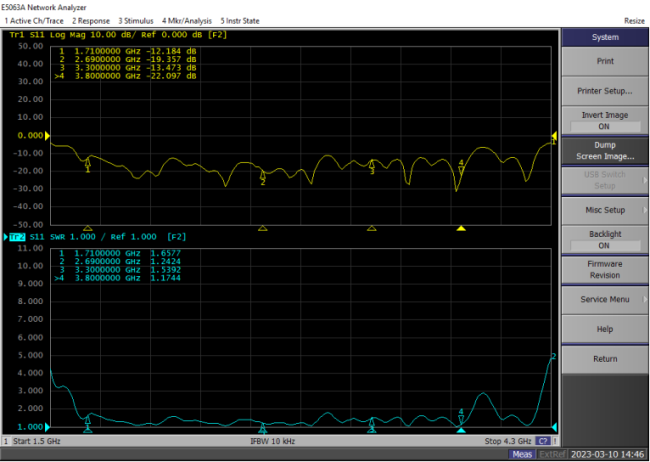

2.1 VSWR
2.2 Total Efficiency & Gain:
|
Port 1( +45°) |
Port 2( -45°) |
||
|
Frequency(MHz) |
Gain(dBi) |
Frequency(MHz) |
Gain(dBi) |
|
1700 |
15.5 |
1700 |
15.6 |
|
1800 |
15.8 |
1800 |
15.9 |
|
1900 |
16.0 |
1900 |
16.2 |
|
2000 |
16.0 |
2000 |
16.3 |
|
2100 |
16.7 |
2100 |
16.7 |
|
2200 |
17.0 |
2200 |
17.0 |
|
2300 |
17.0 |
2300 |
17.0 |
|
2400 |
16.7 |
2400 |
16.7 |
|
2500 |
16.7 |
2500 |
16.7 |
|
2600 |
16.7 |
2600 |
16.9 |
|
2700 |
17.0 |
2700 |
17.4 |
|
|
|
|
|
|
3300 |
17.2 |
3300 |
17.1 |
|
3350 |
17.6 |
3350 |
17.0 |
|
3400 |
17.8 |
3400 |
17.5 |
|
3450 |
17.5 |
3450 |
17.6 |
|
3500 |
17.9 |
3500 |
17.6 |
|
3550 |
18.2 |
3550 |
17.7 |
|
3600 |
18.1 |
3600 |
17.6 |
|
3650 |
18.3 |
3650 |
18.0 |
|
3700 |
18.8 |
3700 |
18.2 |
|
3750 |
18.6 |
3750 |
18.0 |
|
3800 |
18.4 |
3800 |
18.0 |
| 2D-Horizontal | 2D-Vertical | Horizontal & Vertical | |

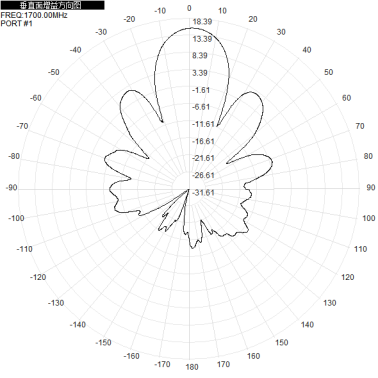

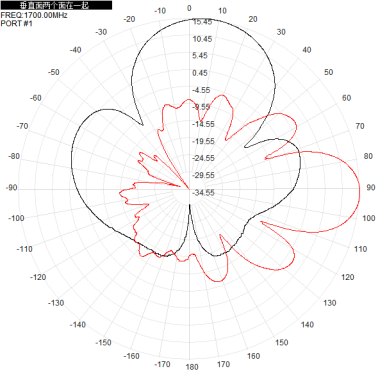

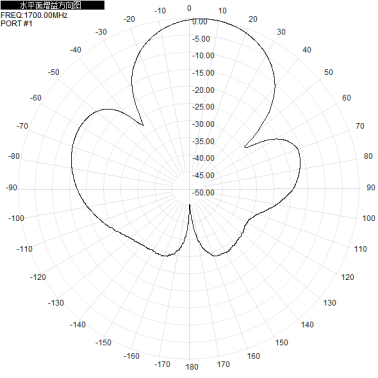

| 1700MHz |  |
 |
 |

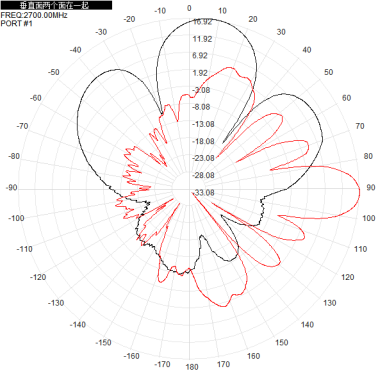

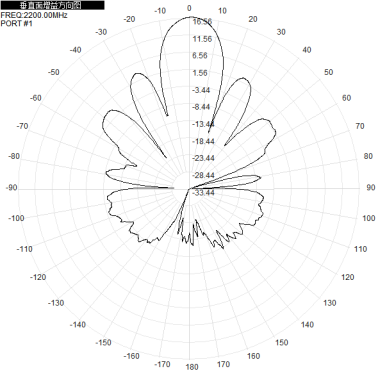

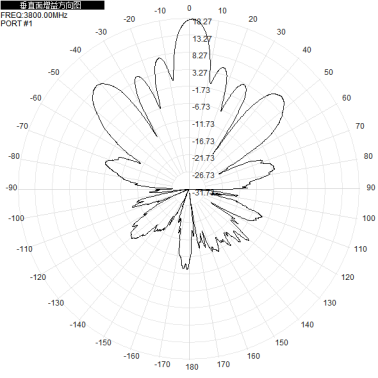

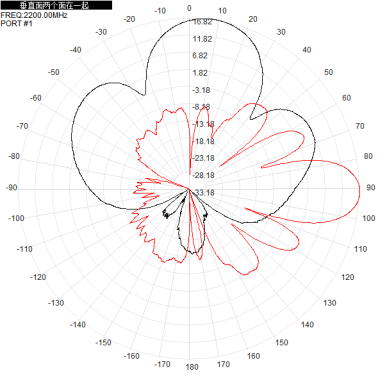

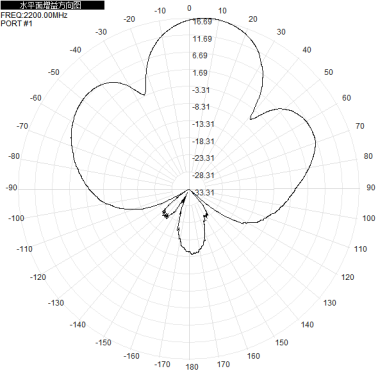

| 2200MHz |  |
 |
 |

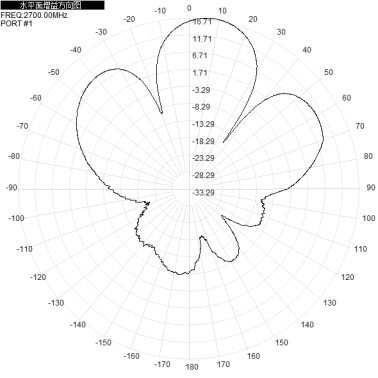

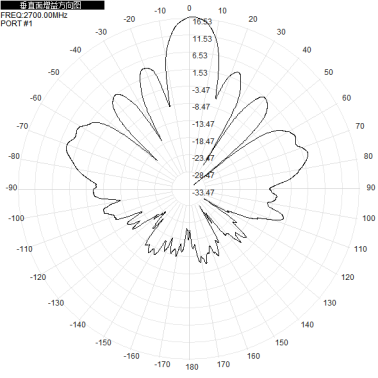

| 2700MHz |  |
 |
 |

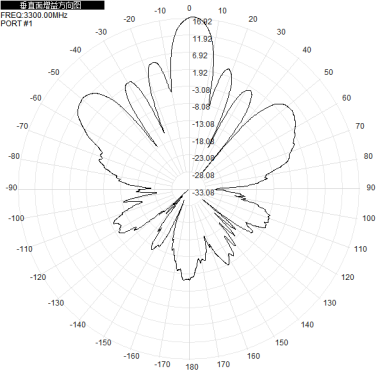

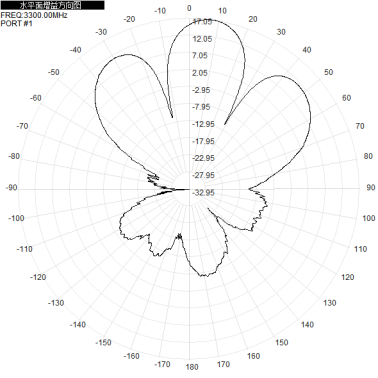

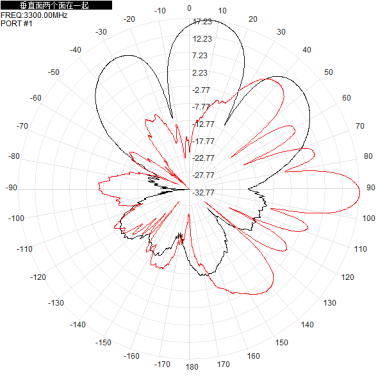

| 3300MHz |  |
 |
 |

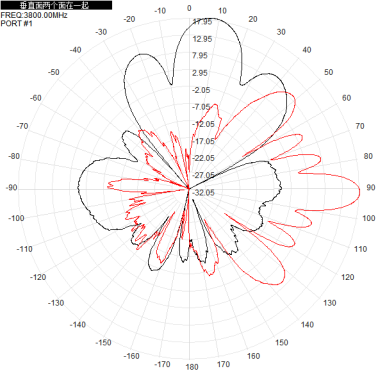

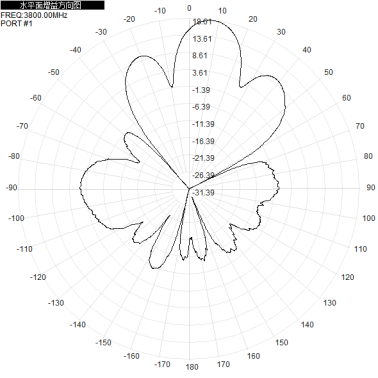

| 3800MHz |  |
 |
 |
