Direct Heating Output Capacity 15 Tons Waste Tire Pyrolysis Plant for Tire Recycling
15 Tons Waste Tire Pyrolysis Plant Waste Tire Recycling
Model of waste tire recycling pyrolysis plant:
| Model | Reactor size | Material | Handling capacity/batch | Seaworthy packing |
| LJ-8 | 2200*6000mm | Q245R /Q345R boiler steel ,16mm thickness | 5 tons | 2*40HQ |
| LJ-9 | 2200*6600mm | 8tons | ||
| LJ-10 | 2600*6600mm | 10tons | 1*40FR+1*40HQ | |
| LJ-12 | 2800*6600mm | Q245R/Q345R boiler steel ,18mm thickness | 12tons | |
| LJ-15 | 2800*7700mm | 15tons |
Working process of scrap tire recycling pyrolysis oil plant:
First, the scrap tyres are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.
End of Product from waste tire recycling oil pyrolysis plant:
| NO. | Name | Percentage | Usage |

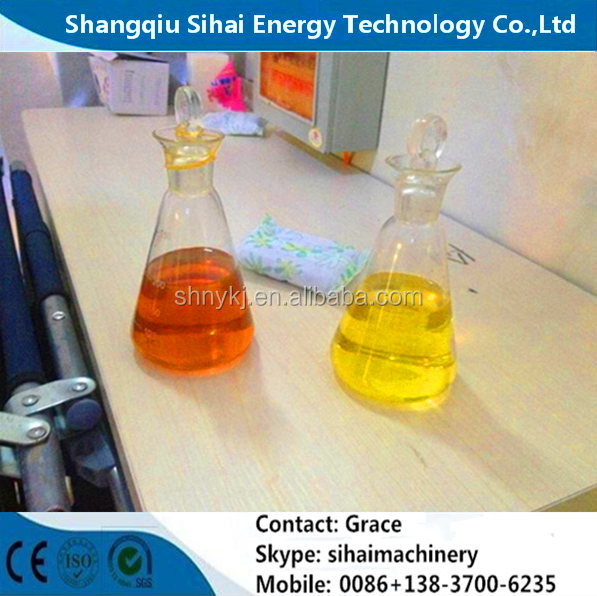

| 1 | Tire oil | 40%~45% | * can be sold directly as fuel. * can be refine to diesel and gasoline by oil distillation plant |
| 2 | Carbon black | 37% | * can be sold directly. * can be refined by carbon black processing machine to make it finer (1500mesh finer). *can be made into pellet by pellet machine |
| 3 | Steel wire | 13% | *can be sold directly as steel or iron. |
| 4 | Waste gas | 5% | * can be recycled to heat up the reactor |
Waste tire oil recycling machine Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate the 15 tons waste tire pyrolysis plant.
Oil recycle equipment Land requirement: 300sq meters(10m*30m)
Tire oil recycling machine Exporting Experience:
| America: | Brazil, Canada, Colombia, USA, |
| Middle East: | Dubai, Jordan, Saudi Arabia, Turkey |
| Europe: | Albania , Bosnia and Herzegovina |
| Asia: | Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar,Thailand |
| Africa: | Ghana, Mozambique, Zambia |
