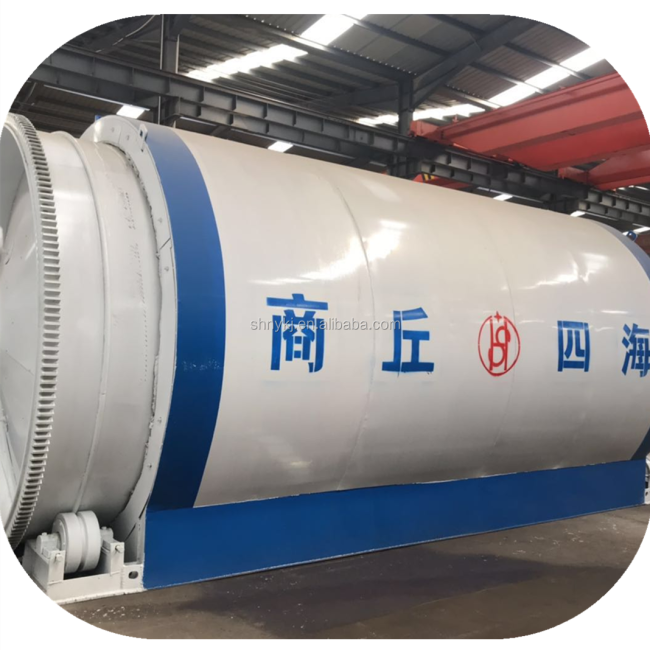

12 Tons Capacity Scrap Tire Pyrolysis Plant for Sustainable Resource Utilization
About us:
Shangqiu Sihai Energy Technology Co., Ltd. is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.
Our company covers an area of 37,000 square meters and has an experienced professional technical team which includes 2 senior engineers with more than 20year's experience, 16 technicians with more than 10 year's experience.
Model of 12 Tons Capacity Scrap Tire Pyrolysis Plant:
| Model | Reactor size | Material | Handling capacity/batch | Seaworthy packing |
| LJ-8 | 2200*6000mm | Q245R /Q345R boiler steel ,16mm thickness | 5 tons | 2*40HQ |
| LJ-9 | 2200*6600mm | 8tons | ||
| LJ-10 | 2600*6600mm | 10tons | 1*40FR+1*40HQ | |
| LJ-12 | 2800*6600mm | Q245R/Q345R boiler steel ,18mm thickness | 12tons | |
| LJ-15 | 2800*7700mm | 15tons |
Working process of Scrap Tire Pyrolysis Plant :
First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.
End of Product from Engineer Available Tire To Oil Pyrolysis Plant:
| NO. | Name | Percentage | Usage |
| 1 | Tyre oil | 40%~45% | * can be sold directly as fuel. * can be refine to diesel and gasoline by oil distillation plant |
| 2 | Carbon black | 37% | * can be sold directly. * can be refined by carbon black processing machine to make it finer (1500mesh finer). *can be made into pellet by pellet machine |
| 3 | Steel wire | 13% | *can be sold directly as steel or iron. |
| 4 | Waste gas | 5% | * can be recycled to heat up the reactor |
Tyre recycling machine Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate waste tire pyrolysis plant,and you will be in charge of the food, accommodation and round air tickets.
Tire to oil machine Land requirement: 300sq meters(10m*30m)
Tire oil recycling machine Exporting Experience:
| America: | Brazil, Canada, Colombia, USA, |
| Middle East: | Dubai, Jordan, Saudi Arabia, Turkey |
| Europe: | Albania , Bosnia and Herzegovina |
| Asia: | Afghanistan, India, Malaysia, Pakistan, Philippines, South Korea, Vietnam, Myanmar,Thailand |
| Africa: | Ghana, Mozambique, Zambia |
