Runlan Bag Filters For water filter machinery in With Filtration Grade Hepa Filter

Price Negotiable
Price: $440.00 - $510.00/sets
MOQ: 1
Delivery Time: Negotiable
Brand: Runlan
Product Description

Material :SS304 316L
Connection type:Flange
Seal material: BUNA, SILICONE, VITON
Seal type:O-type seal ring
Apply to a strainer:1# ,2# filter bag
Design pressure:1.25Mpa
Design flow:20-40m3/H
Surface disposal:Sandblast or polished
Mounting legs with adjustable height
Cover hold down filter bags for good 360`C sealing
Top-loading type of bag filter housing

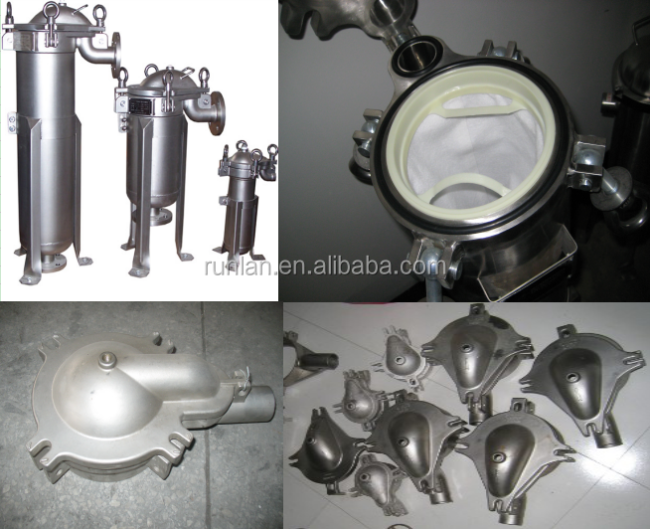

The cap is adopted wax pattern to casting molding ,it can widely apply in most kinds of industries and also can make of heat preservation jacket type according to the requirements

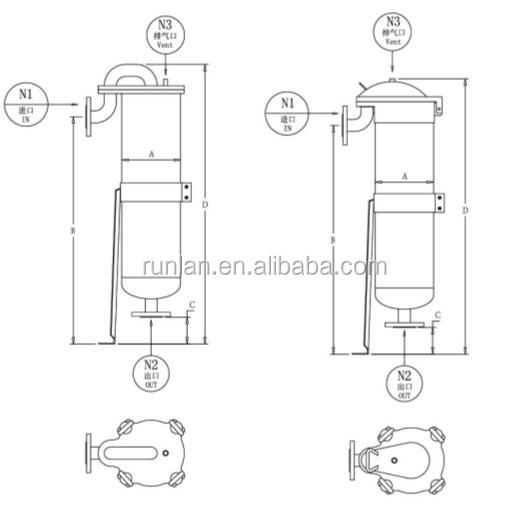

Model style
A(mm)
B(mm)
C(Max)(mm)
D(Max)(mm)
N1
N2
N3
Flow
Volu-me
RHDL-1P1S
φ219
390
250
820
DN50 flange
DN50 flange
Rc1/2''
screw thread
20m3/h
15L
RHDL-1P2S
φ219
770
350
1300
DN50 flange
DN50 flange
Rc1/2''
screw thread
40m3/h
32L
Certifications
Packing & Delivery

Packaging Details: Sealed in wooden carton , then on pallet
Delivery Time :10-15 days after receiving the payment

Related Products
Our Company

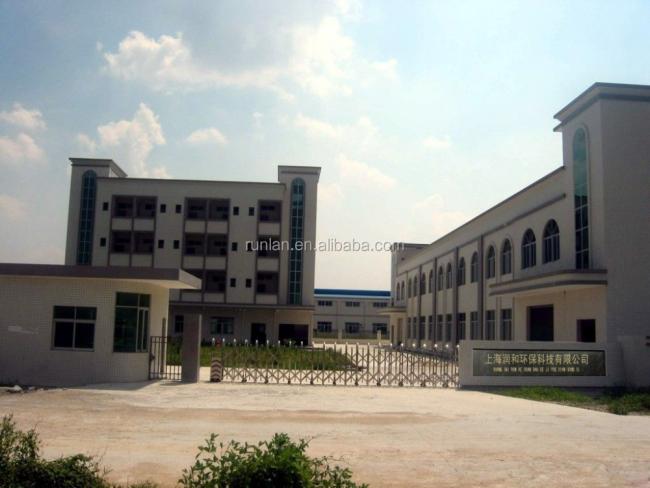

Shanghai Runlan filtration equipment Co.,Ltd. is professional engaged in research, design, manufacturer and sales of filltration equipment for the integration of Science & Technology entities of private joint-stock enterprise which founded in 2008.

Enterprise leading product are: bag filter, cartridge filter precision filter, Candle filter, automatic filter, filter press, diatomite filter, centrifuges, and other filtration equipment .For the convenience of the new and old customers, the company also can design and customized non-standard filtration equipment ,and with the most preferential prices to provide filter cloth, filter bag, filter cartridge, menbrance filtration and other consumables, etc.

FAQ

1.Are you a factory or a trading company ?
We are a factory , located in Shanghai, Welcome you to visit us!


2 .Do you have MOQ requirement ?
We do not have MOQ requirement , but for the benefit of our both sides , we hope the order could be more , so that the export charge will not occupy a big proportion, small order will increase our cost and result in higher price

3. Can I add logo to the products ?
Yes,of course , we cay type your required logo to the products

4. Are customized products accepted ?
We support any of your innovative idea and also provide you the filtering scheme for your reference

5 .How long is the delivery time?
The delivery time varies with the quantity of the order , we could promise thant we will try our hardest to finish all of your orders within the shortest time period, for more information , pls contact us directly .

6 .How is the quality of the filters and filter housing ?
We insist on providing our customers the highest quality filtration products ,and all of our replacement elements are manufactured right here in China, under the most rigorous quality standards , additionally , all of our filter elements carry six ISO.
