F-1300 F-1500 F-1600 Mud Pump Drilling Pump for Heavy-Duty Drilling Applications
Price:
10-1000
MOQ:
1
Delivery Time:
15 days
Product Description
Technical parameters:
Rated Power : 960 KW
Rated Power : 960 KW
Max. Stroke : 120 SPM
Stroke Length : 12 ″( 305mm )
Gear Type : Herringbone
Gear Ratio : 4.206:1
Lubrication : Forced & Splash
Valve Pot : API 7 #
Suction Inlet : 12"/304 mm
Discharge Inlet : 5 1/3" flange 5000 psi
Overall Size (Length* Width* Height) : 4426*3266*2682 mm
Weight (approx) : 24.7 Tons
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
Technical Features
A. Max. liner and piston size : 7" ( 180mm )
B. Max. flow : 737 GPM/46.54 L/S at 120 SPM with 7" (180 mm) liner
C. Liner size : Inch 7″, 6 3/4″ , 6 1/4″ , 6″, 5 1/2″, 5″
D. Crank shaft : Cast crank shaft
E. Max. discharge pressure : 5000Psi/34.5Mpa
F. Interchangeable valve box
G. Metal to metal liner lock system
H. Removable and reversible cross head and guides
I. Hi strength steel fabricated and stress relief power end
J. Power end lubrication system adopts splash and forced lubrication
K. Central lubrication manifold with steel tubing for feeding all main, eccentric and pinion bearings, pressurized lubrication for lower crosshead slide and longer cross head life
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
K. Central lubrication manifold with steel tubing for feeding all main, eccentric and pinion bearings, pressurized lubrication for lower crosshead slide and longer cross head life
Documents & Other Requirements:
1. 3 Sets of Operation & Maintenance Manual
2. Hydrostatic test report
3. Material test report of bearings, etc
4. Certificate of Quality Qualification
5. Certificate of API-7K
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service.
Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
The Company`s Main Products:
190 series gas engine parts,diesel engine parts,oil mud pump,turbocharger.
190 series diesel/gas engine and generator,marine diesel engine,coal gas generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
Quality Concept:
Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()

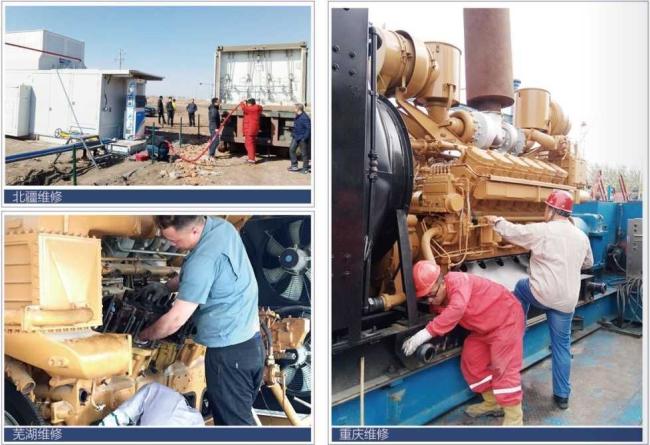

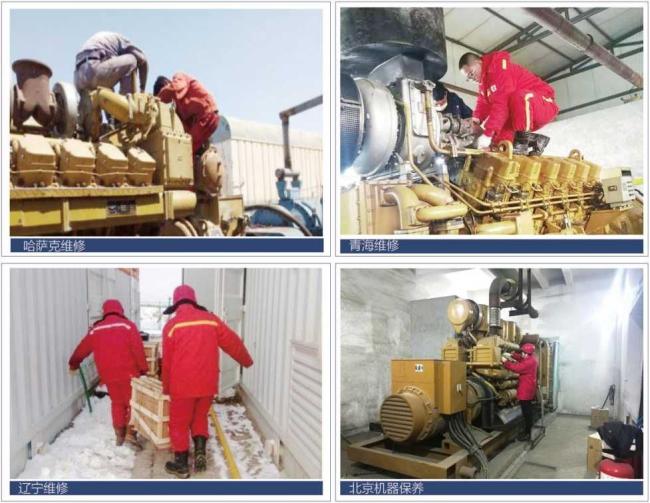

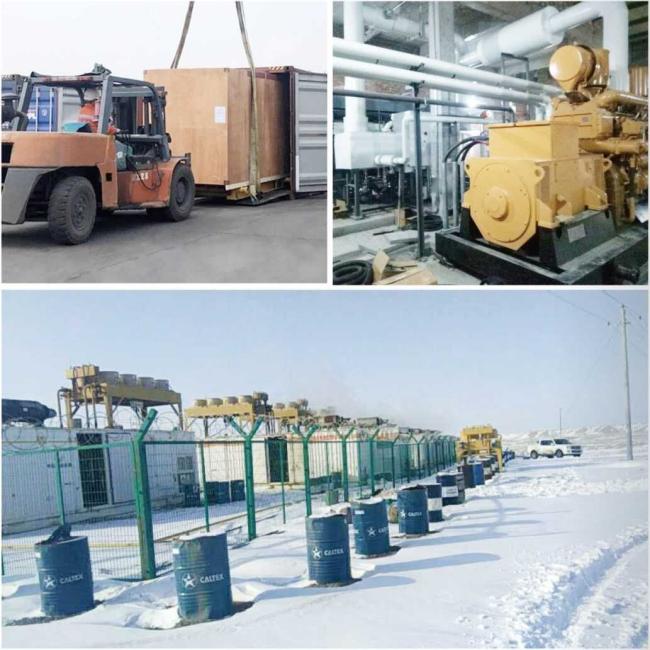

Overhaul Cases:
After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
![F-1300 F-1500 F-1600 Mud Pump Drilling Pump]()
Companies adhere to the purpose of "quality first,scientific management,customer first,integrity-based",which are in accordance with the "integrity,pragmatic,pioneering,innovative" spirit of enterprise,so as to meet the needs of users with first-class service. Warmly welcome friends from all walks of life to review,cooperate and create brilliance together!
The Company`s Main Products: 190 series gas engine parts,diesel engine parts,oil mud pump,turbocharger.
190 series diesel/gas engine and generator,marine diesel engine,coal gas generator.
190 series engine overhaul and maintenance.
OEM gas engine and oil engine.
The operation and maintenance of power station.
Quality Concept: Quality is the starting point for value,brand and dignity.Quality must meet standards,meet demand,and satisfy customers."Quality first,reputation first."is the company`s unremitting pursuit!
Overhaul Cases: After nearly ten years of exploration and accumulation, the company has formed a system of after-sales service system and complete technical support. At present, the company's maintenance service business has been extended to home and abroad.
