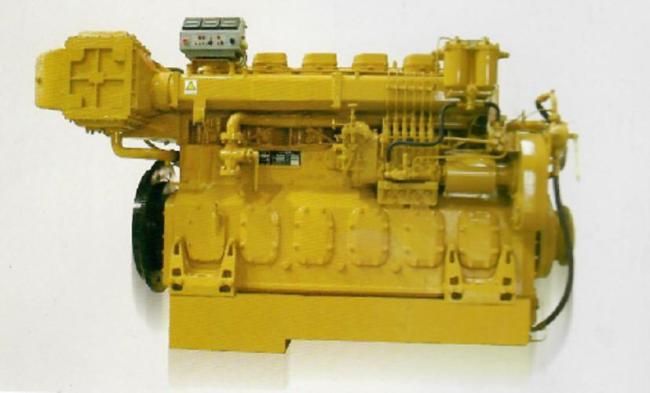

Piston Movement Reciprocating 4-Cylinder Marine Diesel Engines 4190 Jichai Chidong Engine
Price:
10-1000
MOQ:
1
Delivery Time:
15 days
Product Description
| Model | Rated Power(kw/hp) | Rated speed(r/min) | Specific fuel consumption(g/kw'h) | Specific oil consumption(g/kw'h) | Overall dimension L*B*H(mm) | Net weight(kg) |
| 4190ZLCZ-R | 330/450 | 1450 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC | 330/450 | 1450 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLCZ-1R | 270/360 | 1200 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC-1 | 270/360 | 1200 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLCZ-2R | 220/300 | 1000 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC-2 | 220/300 | 1000 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLCZ1-2R | 180/240 | 1000 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC1-2 | 180/240 | 1000 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLCZ-3R | 300/400 | 1300 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC-3 | 300/400 | 1300 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
| 4190ZLC1 | 330/450 | 1450 | ≤ 205 | ≤ 1.5 | 2290*1240*1750 | 3000 |
Main technical data
No. and arrangement of cylinders:4-cylinder,in-line
Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection
Bore:190mm
Stroke:210mm
Total displacement:23.82L
Compression ration:14:1
Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel)
Starting method:Air motor or electric motor
Lubricating method:Pressure and splash lubrication
