AC Three Phase Output Type A12V190 Jichai Diesel Engine for Water Cooling Drilling
Price:
10-1000
MOQ:
1
Delivery Time:
15 days
Product Description
| series 3000 diesel engines | |||||||
| Model | Rated Power(KW/hp) | Rated Speed(r/min) | Specific fuel consumption(g/kw.h) | Specific oil consumption(g/kw.h) | Overall Dimension L*B*H(mm) | Net weigh(KG) | |
| A12V190ZL | 1200/1500 | 1080/1500 | ≤205 | ≤1.0 | 2950*1980*2206 | 9300 | |
| A12V190PZL | 1200/1500 | 1080/1500 | ≤205 | ≤1.0 | 3980*2250*2739 | 11000 | |
| A12V190ZL-3 | 1100/1300 | 990/1300 | ≤205 | ≤1.0 | 2950*1980*2206 | 9300 | |
| A12V190PZL-3 | 1100/1300 | 990/1300 | ≤205 | ≤1.0 | 3980*2250*2739 | 11000 | |
| A12V190ZL-1 | 1000/1200 | 900/1200 | ≤205 | ≤1.0 | 2950*1980*2206 | 9300 | |
| A12V190PZL-1 | 1000/1200 | 900/1200 | ≤205 | ≤1.0 | 3980*2250*2739 | 11000 | |
| A12V190ZL-2 | 900/1000 | 810/1000 | ≤205 | ≤1.0 | 2950*1980*2206 | 9300 | |
| A12V190PZL-2 | 900/1000 | 810/1000 | ≤205 | ≤1.0 | 3980*2250*2739 | 11000 | |
| A8V190ZL | 900/1500 | 810/1500 | ≤205 | ≤1.4 | 2300*1774*2173 | 7200 | |
| A8V190PZL | 900/1500 | 810/1500 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-3 | 760/1300 | 684/1300 | ≤205 | ≤1.4 | 2300*1774*2173 | 7200 | |
| A8V190PZL-3 | 760/1300 | 684/1300 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-1 | 700/1200 | 630/1200 | ≤205 | ≤1.4 | 2300*1774*2173 | 720 | |
| A8V190PZL-1 | 700/1200 | 630/1200 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| A8V190ZL-2 | 600/1000 | 540/1000 | ≤205 | ≤1.4 | 2300*1774*2173 | 720 | |
| A8V190PZL-2 | 600/1000 | 540/1000 | ≤205 | ≤1.4 | 3380*2250*2738 | 9100 | |
| Main technical data | |||||||
| No. and arrangement of cylinders:12,60.Vee | |||||||
| Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection | |||||||
| Bore:190mm | |||||||
| Stroke:215mm | |||||||
| Total displacement:73.15(48.77)L | |||||||
| Compression ration:14.5:1 | |||||||
| Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) | |||||||
| Starting method:Air motor or electric motor | |||||||
| Lubricating method:Pressure and splash lubrication | |||||||
Jinan Guohua Green Power Equipment Co.,Ltd(JNGH),is a high-tech sales &service company of Jinan Diesel Engine Co., Ltd. Established in 2010,JNGH has formed a complete system in sales and after-sales of 190 series engine(jichai brand:6L190,8V190,12V190.16V190) after eight years experience.
Main business scope:
Early stage:Consultation,designation, supply and erection of engine-based power plants,including diesel generator,natural gas generator,coal gas generator and biogas generator.
Mid stage:Parts supply of jinan diesel engine(jichai/chidong brand).JNGH has two warehouses.One located in Jinan which supply the domestic north and south market.One located in Xinjiang province which supply the west market.Thus could delivery parts fast and guarantee the quality.
Later stage:JNGH also offer engine overhaul and maintenance service.With experienced engineer and professional skills,the problems could be easy solved.Not only the domestic China,Ghana,Kazakhstan,Vietnam and Myanmar also could see the trace of JNGH.

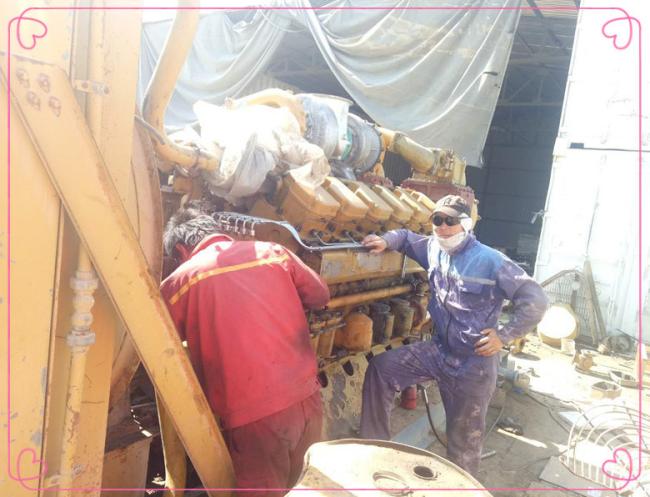

Repair engine with KZ specialists
