Gold Plating Contact USB 3.0 Connector 90° DIP Stainless Steel Receptacle
USB 3.0 Port 90° DIP Stainless Steel Receptacle Gold Plating Contact 48H Salt Spray Test High Reliable USB Receptacle
What is USB Receptacle?
The USB receptacle, often referred to as a USB port, acts as the entry point for connecting USB plugs to devices. Serving as the female connector, it accommodates the insertion of the male end of a USB cable or connector. These ports vary in shape and size to accommodate different types of USB connectors, including USB-A, USB-B, USB-C, or Micro USB. Beyond serving as a physical interface, the receptacle facilitates essential functions such as data transfer and power delivery between the device and any connected peripherals.
USB 3.0 Receptacle (USB connector, USB port)
USB 3.0 receptacle refers to the female connector or port designed to accept USB 3.0 plugs. USB 3.0 is a standard for USB (Universal Serial Bus) connections that offers faster data transfer speeds compared to its predecessors, such as USB 2.0. The receptacle typically has a blue color coding to distinguish it from USB 2.0 ports, indicating its compatibility with USB 3.0 devices.

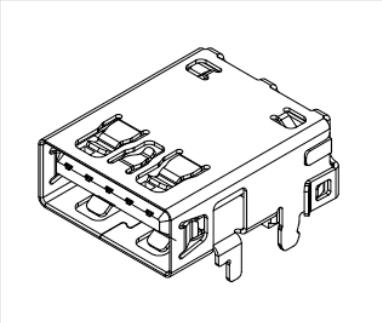

Image of U3-AY0901004-R USB3.0 Port / Receptacle
 |
 |
Housing Color: Blue
Technical Data
| Part Number | U3-AY0901004-R |
|
1. Electrical |
|
| Voltage Rating | 30V AC |
| Current Rating | 1.8 Amp for VBUS and GND contacts, 0.25A for other contacts |
| Contact Resistance | 30mΩ Max |
| Withstand Voltage | 500V AC for one minute at sea level |
| - | - |
|
2. Mechanical |
|
| Mating Force | 35N Max |
| Unmating Force | 10N Min |
| Life Cycle | 5000 |
|
3. Environmental |
|
| Operating Temperature | -40℃ to 85℃ |
| Salt Spray Test | 48H at 35℃ with 5%-salt-solution concentration |
|
4. Material |
|
| Housing | PA10T Blue |
| Contact | Copper Alloy T=0.20 |
| Shell | Stainless Steel T=0.30 |
| - | - |
|
5. Plating |
|
| Contact | Gold plating on contact area/matte tin 80u"plated on soldertail, all over 50u" nickel plating |
| Shell | All over 50u" min nickel plating |

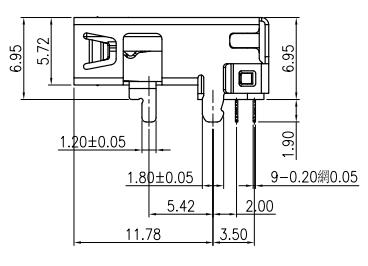

Dimension of U3-AY0901004-R USB 3.0 Female Connector
|
|
|
* All the data above for reference only, please contact Alinta Electronics to confirm more detailed and latest informaiton.
Alinta provides our customers with robust, reliable, and long-life-cycle USB 2.0 connectors. With a strong engineering and quality team, we are qualified to offer customized products at competitive prices. Please feel free to share your drawings or ideas at your convenience, let us realize into physical product.
For a dependable and customizable USB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
