DECI HSK25E 4KW Motor Spindle ATC 40000rmp Water Cooling Engraving Machine Tool Spindle Motor
This product is a metal cutting high speed electric spindle with a maximum speed of 40,000 rpm and a rated power of 4 kW. It is suitable for high speed and high precision milling, drilling and tapping of metal and non-metal materials.
DECI spindle Motor Feature
1) Imported bearings with good quality, long working life.
2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine.
3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose.
4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
DECI More Spindle is also available with best price, if needed, welcome contact us.
1.water cooling:300w,800w,1.2kw,1.5kw,2.2kw,3kw,4kw,3.2kw,4.5kw,5.5kw
2.air cooling: 800w,1.5kw,2.2kw.3.5kw,4.5kw,6kw,7.5kw,12kw
3.cooled by self: 400w
4.ATC spindle: cooled by water: 1.5kw,2.2kw,5.5kw,6kw,7.5kw
cooled by air: 8kw,9kw (same HSD)
5.sealing side spindle:350w,550w,700w,750w,1.1kw,1.8kw,2.2kw
Personalized customization: The company has strong research and development strength, flexible design, and can customize high-speed milling electric spindles with different functions, speed and precision according to customer needs.

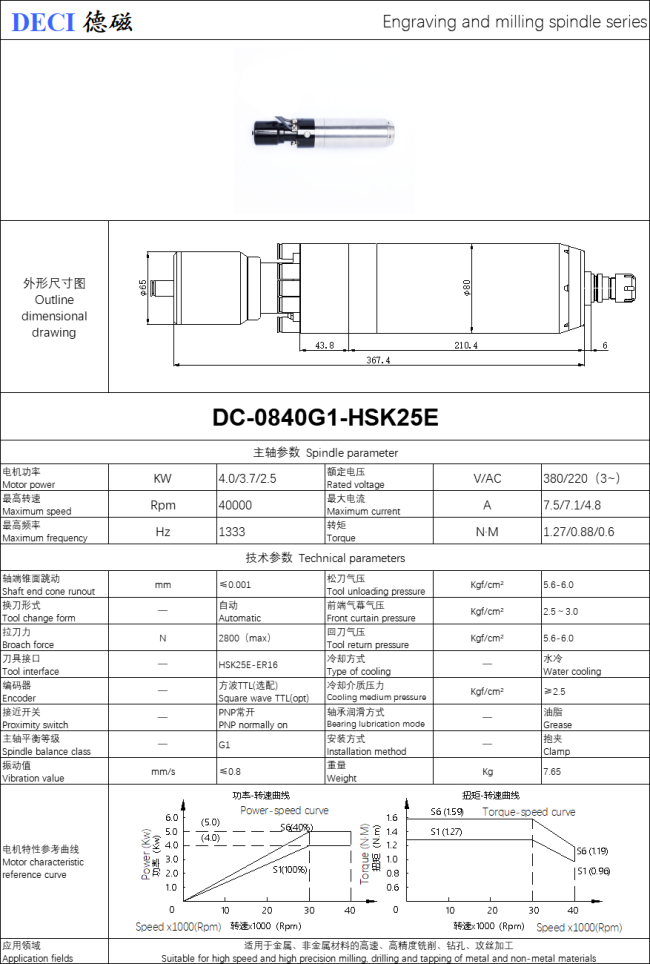

| DECI DC-0840K-HSK25EParameters Motor Power:4KW Rated voltage: 380v(3~) Max rotate speed :40000Rpm/min Max currency:7.5A Max Frequency:1333Hz Torque:1.19N.MSpecification Cone surface spring at shaft end: ≤0.001mmTooling Releasing Air curtain: 5.6-6.0 Kgf/cm² Tooling Exchange Method: ATCAir curtain pressure at front end: 2.5-3.0 Kgf/cm² Tooling Connection:HSK25E-ER16Cooling:water acooling optional Encoder:Sine-Cosine 1VPP(Optional)Coolant Pressure:2.5Kgf/cm² Approach Switch: PNP OnBearing Lubrication Method: GreaseBalance Level : G1Tooling Instalation Method:FLANGEVibration Value: ≤0.8Weight:7.65kg |
| Suitable for high speed, high precision milling, drilling and tapping of metal and non-metal materials. |
Q: Are you trading company or manufacturer ?
A:We are the manufacturer of DECI electric spindles.
Q: Do you have other spare parts for the spindle motor, like a grab, a VFD, a chuck?A
A:we have all the packages. We can get the engineer to program you.
Q: What's your delivery time?
A: It depends.If your order is standard and in stock,we can deliver immediately. If not,about 7 work days.
Q: Do you provide samples ? is it free or extra ?
A: Sorry, we don't offer samples.
Q: Which payment method and Express can you accept?
1:Payment: T/T,e-checking, Paypal, Western union, Alipay and etc.
2:Express: UPS, DHL, FEDEX, TNT, EMS and etc.
Q: How do you make our business long-term and good relationship?
A: 1. DECI keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
