TQSX Destoner Machine for Automatic Bean Millet Rice Destoning Machine Corn Grain Cleaner
Price:
$2,650.00/pieces >=1 pieces
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
STR
Product Description
Product Description
Hot sale STR TQSF100*2 rice mill paddy grain cleaner wheat cleaning machine rice destoner
TQSF series rice gravity destoner is mainly used to remove heavier impurities than the grains such as stones,glass, metal which are of approximately the same size and shape with grains.It can be used for rice paddy and other grains before going into rice husker machine or grain processing machine.It can also be used for separation of other products such as wheat flakes, peanuts and in the seed cleaning industry. The stones are separated automatically by air-pressure and vibration.The paddy moves in OPPOSITE direction of stone on the sieve to be separated effectively.There will be no paddy left in the separated stones.
Product Features
The discharged stone from primary sieves contains some grain. This mixed fraction is sent to the secondary sieve using blowing air from a built-in fan where stones are concentrated and discharged. This allows more efficient stone/grain separation.

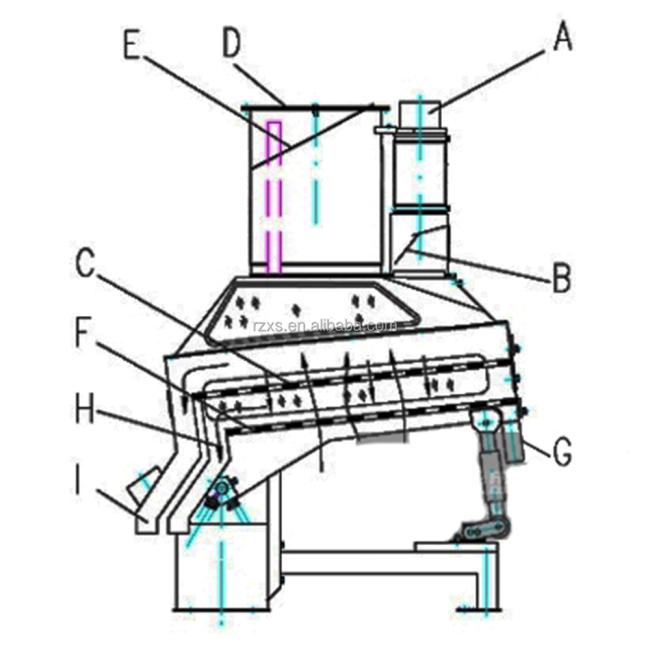

Working principle The sieve box which is normally equipped with two-layer sieves is supported by hollow rubber springs and is caused to oscillate by one or two vibrators depending on machine execution. The grain is spread by a feeder across the entire width of the machine, and then the product stream is stratified on the pre-separation screen according to its specific gravity by the oscillating motion of the screen and by the air flowing through the product from bottom to top. The light particles collect at the top, and the heavy ones including the stones at the bottom. The lower layer with the heavy particles flows upward and is fed to the final separation zone of the bottom de-stoning screen. Final separation of the stones from the grain is accomplished by a counter current of air. The stone-free product streams on the two screens float on cushions of air, flowing slowly toward the product outlet, and then are discharged through the squeezed rubber valves. To achieve the optimum degree of separation, the inclination of the screens, the air volume and final separation can be adjusted accordingly.
Details Images
Product Paramenters
Model | Screen Width | Capacity | Air Pressure (pa) | Volume (m3/h) | Power (kw) | Frequency (1/min) | Wt. | Size(L*W*H) (mm) |
(cm) | (t/h) | (kg) | ||||||
TQSF50 | 50 | 1.5~2 | <980 | 4000 | 0.25*2 | 960 | 230 | 1420*780*1800 |
TQSF60 | 60 | 2~3 | <980 | 4500 | 0.25*2 | 960 | 280 | 1450*876*1800 |
TQSF80 | 80 | 3~5 | <980 | 6000 | 0.25*2 | 960 | 340 | 1450*1046*1800 |
TQSF100 | 100 | 5~8 | <980 | 8000 | 0.37*2 | 960 | 400 | 1500*1246*1900 |
TQSF125 | 125 | 8~12 | <980 | 10200 | 0.45*2 | 960 | 500 | 1470*1496*1920 |
TQSF150 | 150 | 12~15 | <980 | 12000 | 0.50*2 | 960 | 600 | 1580*1746*1920 |
TQSF175 | 175 | 14-18 | <980 | 15000 | 0.75*2 | 960 | 750 | 1470*1990*1920 |
TQSF200 | 200 | 16-20 | <980 | 17000 | 0.75*2 | 960 | 1000 | 1470*2292*1920 |
TQSF250 | 250 | 20-22 | <980 | 20400 | 0.75*2 | 960 | 1050 | 1470*2835*1920 |
Recommend Products
TQSX rice destoner | TQLZ grain cleaner machine | SCY paddy pre cleaner | TCQY grains pre cleaning machine |
Packing & Delivery
Hot sale STR TQSF100*2 small model rice destoner sunflower seed scalper cleaner rice de-stoning machine
1,Standard export package or according to clients' requirement;
2,We cooperate with MAERSK,MSC,CMA,COSCO,and other big shipping company with long term cooperation contract,to ensure the safety of machines,to ensure the in time delivery,and to provide the 14~21 days freezer use.
Company Profile
Built in 1937,as the first manufacturer of rice mill machine in China,Rizhao Stream(STR) mainly produces Grain Cleaner Machine,Rice Mill,Mini Rice Mill,Rice Grader,Rice Polisher Machine,Rice Packing Machine,Grain Dryer,Grain Silo,Bucket Elevator, Rice/Corn/Grain/Herbs/Cereal Grinder/Flour Mill/Crushing Machine. STR is experienced in complete set of fully automatic rice milling equipment with daily output of 20-600 tons, Maize flour plant with daily output 5-500 tons,Wheat flour plant with daily output 5-600 tons...
Most workers have been working here for more than 20 years with rich experience.This is why we are better in quality than other suppliers. Furthermore, many Chinese standards in Rice Mill field were made by our company.
Certifications
As the century company,we got many certificates and national attention
Our brand of rice mill is 'Famous brand of china machinery industry 'and 'Shandong famous brand ',with a more perfect quality management system.Our company won 'two grade national enterprise 'honor in 1989; Won 'Shandong Quality Management Award ' in 1991; Passed ISO9000 in 1997; Passed 'CCC 'in 2006; Recently,won 'Top ten industrial enterprises all the region ' 'Top ten integrity taxpayers of RIZHAO City ', and so on.
