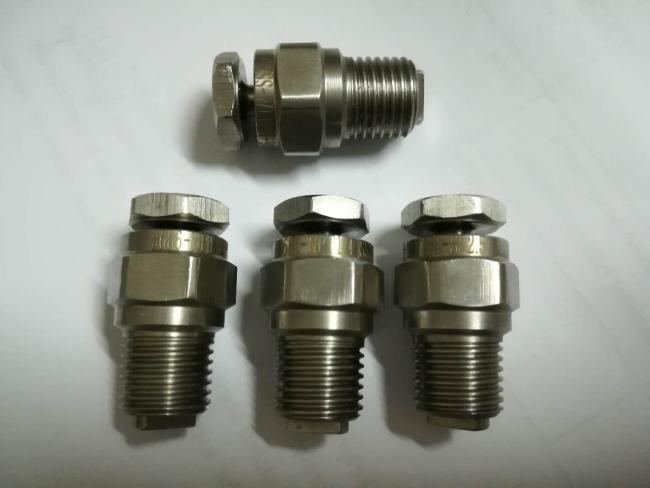

the deflect hollow cone spray nozzle from Eternal spray nozzle co.,ltd,

 features

1.The spray nozzle of deflection 8686 shape for hollow cone,has uniform destributed impact surface,
2.Deflection angle has three type :120.150,180 degrees and depends on the deflection cap

Application:

1. tank washing, gas washing, defoaming, desulfurize, pre-treatment, dust control, landscape ,agriculture irrigation ,humidify ,

   Nozzle entrance joint NPT or BSPT	flow       rate	Flow (liter/min)
   		0.3	1	2	3	4	6	7
   		bar	bar	bar	bar	bar	bar	bar
   	0.37	0.94	1.7	2.4	3	3.4	4.2	4.5
   1/8	0.5	1.2	2.3	3.2	4	4.6	5.6	6
   	0.75	1.9	3.4	4.8	5.9	6.8	8.4	9
   	1	2.5	4.6	6.5	7.9	9.1	11.2	12.1
   	1.5	3.7	6.8	9.7	11.8	13.7	16.8	18.1
   1/4	2	5	9.1	12.9	15.8	18.2	22	24
   	2.5	6.2	11.4	16.1	19.7	23	28	30
   	3	7.5	13.7	19.3	24	27	34	36
   	3.5	8.7	16	23	28	32	39	42
   	4	10	18.2	26	32	36	45	48
   3/8	4.5	11.2	21	29	36	41	50	54
   	5	12.5	23	32	39	46	56	60
