50m Length Agriculture Farm Industry PVC Layflat Hose for 2-10 Bar Request Sample
Agriculture Farm Industry PVC 2- 10 Bar Layflat Hose
1. Product Introduction:
| Size: | 3/4"-16" |
| Length: | 100M, 50M, 30M |
| Thickness: | 1mm to 3mm |
| Standard: | ISO9001:2008 |
| Color: | Blue, Orange, Yellow, Red, etc |
| Working Pressure: | 2-10bar |
| Working Temperature: | -5ºC to +65ºC |
| Features: | Durable, Light Weight with High Pressure |
| Transporting Medium: | Water, Oil, Liquid Fertilizer, Chemical Liquid |
Which was made of Dacron and coated with good quality plastic, has such advantages as Anti-freezing, anti-pressure, anti-corrosion properties, Easy to move and fold etc.
This kind hose has different specifications from 0.8"to 12" and working pressure from 0.2Mpa to0.6Mpa. The hoses are suitable for use on farms, camps, oilrigs, mines, and construction sites.
2. Product Feature:
1. Lightweight, tough, durable and long service life.
2. Rolls up flat is easy move, retrieval and handle.
3. Resistance to abrasion, corrosion, heat and aging.
4. Easy extend to longer length with hose coupling and clamp.
5. Non-toxic, tasteless, environmental protection.
3. Product Parameters:
| Part No. | Size | ID | W.P | WEIGHT/100M | ||||||
| HF Series | Inch | mm | BAR | KG | ||||||
| W.P | 4BAR | 6BAR | 8BAR | 10BAR | 4BAR | 6BAR | 8BAR | 10BAR | ||
| QX | 3/4" | 20 | / | 1.35 | 11 | |||||
| QX | 1" | 25 | 1.3 | 1.3 | 1.50 | 1.70 | 17 | 16 | 19 | 21 |
| QX | 1.25" | 32 | 1.2 | 1.2 | 1.40 | 1.5 | 21 | 19 | 21 | 23 |
| QX | 1.5" | 38 | 1.2 | 1.4 | 1.50 | 1.90 | 25 | 22.5 | 25 | 29 |
| QX | 2" | 51 | 1 | 1.35 | 1.50 | 2 | 35 | 30 | 35 | 42 |
| QX | 2.5" | 64 | 1.1 | 1.55 | 1.80 | 2.1 | 48 | 43 | 48 | 54 |
| QX | 3" | 76 | 1.1 | 1.5 | 2.20 | 2.5 | 58 | 50 | 65 | 80 |
| QX | 4" | 103 | 1.25 | 1.9 | 2.40 | 2.6 | 75 | 80 | 95 | 100 |
| QX | 5" | 127 | 1.35 | 2 | 2.50 | / | 100 | 108 | 120 | / |
| QX | 6" | 153 | 1.35 | 2.4 | 3.10 | / | 115 | 160 | 210 | / |
| QX | 8" | 203 | 2 | 2.6 | 3.10 | / | 190 | 220 | 280 | / |
| QX | 10" | 255 | 2.4 | / | / | 275 | / | / | ||
| QX | 12" | 305 | 2.35 | / | / | 400 | / | / | ||
| QX | 14" | 358 | 3 | |||||||
| QX | 16" | 408 | 3 | |||||||
4. Packaging & Shipping

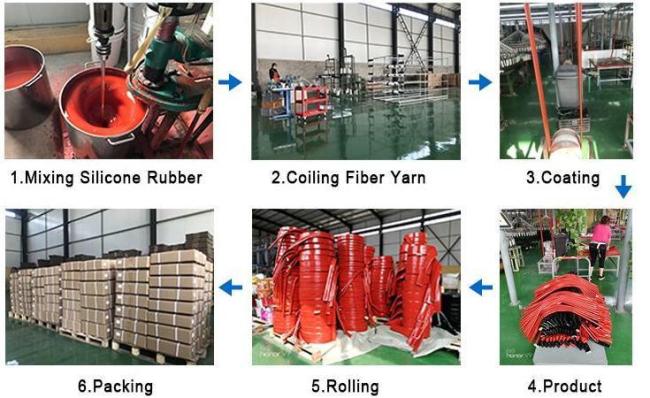

5. Product Process
6. Our Other Products:
7. Applications:
1. Discharge of Water
2. Irrigation
3. Construction Site
4. Pool & Spa
5. Fire Hose Using
8. Certifications:
9. Our Company:
Our Advantages:
(1) High pressure can stand: PN10, PN16, PN35, PN40; 150psi, 235psi etc, as customers' request;
(2) Well and high quality control, within 1% leakage;
(3) Environment friendly, non-toxic, good looking and long service life;
(4) Light weight, easy to handle and transport;
(5) Soft colors and excellent design, suitable for installation either exposed or hidden;
(6) Wonderful ability in chemical corrosion resistance;
(7) Easy and fast installation, making cost minimized;
(8) Widely used in building, irrigation, industry and swimming pool;
(9) Small order acceptable;
(10) Customer's design and logo are welcome.
Why Us?(1) We provide OEM service and submit Various styles, latest designs to our clients;
(2) We work with big customers in Southeast Asia, Africa, Middle East, North America, South America;
(3) According to the needs of customers in different regions, we match different quality and thickness valves with various styles, so that our customers are very competitive in the market!
(4) Our high quality PVC valve can be consistent with European and American national brand valves!
(5) We have great experience on providing high quality products and most professional service to clients about 10 years more!
(6) Customers choose our products, can mix and match our PVC pipe fittings, PVC butterfly valves, PP Fittings, irrigation products to buy together, so that the customer product line is more abundant, both quality and delivery time are guaranteed.
(7) We can flexible from China any port export! Welcome you inquiry us!
