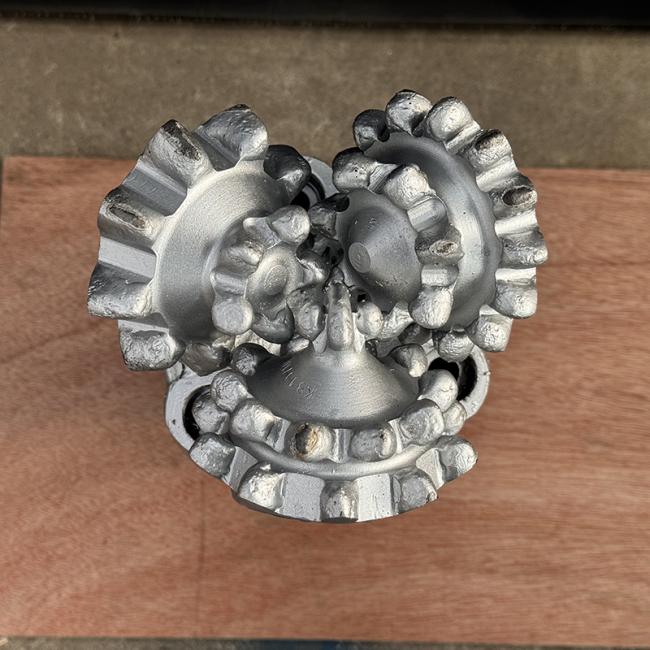

5 1/2 Inch Steel Tooth Tricone Drill Bit with Journal Bearing for Fast Drilling
PRODUCT INTRODUCE
During the drilling process, milling teeth break the rock through cutting action, which has the advantages of relatively low cost and maintaining a high mechanical drilling speed in medium hard formations. Inlaid teeth are hard alloy teeth embedded on the roller base. Hard alloy teeth have extremely high hardness and wear resistance, making them particularly suitable for use in hard formations such as granite, quartz sandstone, etc. The design of the inlaid teeth can effectively resist the grinding of rocks, extend the service life of the drill bit, and ensure stable and efficient operation under harsh geological conditions.
In addition, the surface of the roller cone is also equipped with retaining teeth to maintain the diameter of the borehole, prevent the aperture from shrinking during drilling, and ensure the quality and accuracy of the borehole.
|
PRODUCT SPECIFICATIONS |
||||||||
|
product name |
17 1/2 inch CR737 TCI tricone bit |
|||||||
|
model number |
CR737 |
|||||||
|
tooth type |
TCI |
|||||||
|
connection |
7 5/8" Reg PIN |
|||||||
|
bearing |
rubber sealed journal bearing or Metal sealed bearing |
|||||||
|
Nozzle |
three jet nozzles |
|||||||
|
application |
water well,oil well,HDD,exploration,etc |
|||||||
|
weight |
250kg |
|||||||
|
certificate |
SY/T5164,ISO9001:2008 |
|||||||
|
RECOMMENDED ROCK FORMATION |
||||||||
|
hard formation with high compressive strength and high abrasiveness,such as limestone,dolomite,sandstone and chert,etc. |
||||||||
|
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION |
||||||||
|
Type&IADC code |
417 |
437 |
447 |
517,527 |
537,547 |
617,627 |
637,647 |
737,837 |
|
WOB(KN/mm) |
0.35~0.90 |
0.35~0.95 |
0.35~1.00 |
0.35~1.05 |
0.35~1.05 |
0.35~1.05 |
0.70~1.20 |
0.70~1.20 |
|
RPM(r/min) |
140~70 |
140~60 |
140~60 |
120~50 |
110~40 |
80~40 |
70~40 |
70~40 |
Crossing Bit, a leading manufacturer of PDC bits and tricone bits in northern China, has exported its high-quality drill bits to more than 30 countries, demonstrating its strong market influence and exceptional product strength.
Crossing Drilling Tools has not only established a sterling reputation in the drilling, construction, HDD (horizontal directional drilling), exploration, water well, geothermal, mining, and oil & gas industries, but has also gained widespread recognition from customers for its exceptional product reliability and quality. We are committed to developing and producing a range of high-quality tools, including tricone bits, PDC bits, tricone cutters (single rollers), PDC reamers, drag bits, and HDD hole openers, to meet the diverse needs of our customers.
Our meticulously designed PDC bits are specifically optimized for directional drilling. With exceptional stability, durability, and "directional" friendliness, they are able to precisely maintain the bit's position in narrow and complex pay zones, ensuring smooth drilling operations.
This unique steerable bit technology, combined with high ROP (rate of penetration), sets Crossing Bit apart from the competition and establishes it as a leader in the industry.
