Home Wood Cutting Machine Electric Petrol Diesel engine Sawmill Multi Rip Saw Multi Blade
Price:
$1,500.00/sets 1-4 sets
MOQ:
1 PC
Delivery Time:
Negotiable
Brand:
Shandong Jierui Machinery Equipment Co.,Ltd.
Product Description
Product Paramenters
Sawmill parameters | JR59 | JR69 | JR80 | JR1000 | ||||
Max Log Cutting Dia(cm) | 60 | 70 | 92 | 105 | ||||
Max Log Cutting Dia(inch) | 24 | 28 | 36 | 41 | ||||
Max Log Cutting Length | 3.5m | 3.5m | 3.5m | 3.5m | ||||
Track Length | 4m | 4m | 4m | 4m | ||||
Motor Power | 5.5KW/18HP | 5.5KW/18HP | 7.5KW/18HP | 11KW/27HP | ||||
Engine power | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | Electricity/Gasoline/Diesel | ||||
Packing Size | 2.1m*1m*1.5m | 2.1m*1m*1.6m | 2.1m*1m*1.76m | 2.1m*1m*1.76m | ||||
Voltage Options | 220V/380V | 220V/380V | 220V/380V | 380V | ||||
Saw Wheel Diameter | 450mm | 450mm | 500mm | 500mm | ||||
Blade Size | 3300*35*0.9mm | 3500*35*0.9mm | 4200*35*0.9mm | 4200*35*0.9mm | ||||
Lifting | manual | manual | manual | manual | ||||
Walking | manual | manual | manual | manual | ||||
Safe cutting Speed | 6m/min | 6m/min | 4m/min | 4m/min | ||||
Dimension | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | 4m*2.5m*1.8m | ||||
Weight | 500kg | 550kg | 650kg | 770kg | ||||
Warranty | 1 year | 1 year | 1 year | 1 year | ||||
Color customization | Supported | Supported | Supported | Supported | ||||
Logo customization | Supported | Supported | Supported | Supported | ||||
Products Description
Product type

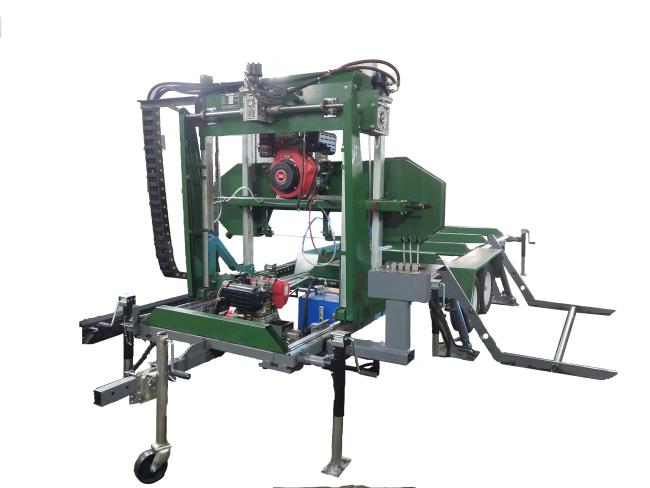

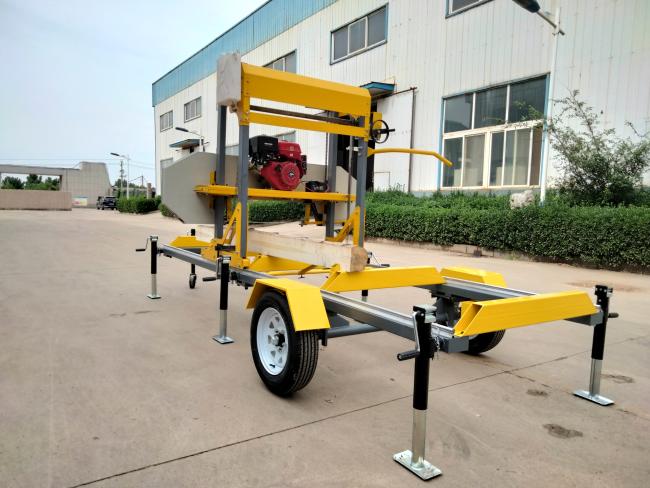

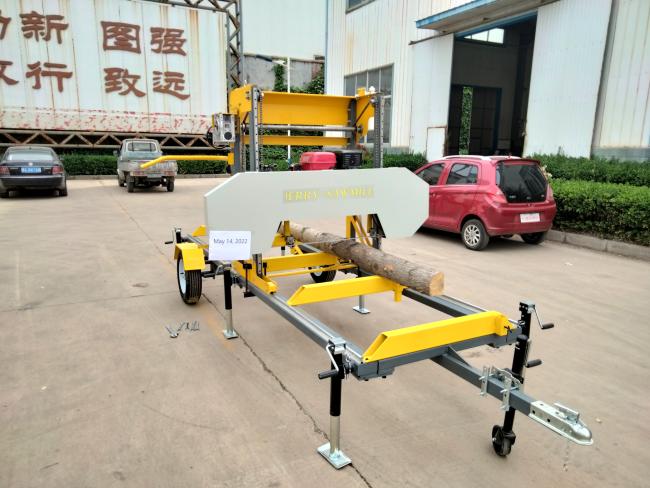

Portable sawmill with trailer
Portable sawmill

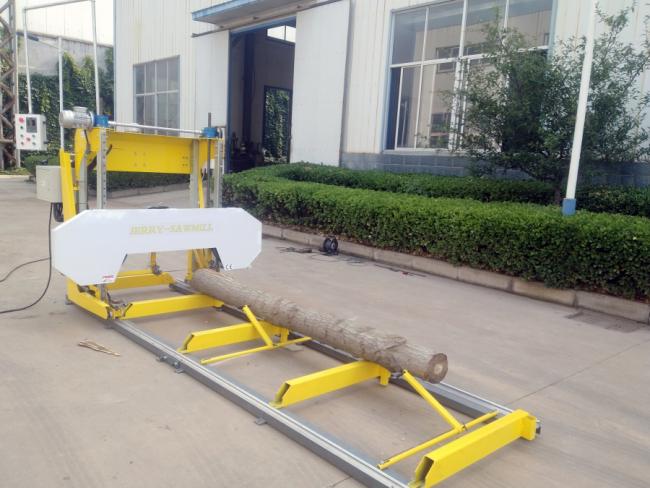

Electric automatic sawmill

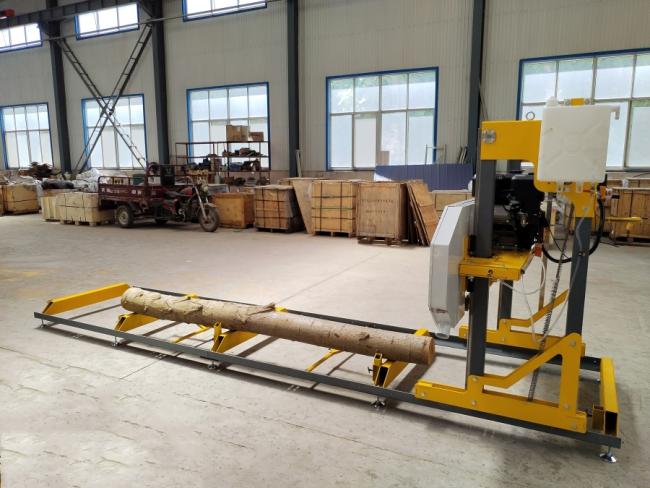

Gasoline/diesel powered sawmill
Super large sawmill

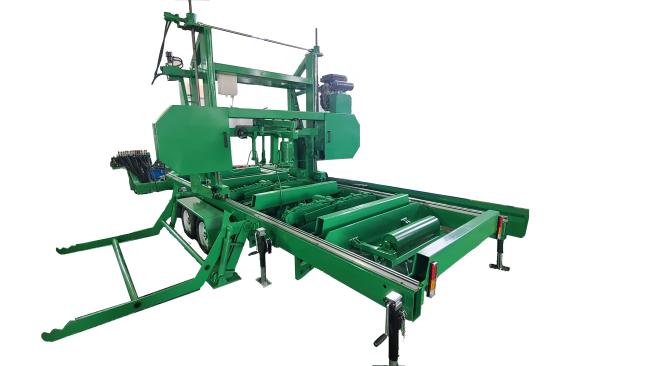

Hydraulic full-automatic sawmill
Application: It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.
Features: 1.Hand forward and backward,hand lifting. 2.Power is gasoline engine/electric motor 3.It is also effective for hardwood Advantage: 1.The machine has the features of high cutting speed,high cutting rate,high quality of final，Saw road thickness is only 0.9mm product,great reduce the lost of sawdust. 2.It is simple installation, easy operation, labor saving , and high productivity. 3.simple , safe and pro-environment; 4.Automatic control the timber thickness, high-precision. 5.High cutting efficiency, smooth; high flatness of the cutting plate; 6.The thickness of processing wood can be adjusted according to your need 7.There's no need the professional sawyers, the ordinary workers can operate the machine expertly.
From the details,where are our advantages

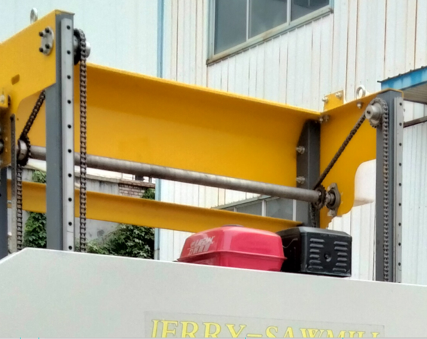

1.About lifting system
Other
1.Steel wire rope is used for lifting and easy to wear.
2.Sudden interruption will lead to great security risks.
3.Pulley design is adopted,the structure is complex,and there may be more fault points.
Our
1.Chain design,simple structure and convenient replacement.
2.The sprocket rotates with a bearing,which is not easy to wear,It has been tested without fault after 30000 times of lifting and lowering
Other
1.The lifting track adopts hard friction which is easy to wear, the lifting is not smooth,and it is easy to get stuck.
2.The saw wheel needs to be adjusted on four sides,which is difficult to adjust.
Our

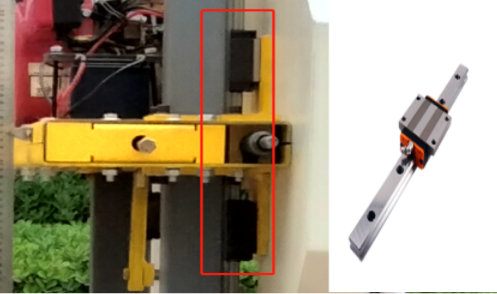

1.Saw blade lifting adopts linear guide rail with double sliding blocks.
2.Smooth lifting,no jamming,high sawing precision and better stability blade lifting adopts linear guide rail.
3.Single screw adjustment,simple and convenient.

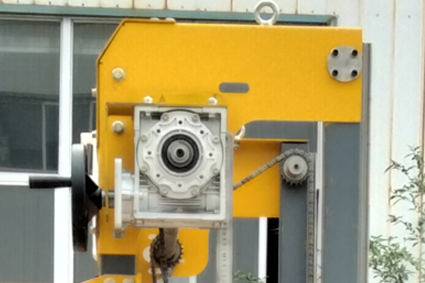

3.About lifting power unit
Other
1.Mechanical locking device through pin shaft and wheel disc.
2.The size adjustment is not accurate enough.
3.The pin shaff is easily worn due to vibration,resulting in potential safety hazards.
4.Lifting of sawing machine is more laborious.
Our
1.Adopt reducer for lifting ,stable and labor-saving.
2.The reducer is equipped with a locking system,which can be locked at any position.
3.Ensure more accurate sawing.
4.About walking track
Other
T-shaped guide rail is adopted , and the operation is not stable enough.
Our
The use of cylindrical linear guide rail makes the operation stable and the walking more labor-saving.

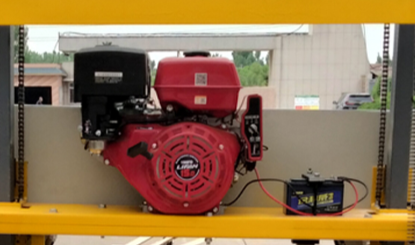

5.Aout engine starting
Other
1.Manual start only.
2.The engine support frame is thin and vibrates greatly.
Our
1.It can be started electrically or manually,with more choices and convenience.
2.The double-layer support frame can better reduce the vibration and has better stability when combined with the sliding block.

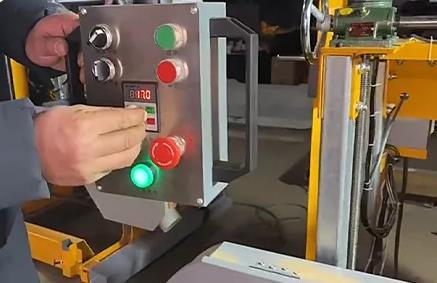

Open control button
The machine is working

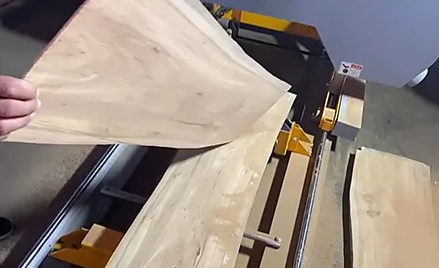

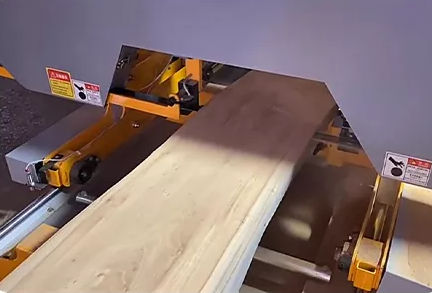

Processing completed
Our certificate
MEMBERSHIP CERTIFICATE
ENGINE CERTIFICATE
CE CERTIFICATE
Attend the exhibition
Ancillary product
ShanDong JieRui Machinery Equipment Co.,Ltd. Is One Of The World's Leading Man-Ufacturers Of High Quality Sawmills. Established In 2008, The Company Has Always Been Committed To The Production And R&D Of Sawmills And Sincerely Serves 13 000 Enterprises. Our Products Have Been Exported To 80 Countries In The World. Our Companycurrently Covers a Largenumber Of Product Lines Including Log Sawing Equipment, Solid Wood Furniture Pro-Cessing Equipment, And Wood Shredding Equipment,Saw Band Production Line.The Standardization Of Quality Management And Service, It Has Won The Favor Of Many Customers As The World's Best Supplier Of Sawmills, The Company Is Aiming To Continuously Strengthen Its Own Technological Innovation, Accelerate The R&D Of Sawmill Machinery, Andstrive To Provide Each Partner With The Best Combination Of Sawmill Production Lines. As The World's Best Supplier Of Sawmills, The Company Is Aiming To Continuously Strengthen Its Own Technological Innovation, Accelerate The R&D Of Sawmill Machinery, And Strive To Provide Each Partner With The Best Combination Of Sawmill Production Lines. Based On The Service Philosophy Of "Quality For Life" And"Customer-Centered", Jierui Machinery Insists On Standing At The Forefront Of Market Science And Tech-Nology So That Each Product Can Take Up The Company's Brand Value, Allowing Each Service Detail To Penetrateinto The Customer's Mind, Shouldering Responsibility. We Are Willing To Work With All The Partners To Join Hands In Creating a Bright Future.
Product packaging
FAQ
Q: Are You Factory Or Trading Company? A) We Are Iso9001 Certified Factory, Mainly Manufacture In Forestry & Farm Machinery. B) Using "Self-Produced Self-Marketing" Business, Reducing The Cost Of Intermediate Links.
Q: What's Your Company Advantages? A) As The Leading Manufacturer Of Forest Machines, We Have Exported To European Market For More Than Ten Years, Familiar With Forest And Farm Market And Can Recommend To Clients Right Products. B) We Have Various Products And Can Offer All The Machines And Tools In The Forest And Farm. You Can Get All The Items You Need. Easy And Convenient For You. C) With Us Your Money And Your Business Is Safe. We Can Offer 7-Days Refund In Case Of Bad Quality, And Alibaba Trade Assurance Payment For Safety. D) Coming Together Is a Beginning; Keeping Together Is Progress; Working Together Is Success. Q: Can We Buy One Sample? Yes, We Need To Add Sample Fee To The Price And Will Return It Back To Your After Receiving Your Large Order In Future. Q: What's Your Delivery Time? After Receiving Your Payment, We Start To Produce Your Order. It Usually Takes About 15-45 Days Depending On The Products You Order. Q: How Do You Control Your Quality? To Guarantee High Quality And Efficient Management, We Have Passed Iso9001 Quality Management System Certificate. All Of Our Products Are 100% Inspected Before Shipment. Our Whole Manufacturing Processes Are Under a Very Serious And Strict System In Our Company.
Q: What's Your Product Warranty? The Warranty Time Of The Machine Is One Year. During This Period, We Will Send You The Replacement For The Broken Part(Not Man Made). To Meet The Every Demand Of Customer Is Our Goal. We Are Standing By For Any Question Of Customer. We Try To Make Our Service Fast, Efficient And Satisfied. Q: What's Your Company Mainly Exporting Market? We Mainly Export To European, North American, Australia, English And Southeast Asia Market. Because Of Good Quality And Service, We Have Establish Good And Long Business Relations With Many Clients. Welcome Clients From All Over The World To Visit Our Factory.
