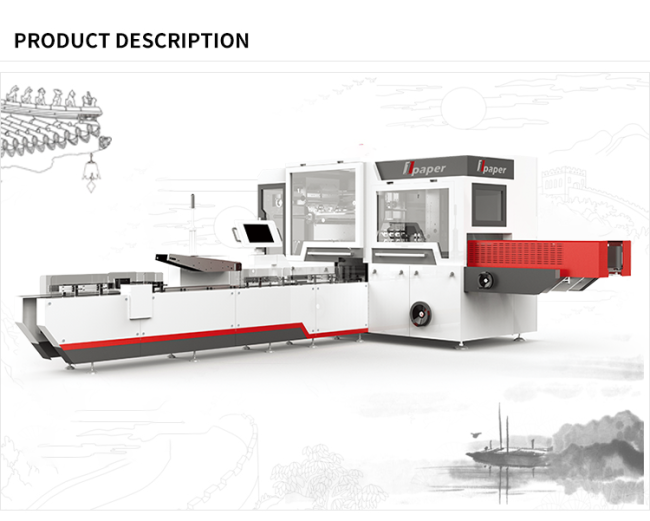

Three-dimensional Packing Soft Drawn Facial Tissue Machine for Flexible Napkin Tissue
Price:
$80,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ONEPAPER
Product Description
Product Description
Item/model | OPR-100A | ||||
packing form | Three-dimensional | ||||
packing material | CPP FILM,PE film,BOPP film | ||||
packing specification | L:95-230mm, W:80-120mm, H:20-100mm (Heightening model is H150mm) | ||||
maximum packing dimensions | L220×W120×H120mm | ||||
packing speed | 50-100 bags/minute | ||||
heating power | 4.70KW | ||||
motor power | 12.00KW | ||||
total power | 17.20KW | ||||
power supply type | three phase four wire 380V 50Hz | ||||
air supply | 0.5-0.7 MPa | ||||
air consumption | 200-300L/min | ||||
Outline dimensions | main machine | L4300×W1260×H2180mm | |||
conveying mechanism | L3580×W488×H460mm | ||||
machine weight | ≈About 3200Kg | ||||
Main performance and structural features:
1. Packing forms such as batch No. printing (optional), tear-line cutting, film feeding, material feeding, wrapping, end sealing, corner folding, side sealing, outputting and etc. are adopted. Featured by compact structure, beautiful packing and firm sealing.
2. Multi-servo motoi;10" touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
4. The photoelectric eye automatic detection tracking system is adopted. No film movement is made if the bag is empty, so as to save packing materials to the utmost extent.
5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
6. The arc and linear guide rails can be adopted to realize more stable running, lower noise and longer service life.
7. All important parts are provided with the linear torque limiter and overload protector to effectively protect machine safety.
2. Multi-servo motoi;10" touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The automatic material arranging and conveying mechanism is adopted to facilitate linked production with automatic production line, which can greatly reduce labor cost.
4. The photoelectric eye automatic detection tracking system is adopted. No film movement is made if the bag is empty, so as to save packing materials to the utmost extent.
5. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
6. The arc and linear guide rails can be adopted to realize more stable running, lower noise and longer service life.
7. All important parts are provided with the linear torque limiter and overload protector to effectively protect machine safety.
Company Profile
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: How about the after sales service?
A: We have a strong team for after sales services. We have 1 year warranty for all the machines
Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.
Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.
Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.
Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
A: We have a strong team for after sales services. We have 1 year warranty for all the machines
Q: Are you a factory or a trading company?
A: We're a manufacturer specializing in tissue equipments and packaging machines.
Q: Where's your factory? How can I visit it?
A: We're in Wenzhou city, Zhejiang province,China .You can fly to Wenzhou, and we'll pick you up at the airport.
Q: How does your factory do regarding quality control?
A: Quality is our main topic, it's the basement of a company's development. We've passed the GMP certification, CE certification, ISO9001 International Quality Control System Certification.
Q: What information should,provide in order to get a quotation?
A: -Dimension of your products(Lengths Width"Height)
-The requirements of speed
-Dimension of your package(Length*Width*Height)
