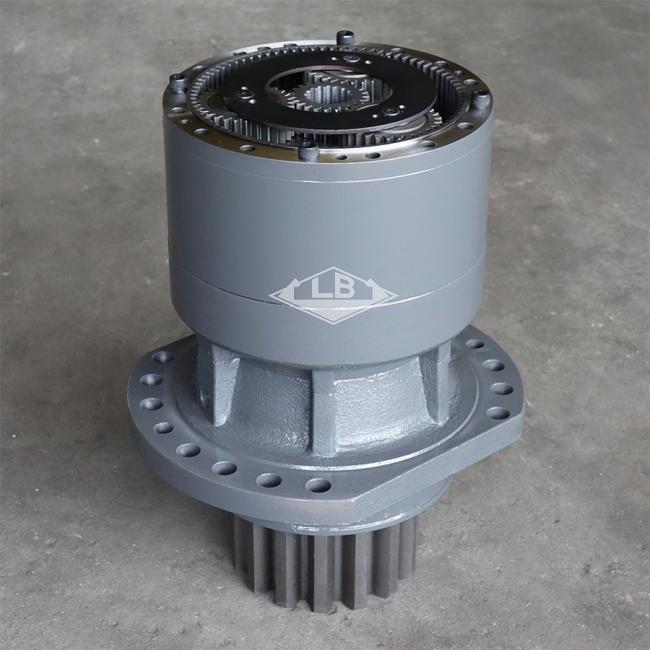

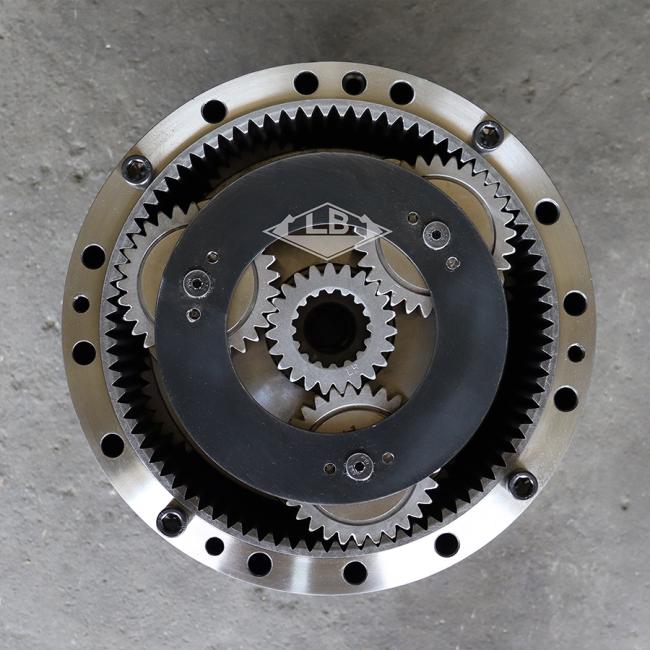

DX255 DX260 SWING REDUCTION GEAR K1004037A DX255 SWING GEARBOX
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | DX255 DX260 swing gearbox | |||||
| Equipment | Apply to DOOSAN EXCAVATOR | |||||
| Part no. | K1004037A | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 14T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 290KG | |||||
| MOQ | 1 pc | |||||
Product Descriptio
Parts on group DX255LC:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1004037A | [1] | REDUCTION GEAR;SWING | |
| 1. | K1004038B | [1] | SHAFT | |
| 10. | K1004040B | [1] | GEAR;SUN NO.1 | |
| 11. | K1002548 | [3] | GEAR;PLANET NO.1 | |
| 12. | K1002549 | [3] | PLATE;SIDE | |
| 13. | K1002550 | [3] | PIN | |
| 14. | K1006981 | [1] | GEAR;RING | |
| 15. | K1002552 | [1] | PLATE;THRUST | |
| 17. | K1003384A | [4] | PIN;LOCK | |
| 18. | K1002554A | [1] | SPACER | |
| 19. | K1004041A | [1] | COLLAR | |
| 2. | K1002539A | [1] | CASE | |
| 20. | K1002556 | [1] | PLATE | |
| 21. | K1002558 | [1] | RING;LOCK | |
| 22. | K1002559 | [1] | BEARING | |
| 23. | K1003682A | [1] | BEARING | |
| 24. | K1005719 | [1] | SEAL;OIL | |
| 25. | S5741361 | [4] | PIN;SPRING | |
| 26. | 2181-1116D4 | [1] | PLUG | |
| 27. | S5810010 | [3] | PLUG | |
| 28. | K1004042A | [1] | GEAR;PINION | |
| 29. | S2226671 | [12] | BOLT;SOCKET | |
| 3. | K1002540A | [1] | CARRIER NO.2 | |
| 30. | 140-01343A | [1] | PIPE | |
| 31. | 119-00020 | [1] | BAR;LEVEL | |
| 32. | K1002567 | [3] | PLATE;SIDE | |
| 33. | S6500600 | [3] | . RING,RETAINER | |
| 34. | 2120-1363 | [4] | BOLT | |
| 35. | 2403-1039A | [1] | PLATE;LOCK | |
| 36. | 2126-9001 | [1] | WIRE | |
| 37. | K1003386 | [3] | BUSH | |
| 4. | K1002541A | [1] | GEAR;SUN NO.2 | |
| 40. | K9004901 | [1] | CARRIER NO.1 ASS'Y | |
| 41. | K9004902 | [1] | CARRIER NO.2 ASS'Y | |
| 5. | K1002542 | [4] | GEAR;PLANET NO.2 | |
| 6. | K1002543 | [4] | PLATE;SIDE NO.2 | |
| 7. | K1002544 | [4] | PIN | |
| 8. | K1002545 | [4] | BUSH | |
| 9. | K1002546 | [1] | CARRIER NO.1 |
