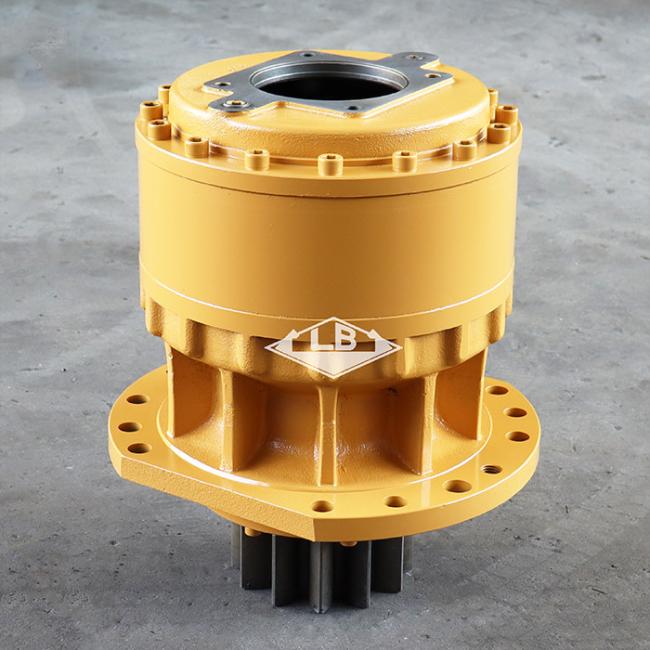

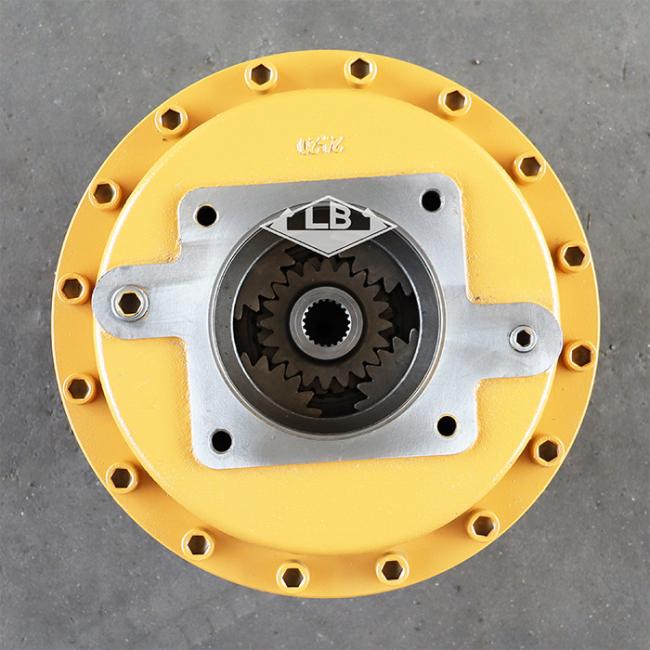

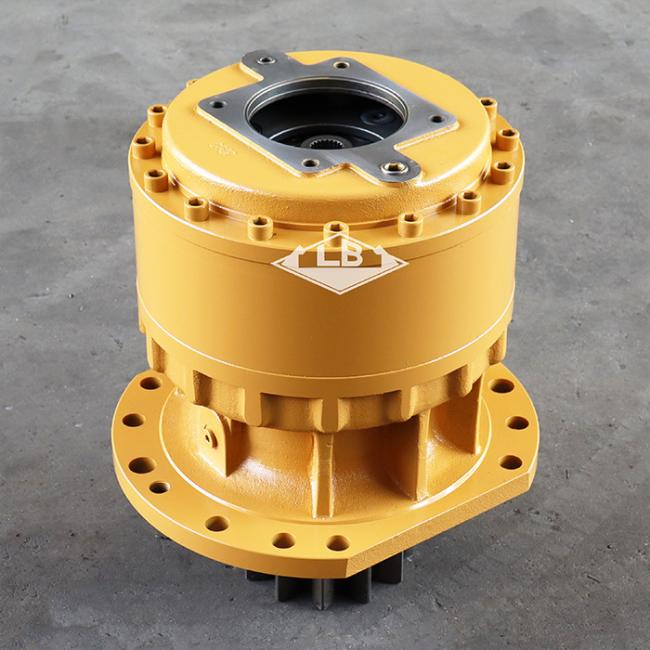

E 345C 345D 349D SWING DRIVE 227-6113 227-6114 296-6250 296-6253 2276113 2276114 2966250 2966253 E345 SWING GEARBOX
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name | E 345D Swing gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 296-6253 296-6250 | |||||
| Frame holes | 21 | |||||
| Sprocket holes | 12 | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | 295 KG | |||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 345C EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | BREATHER (SWING DRIVE) | |
| 2. | 4I-7464 | [4] | GEAR-PLANETARY (25-TEETH) | |
| 3. | 4I-7466 | [4] | GEAR-PLANETARY (23-TEETH) | |
| 4. | 4I-7467 | [1] | GEAR-RING (72-TEETH) | |
| 5. | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 6. | 7I-7728 | [1] | CARRIER-PLANETARY | |
| 7. | 7Y-0597 | [1] | SPACER-SPECIAL | |
| 8. | 7Y-1238 | [1] | CARRIER | |
| 9. | 093-1730 | [2] | RING-RETAINING | |
| 10. | 094-1509 | [4] | SHAFT-PLANETARY | |
| 11. | 094-1528 | [8] | WASHER (53X84X1-MM THK) | |
| 12. | 095-1806 | [1] | BEARING-ROLLER | |
| 13. | 096-2653 | [1] | RING-RETAINING | |
| 14. | 096-4339 | [1] | BEARING AS-ROLLER | |
| 15. | 110-7216 | [1] | GEAR-SUN (24-TEETH) | |
| 16. | 114-1383 | [4] | SHAFT-PLANETARY | |
| 17. | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) | |
| 18. | 114-1399 | [1] | PIPE-GAUGE | |
| 19. | 114-1401 | [1] | COVER-HOUSING | |
| 20. | 114-1403 | [1] | CAGE | |
| 21. | 136-2802 | [2] | CONNECTOR | |
| 22. | 136-2803 | [2] | CLIP | |
| 23. | 169-5534 | [1] | HOUSING | |
| 24. | 169-5535 | [1] | GEAR-SUN (20-TEETH) | |
| 25. | 227-6108 | [1] | SHAFT-PINION | |
| 26. | 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 27. | 296-6251 I | [1] | HOSE AS | |
| 28. | 093-1731 | [1] | RING-RETAINING | |
| 29. | 094-0584 | [8] | WASHER (40.3X72X1-MM THK) | |
| 30. | 199-4582 | [4] | BEARING AS | |
| 31. | 095-0886 | [4] | PIN-SPRING | |
| 32. | 509-6676 | [4] | PIN-SPRING | |
| 33. | 135-9044 | [2] | SEAL-LIP TYPE | |
| 34. | 3K-0360 | [1] | SEAL-O-RING | |
| 35. | 5P-2235 | [1] | SEAL-O-RING | |
| 36. | 191-2513 | [8] | BEARING AS-ROLLER | |
| 37. | 7Y-0595 | [1] | SPACER (58X79.6X6-MM THK) | |
| 38. | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | |
| 39. | 453-3447 M | [8] | BOLT (M12X1.75X40-MM) | |
| 40. | 451-2182 | [10] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 41. | 8T-4244 M | [1] | NUT (M12X1.75-THD) | |
| 42. | 453-3446 M | [1] | BOLT (M12X1.75X35-MM) | |
| 43. | 453-2843 M | [16] | BOLT (M16X2X180-MM) | |
| 44. | 451-2175 | [16] | WASHER-HARD (17.5X30X3.5-MM THK) | |
| 45. | 1U-8846 B | SEALANT-GASKET |
