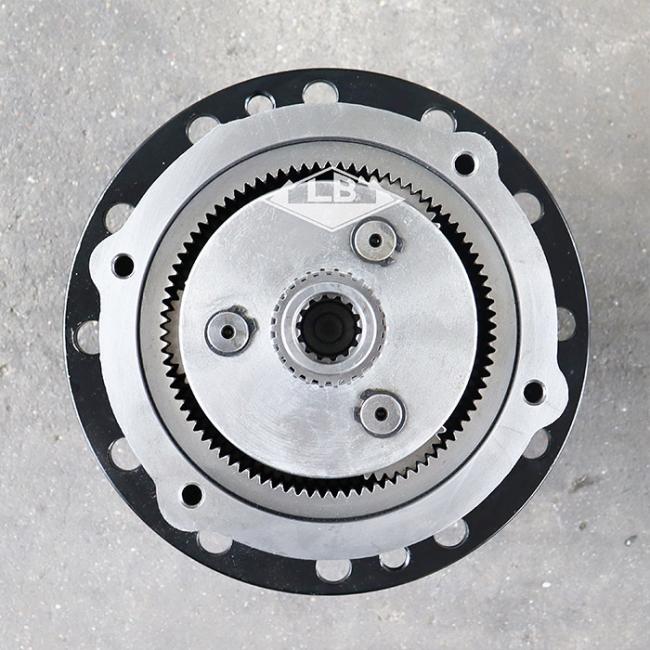

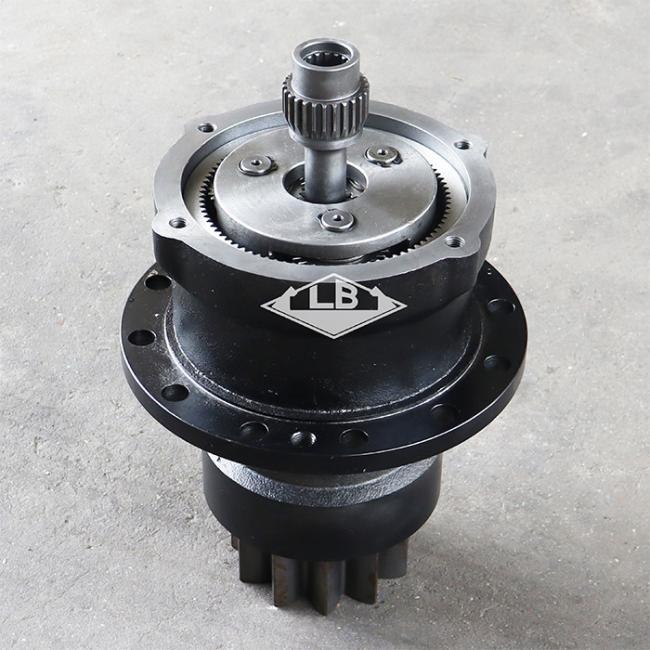

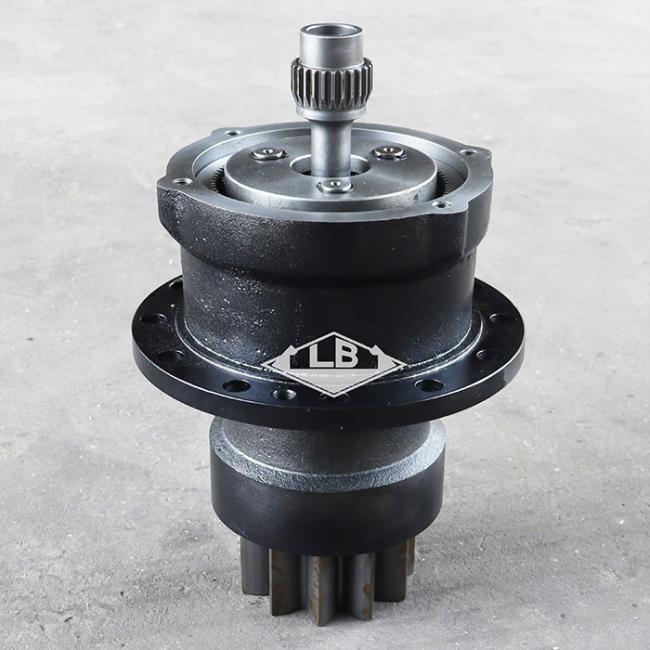

M315D M316 M317 SWING DRIVE 152-7375 1527375 M315D SWING GEARBOX FOR EXCAVATOR
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
PRODUCT PARAMETERS
| Part name |
E M315 M316 M317 Swing gearbox | |||||
| Equipment | Apply to EXCAVATOR | |||||
| Part no. | 152-7375 | |||||
| NO.1 sun gear spline teeth | 14 splines | |||||
| Swing pinion shaft teeth | 11 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | -- | |||||
| MOQ | 1 pc | |||||
Product Description

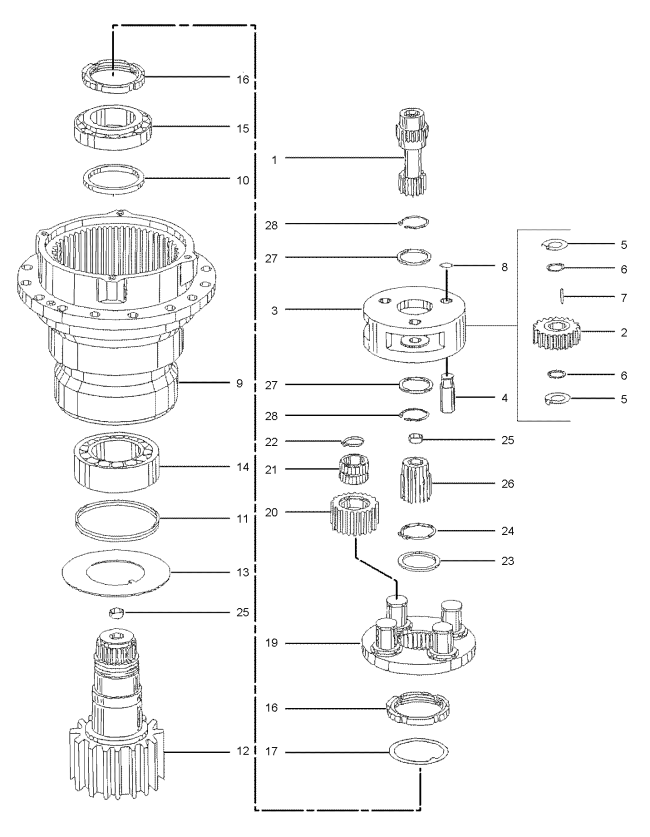

Parts for your M315F EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 155-0821 | [1] | SHAFT | |
| 2. | 155-0822 | [3] | GEAR-PLANETARY | |
| 3. | 155-0823 | [1] | CARRIER | |
| 4. | 155-0824 | [3] | PIN | |
| 5. | 082-3084 | [6] | WASHER | |
| 6. | 082-3085 | [6] | WASHER | |
| 7. | 132-4292 | [63] | BEARING AS-NEEDLE | |
| 8. | 095-0919 | [3] | RING-RETAINING | |
| 9. | 155-0827 | [1] | HOUSING AS-SWING | |
| 10. | 155-0828 | [1] | SEAL-LIP TYPE | |
| 11. | 155-0829 | [1] | SEAL | |
| 12. | 155-0830 | [1] | PINION | |
| 13. | 155-0831 | [1] | WASHER-SPECIAL | |
| 14. | 155-0832 | [1] | BEARING AS-ROLLER | |
| 15. | 155-0833 | [1] | BEARING AS-ROLLER | |
| 16. | 155-0835 | [2] | NUT-SLOTTED | |
| 17. | 155-0834 | [1] | RING | |
| 19. | 155-0836 | [1] | CARRIER-PLANETARY | |
| 20. | 155-0837 | [4] | GEAR-PLANETARY | |
| 21. | 155-0838 | [4] | BEARING AS-ROLLER | |
| 22. | 1H-8647 | [4] | RING-SNAP | |
| 23. | 098-2981 | [3] | SHIM (2-MM THK) | |
| 24. | 110-4737 | [1] | RING-RETAINING | |
| 25. | 121-8088 | [2] | BALL BEARING | |
| 26. | 155-0839 | [1] | GEAR-SUN | |
| 27. | 179-3153 | [2] | SHIM (2.5-MM THK) | |
| 28. | 6V-5201 | [2] | RING-RETAINING |
