E 418-7155 470-0474 Swing Gearbox E349D2 Swing Drive E349D2
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

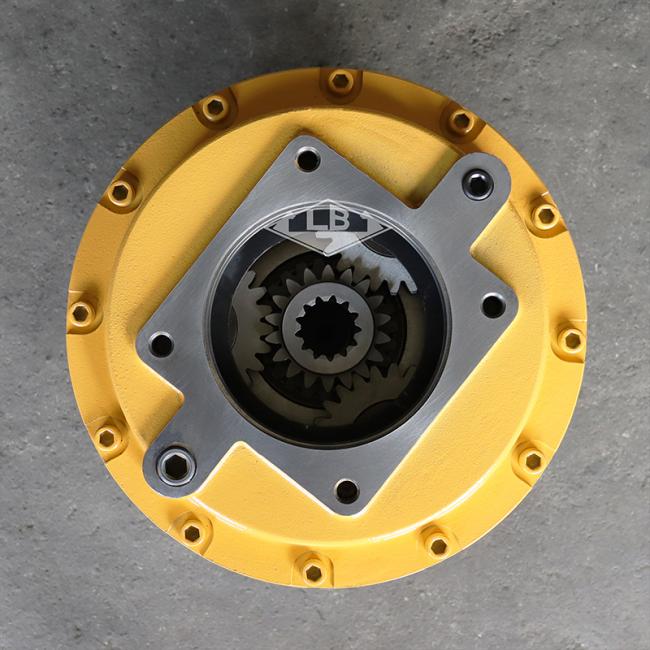

E 418-7155 470-0474 E349D2 Swing drive E349D2 Swing gearbox
PRODUCT PARAMETERS
| Part name | E 349D2 Swing gearbox | |||||
| Equipment | Apply to E EXCAVATOR | |||||
| Part no. | 418-7155 470-0474 | |||||
| NO.1 sun gear spline teeth | 13 splines | |||||
| Swing pinion shaft teeth | 12 T | |||||
| Item condition | New | |||||
| Logo | LB | |||||
| Gross weight | ||||||
| MOQ | 1 pc | |||||
Product Description
Parts for your 349D2 EXCAVATOR:
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4H-6112 | [1] | BREATHER (SWING DRIVE) | |
| 2. | 6V-7238 | [1] | VALVE-SHUTOFF | |
| 3. | 7Y-0597 | [1] | SPACER-SPECIAL | |
| 4. | 094-0611 | [14] | WASHER (47.3X76X1-MM THK) | |
| 5. | 114-1398 | [1] | GAUGE-OIL LEVEL (SWING DRIVE) | |
| 6. | 114-1399 | [1] | PIPE-GAUGE | |
| 7. | 114-1403 | [1] | CAGE | |
| 8. | 227-6108 | [1] | SHAFT-PINION | |
| 9. | 227-6215 | [1] | BOSS (1/4-18-THD) | |
| 10. | 296-6268 | [3] | BEARING AS-ROLLER | |
| 11. | 418-7160 | [1] | GEAR-SUN (13-TEETH, 18-TEETH) | |
| 12. | 418-7161 | [1] | GEAR-SUN (23-TEETH) | |
| 13. | 418-7162 | [3] | GEAR-PLANETARY (25-TEETH) | |
| 14. | 418-7163 | [4] | GEAR-PLANETARY (22-TEETH) | |
| 15. | 418-7164 | [1] | GEAR-RING (69-TEETH) | |
| 16. | 418-7167 | [4] | SHAFT | |
| 17. | 418-7232 | [1] | COVER-HOUSING | |
| 18. | 418-7233 | [8] | BEARING AS-ROLLER | |
| 19. | 418-7234 | [1] | CARRIER AS | |
| 20. | 418-7235 | [1] | CARRIER-PLANETARY | |
| 21. | 422-1352 | [2] | SPACER (49.6X69.5X6-MM THK) | |
| 22. | 422-4054 | [3] | RING-RETAINING | |
| 23. | 451-2182 | [52] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 24. | 453-3446 M | [1] | BOLT (M12X1.75X35-MM) | |
| 25. | 453-3447 M | [20] | BOLT (M12X1.75X40-MM) | |
| 26. | 456-0784 | [1] | HOUSING | |
| 27. | 486-7828 | [1] | HOSE AS | |
| 28. | 093-1730 | [2] | RING-RETAINING | |
| 29. | 095-0670 M | [30] | BOLT (M12X1.75X45-MM) | |
| 30. | 509-6676 | [4] | PIN-SPRING | |
| 31. | 095-1806 | [1] | BEARING-ROLLER | |
| 32. | 096-2653 | [1] | RING-RETAINING | |
| 33. | 096-4339 | [1] | BEARING AS-ROLLER | |
| 34. | 135-9044 | [2] | SEAL-LIP TYPE | |
| 35. | 136-2803 | [2] | CLIP | |
| 36. | 3K-0360 | [1] | SEAL-O-RING | |
| 37. | 5P-2235 | [1] | SEAL-O-RING | |
| 38. | 7D-5363 | [2] | CONNECTOR (9/16-18-THD) | |
| 39. | 8T-4244 M | [1] | NUT (M12X1.75-THD) |
