Custom DC Water Pump Motor, Air Pump DC Motor 12 volt 24 volt with Customized Special Flange Shaft and Performance
customized specification 12v 24v dc pump motor for hydraulic water air pumps, OEM ODM
Customized Dc motors for air pumps, water pumps, hydraulic pumps
Brushed version,
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : upto 2.0Nm
Power: upto 800w
Rated speed: upto 10000rpm

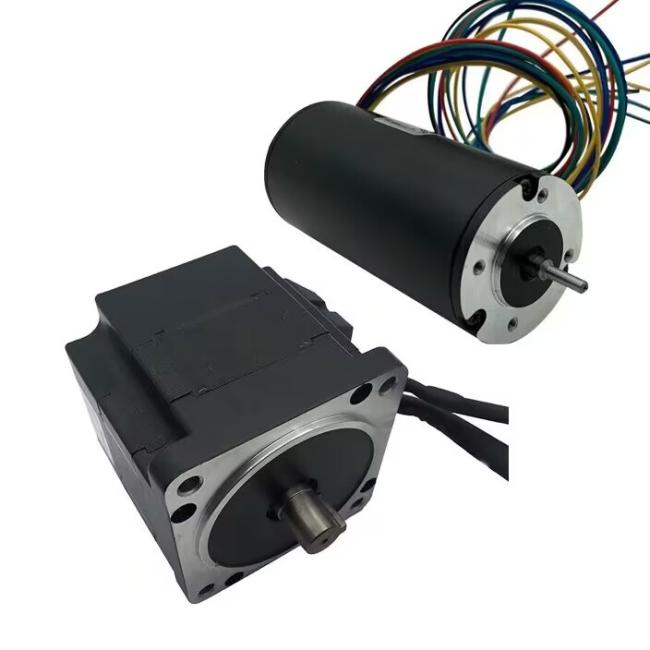

Brushless version,
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 4,8- poles
Protection class IP00 40 54 66
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Rated voltage : 12v 18v 24v 36v 48v
Rated torque : upto 2.5Nm
Rated speed: upto 12000rpm
With or without halls

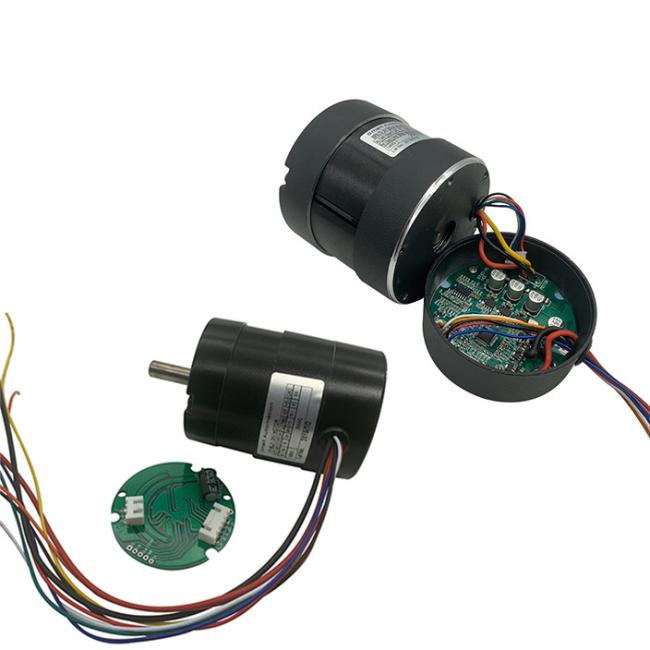

With or without controller integrated
Some specific model for reference,
Permanent Magnet Brush DC Motor 76ZYT02A-2
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
| Model | 76ZYT02A-2 | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 2600 | 2600 | 2600 |
| Continuous rated torque | N.m | 0.46 | 0.46 | 0.46 |
| Continuous current | A | 13 | 6.5 | 3.9 |
| Starting torque | N.m | 2.6 | 2.6 | 2.6 |
| Starting current | A | 68 | 34 | 20.5 |
| No load speed | rpm | 3200 | 3200 | 3200 |
| No load current | A | 1.0 | 0.6 | 0.3 |
| Weight of motor | g | 2000 | 2000 | 2000 |
| Motor length | mm | 118 | 118 | 118 |
Permanent Magnet Brush DC Motor 76ZYT03A-2
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
| Model | 76ZYT03A-2 | |||
| Rated voltage | V dc | 12 | 24 | 40 |
| Continuous rated speed | rpm | 2600 | 2600 | 2600 |
| Continuous rated torque | N.m | 0.65 | 0.65 | 0.65 |
| Continuous current | A | 20.5 | 10.1 | 6.1 |
| Starting torque | N.m | 3.51 | 3.51 | 3.51 |
| Starting current | A | 104 | 50 | 30 |
| No load speed | rpm | 3200 | 3200 | 3200 |
| No load current | A | 1.5 | 1.0 | 0.6 |
| Weight of motor | g | 2500 | 2500 | 2500 |
| Motor length | mm | 138 | 138 | 138 |
