BRUSH / BRUSHLESS DC MICRO MOTORS CUSTOMIZABLE:

BELOW ARE SOME TYPICAL MODELS (ALL ARE CUSTOMIZABLE)

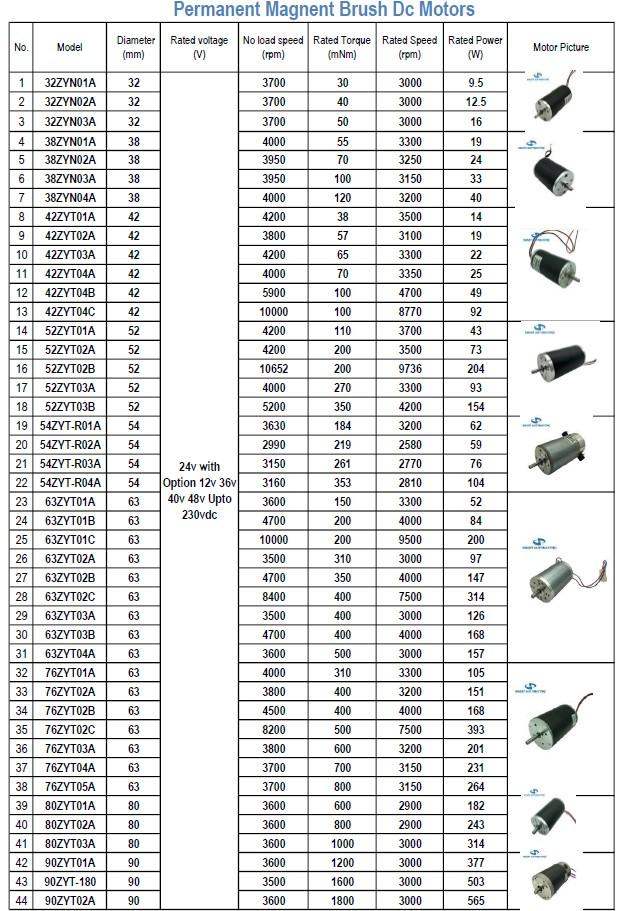

1. HIGH TORQUE BRUSH DC MOTOR

NMB NSK ball bearing

Hard ferrit magnet, 2- poles / 4-poles

Protection class IP 50. 54 66 Opiton

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Voltage; 12v upto 380vdc

speed: 1rpm-15000rpm

power: 5w-1000w

42mm

52mm

63mm

76mm

80mm

90mm

Dc Motors with Gearbox, encoder, brakes integrated version

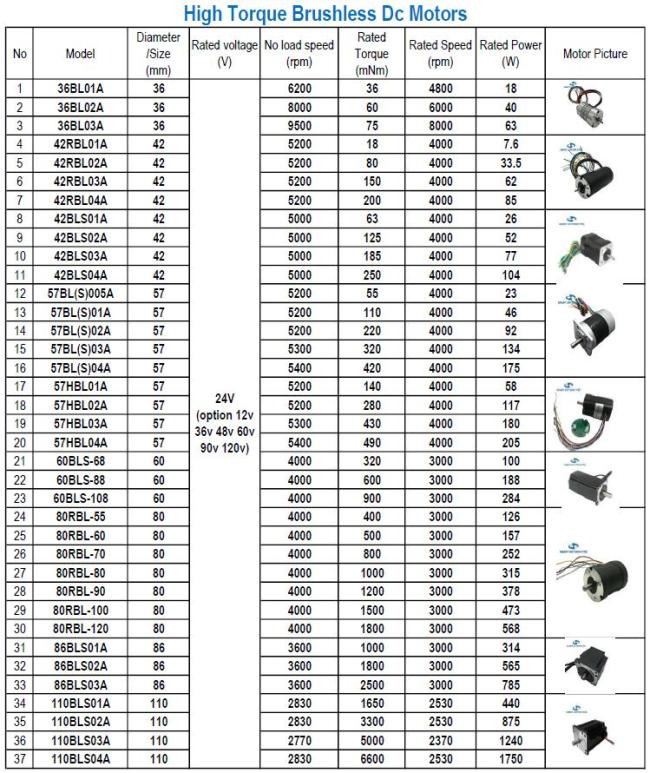

2.HIGH TORQUE BRUSHLESS DC MOTOR

Voltage : 12v 24v 36v 48V 60vdc upto 380vdc

Power : 10w to 2000w

Speed: 1pm upto 20000rpm
Size: 22mm 28mm, 30mm, 36mm, 42mm, 57mm, 60mm, 63mm, 70mm, 80mm, 86mm, 110mm

Certification: ISO9001, CE , RoHs

Shaft Modifications and Motor Adders Available: Gearbox, Encoder and Controller OPTION

42mm bldc

57mm bldc

80mm bldc

86mm square bldc

BLDC motor with gearbox and brake encoder controller integrated
