80ZYT-S Square Flange Series DC Motor Brushed 12vdc 24vdc 48vdc 100w 200w 300w 1500rpm 2000rpm 3000rpm
Price:
To be negotiated
MOQ:
50
Delivery Time:
To be negotiated
Brand:
SMART AUTOMATION
Product Description

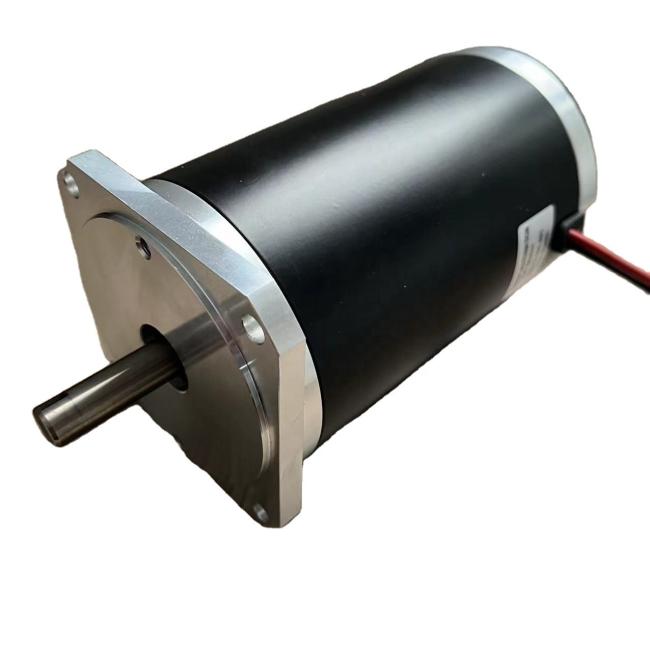

80ZYT-S Series Brushed Dc Motor
80ZYT-S Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 (Option for IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
80ZYT-S Motor Main Technical Specification:
| Model | Unit | 80ZYT-S01A | 80ZYT-S02A | 80ZYT-S03A | 80ZYT-S04A |
| Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | |||
| No Load Speed | Rpm | 3600 | 3600 | 3500 | 3500 |
| Rated Torque | N.m | 0.6 | 0.8 | 1.0 | 1.2 |
| Rated Speed | Rpm | 3150 | 3150 | 3050 | 3050 |
| Rated Current | A | 10.0 | 13.5 | 15.5 | 20.0 |
| Output Power | W | 200 | 265 | 320 | 383 |
| Weight | Kg | 2.5 | 3 | 3.5 | 4.0 |

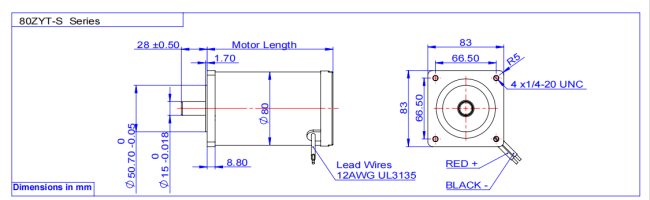

| Motor Length | Mm | 120 | 140 | 160 | 175 |
