China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale
China LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line for sale

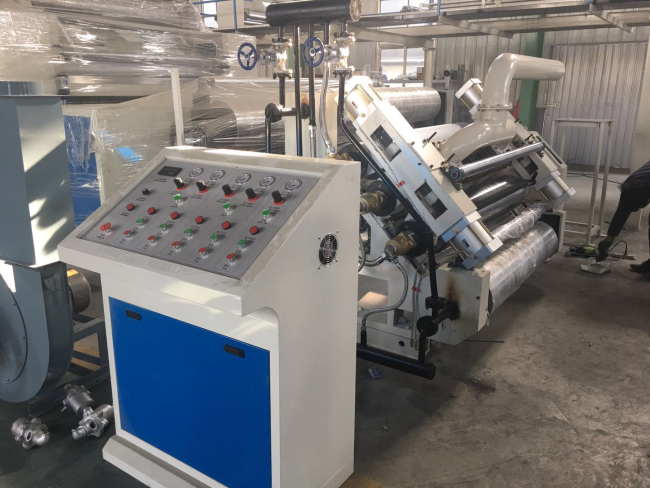

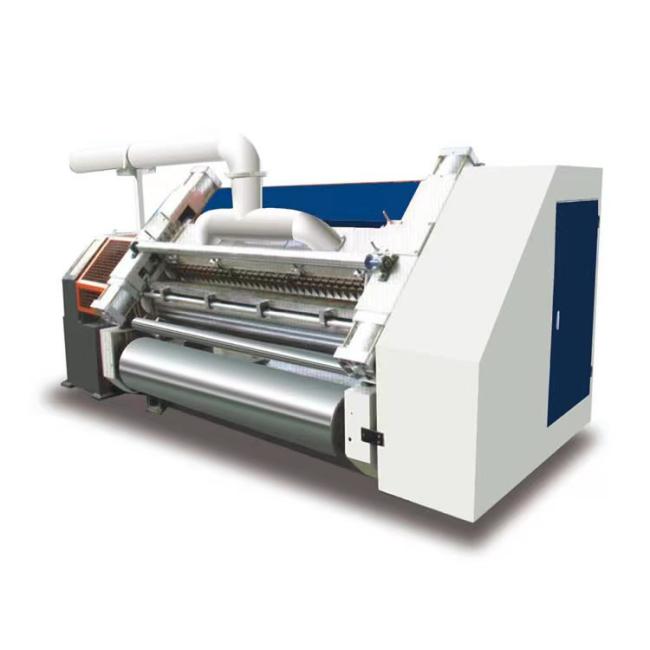

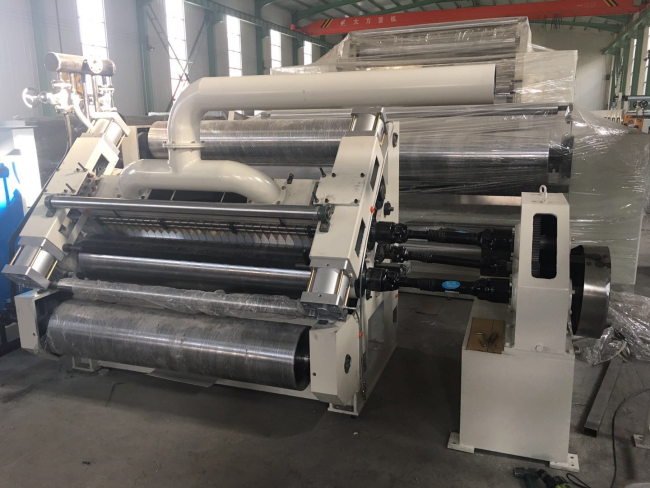

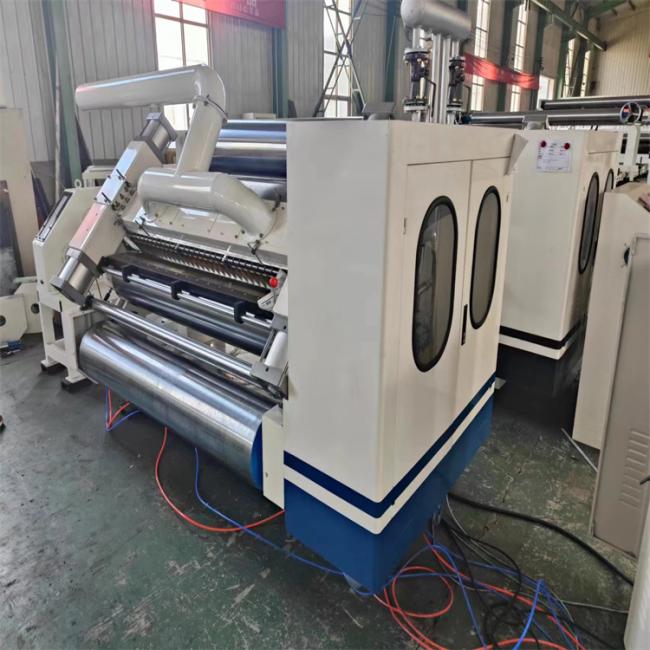

LIHENG Machinery Fingerless Type Single Facer 2-layer Corrugated Paperboard Production Line

Price Negotiable
Price: $14,000.00/sets >=1 sets
MOQ: 1pc
Delivery Time: Negotiable
Brand: LIHENG
Product Description
Product Description
Specification
item
value
Brand Name
LIHENG
Product Name
280s Single Facer Machine
Weight
4500KG
Max. machine speed
100m/min
Economic speed
80m/min
Max. working width
1600mm
Max working steam pressure:
1.0-1.3Mpa
Steam temperature
160—210 centigrade
Power requirements:
380V, 50Hz
Diameter of corrugated roller
280mm
Diameter of Press roller .
320mm.
Diameter of preheater roller
300mm
Diameter of Glue roller
215mm
Diameter of doctor roller
105mm
Main Motor
11kw
Fan Motor
11kw
Use and Characteristics:
1. Design speed: 100m/min.
2. Effective width: 1400mm- 1800mm.
3. Corrugated roller: φ 280mm.
4. The driving reducer adopts oil penetration lubrication, reducing noise, universal joint drive and isolating power source.
5. Upper roller, pressure roller and rubber roller lift, all with pneumatic control.
6. The guide paper adopts vacuum adsorption, with air volume adjustment device, to maintain the stability of corrugated type in
high speed.
7. The roller and pressure roller bearings are lubricated with high temperature resistance grease.
Use and Characteristics:
8. The gelatinize part adopts automatic circulation for glue.
9. The upper and lower corrugated roller adopts 48CrMo high quality chromium aluminum alloy steel, after heat treatment, the
hardness is grinding on the surface of hrc58o-60o.
10. The surface of the rubber roller has been treated with the mesh cut and chrome plating.
11. Manual or electric separation device.
12. The machine can operate independently or without independent operation, and the main power converter control (optional).
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Recommend Products
Company Profile
Cangzhou Liheng carton packaging Machinery Manufacturing Co., LTD.
located in Dongguang County economic Development Zone East. North of Beijing and Tianjin, south of Shandong, and Cangzhou iron Lion, Wuqiao acrobatic world adjacent; Beijing-shanghai Railway, 104 National Road, Beijing-Fu high-speed adjacent through, its convenient transportation, production environment is very superior.
Our company specializes in the production of various types of printing presses and a complete set of packaging machinery and equipment, with independent development and research capabilities, to achieve the high-tech level of sustainable development of equipment, and constantly improve the shortcomings of international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, safe automation machinery and equipment direction. Enterprise talent, strong technical force, with high-tech design personnel, precision production equipment, advanced testing means, strict quality management system and a strong technical production team, to ensure product quality and performance laid a solid foundation
Certifications
Exhibition
FAQ
1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou
west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west
station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the
machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways
you want.
