Industrial Automation Capsule Slip Rings 8 Circuits 2.5A 24.5mm Lead Length

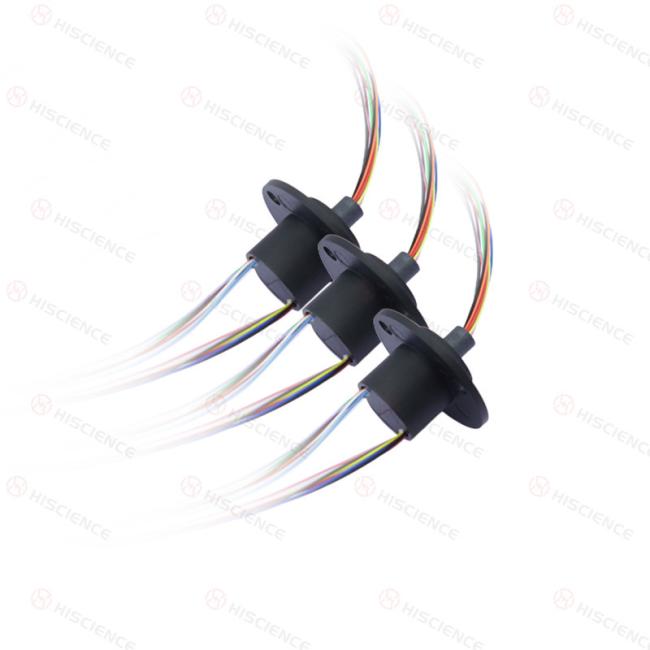

Capsule Slip Rings 8 Circuits 2.5A
Product Description:
Features:
- Eight Circuits: The Capsule slip rings features eight Circuits, providing multiple pathways for the transmission of signals and power.
- 2.5A Rated Current: With a rated current of 2.5A per circuit, this slip ring can handle a higher electrical load, ensuring reliable power transmission.
- Compatibility: The slip ring is compatible with various communication protocols and can seamlessly integrate into different systems and equipment.
Typical Application:
- Robotics:Capsule slip rings are commonly used in robotics applications to enable continuous rotation while maintaining reliable signal and power transmission between stationary and rotating components.
- Packaging Machinery:Capsule slip rings find applications in packaging machinery, allowing for the transmission of signals and power between stationary parts and rotating components such as conveyors, or rotary arms.
- Industrial Automation: Capsule slip rings play a vital role in industrial automation systems, facilitating the transmission of signals and power between stationary control systems and rotating machinery, such as motors, sensors, or actuators.
Specifications:
| Electrical Parameter | |
| Circuits &Current | 8 / 2.5A |
| Lead Wire Size | Φ0.8-AWG26#Teflon Insulated |
| Lead Length | 24.5mm |
| Voltage | 110V AC/DC |
| Dielectric Strength | ≥300VDC@50Hz |
| Insulation Resistance | ＞200㏁ / 200VDC |
| Transmitting media | Signal Or Power |
| Mechanical Parameter | |
| Lead Wire Size | Stator:200mm Rotor:200mm |
| Warranty Period | One year/5 million Turns |
| Contact Material | Gold-On-gold |
| Housing Materia | Engineering Plastics |
| Working Temperature |
-30'C~+80℃ |
| Working Humidity | ≤70%RH |
| Working Speed | 0-300RPM |
| Protection(IP Grade) | IP40 |

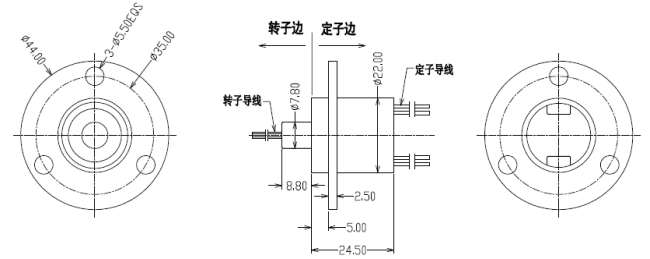

Drwing for HC24508-B01:
FAQ:
What is a Capsule slip ring?
A Capsule slip rings is a device used to transmit electrical signals and power between a stationary part and a rotating part of a system. It consists of a rotating ring assembly and a stationary brush assembly enclosed within a protective cap.
How does a Capsule slip ring work?
The Capsule slip ring works by establishing electrical connections between the rotating and stationary components through sliding contacts. The rotating ring assembly is connected to the rotating part, while the stationary brush assembly is connected to the stationary part. As the rotating part moves, the sliding contacts maintain continuous electrical connectivity.
What are the main advantages of Capsule slip ring?
The advantages of Capsule slip ring include:
Continuous electrical transmission during rotational movement.
Compact design with a protective cap for improved durability.
Suitable for transmitting signals and power simultaneously.
Low electrical noise and signal loss.
Easy installation and maintenance.
