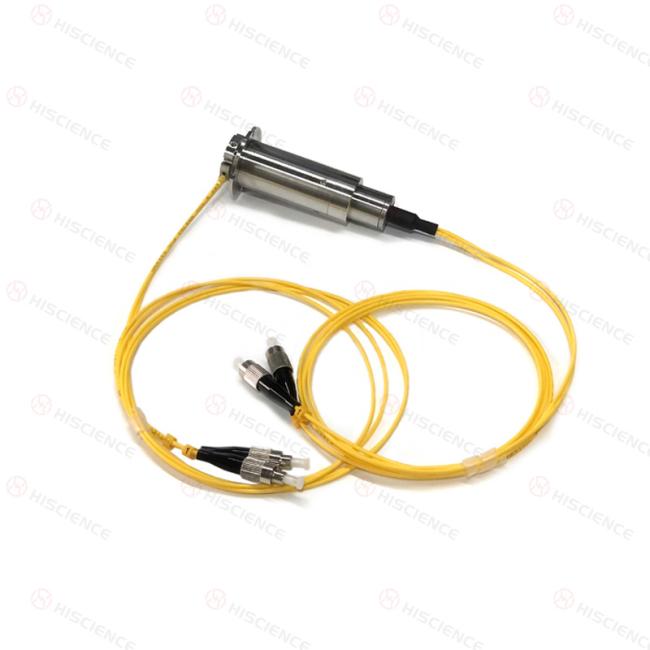

2 - 7 Circuits Fiber Optic Slip Rings IP60 With Stainless Steel Housing Material
Fiber Optic Slip Rings, 2 to 7 Circuits of optical signals
Product Description:
Features:
The fiber optic slip ring is a side-emitting slip ring designed to provide a solution for scenarios with limited axial space. By transmitting optical signals from the side, this slip ring significantly saves axial space. The product features 7 Circuits and is manufactured using collimation techniques, enabling non-contact transmission and avoiding issues related to contact wear. Additionally, users can choose between single-mode, multi-mode, or hybrid single/multi-mode configurations based on their requirements. The product also offers different levels of environmental durability, ensuring resistance to factors such as impact, vibration, and high/low temperatures according to specific environmental demands.
Typical application:
- Marine and Underwater Systems: Fiber optic slip rings are used in marine and underwater applications, including underwater vehicles, remotely operated vehicles (ROVs), and sub sea monitoring systems, enabling optical signal transmission in submerged environments.
- Renewable Energy: Fiber optic slip rings find applications in renewable energy systems, such as solar trackers and tidal power generation, facilitating optical signal transmission for monitoring and control purposes.
- Research Microscopy: Fiber optic slip rings are employed in research microscopy systems, enabling optical signal transmission between rotating microscope components, such as objective lenses and sample stages, allowing for continuous imaging and data acquisition.
Specifications:
| Technical Specifications | |
| Fiber Type | Single Mode(9/125 μm) |
| NO.of Circuits | N≤7 According to customer’s request |
| Wavelength Range | 780-1650(Default:1310& 1550 nm) |
| Insertion Loss | ≤4.0dB |
| Insertion Loss Variations | ≤±1.0dB |
| Return Loss | >45dB |
| Optical crosstalk | ≥70 |
| Max. Optical Power | 25dBm |
| Roating Speed | 300rmp |
| Working Life | ≥200 million (300 rpm) |
| Pulling Strength | ≥75N |
| Working Temperature | -40~80℃ |
| Storage Temperature | -45~85℃ |
| Weights | 25g |
| Protection(IP Grade) | IP60 |
| Housing Material | Stainless Steel |
| Connector Type | Default:FC/PC |
| Package Style | Pigtails on both ends, default Φ2.0mm, 1.0 meters long |
| Vibration Standard | MIL-STD-167-1A |
| Mechanical shock | MIL-STD-810G |

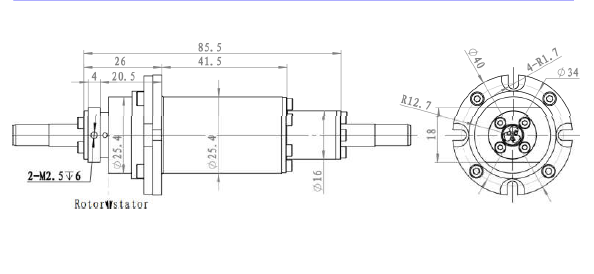

Drawing for HF02H-FC001:
FAQ:
Are fiber optic slip rings compatible with other communication protocols?
Yes, fiber optic slip rings can be compatible with various communication protocols such as Ethernet, USB, or RS-232. This allows for integration with different types of equipment and systems.
Can fiber optic slip rings transmit analog signals?
Yes, fiber optic slip rings can transmit analog signals such as audio or video signals. They can maintain the quality and integrity of analog signals during transmission.
Are fiber optic slip rings susceptible to signal loss over long distances?
Fiber optic slip rings have low signal loss characteristics, which means they can transmit signals over long distances without significant degradation. However, the overall transmission distance may still be limited by the specific fiber optic cables used.
