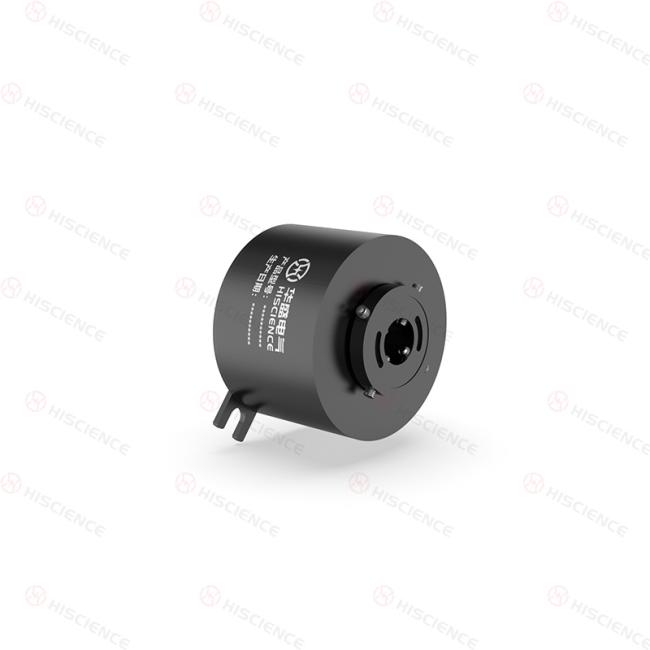

Through Bore Slip Rings 6 circuits 10 A Hole Size 12.7mm

Product Description:

Features:

• Compact Design: The slip rings feature a compact design, allowing them to fit into limited space installations. The compact size makes them suitable for applications with size constraints or tight packaging requirements.

• Reliable Signal Transmission: The slip rings are engineered to ensure reliable signal transmission, minimizing signal loss and maintaining signal integrity across the rotating interface. This feature is important for applications that require accurate and uninterrupted data or signal transfer.

• Low Electrical Noise: These slip rings are designed to minimize electrical noise and interference, ensuring clean signal and power transmission. The low electrical noise feature contributes to improved system performance and reduced signal degradation.

Typical Application:

• Electric Vehicles: Through Bore Slip Rings are used in electric vehicles to transmit power and signals between the stationary power source and rotating components such as motors, sensors, and charging systems. They enable efficient and reliable operation of electric vehicles.

• Broadcast and Communication Equipment: These slip rings find application in broadcast and communication equipment, including satellite antennas, radio telescopes, and mobile communication systems. They facilitate the transmission of power, signals, and data, ensuring seamless communication and signal reception.

• Mining Equipment: Through Bore Slip Rings are employed in mining equipment, such as excavators and drilling rigs, where the transmission of power and signals to rotating parts is required. They support efficient and reliable operation in challenging mining environments.

Specifications:

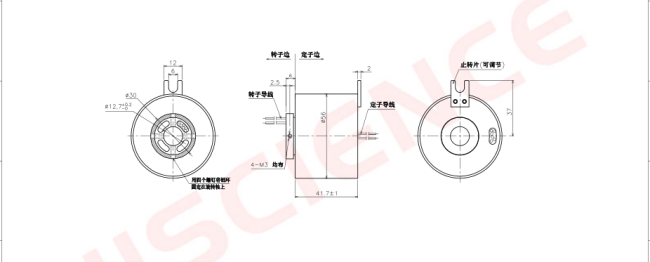

Drawing for HT1256-P0610:

FAQ:

What is the maximum current rating of these slip rings?

These slip rings have a maximum current rating of 10 A, making them suitable for applications that require high-current power transmission.

How many circuits are available in these slip rings?

These slip rings have 6 circuits, providing multiple channels for signal or power transmission.

What is the hole size of these slip rings?

The hole size of these slip rings is 12.7 mm. This specification is important to ensure compatibility and proper fitment with the rotating shaft or assembly.
