Maritime Offshore Equipment Stable Signal Transfer with Customized Slip Rings and FC PC Fiber Connectors
Product Description:
Efficient Fiber Optic Performance: Supports single-mode fiber (9/125µm) at 1310/1550nm wavelengths, providing high-speed, low-loss optical communication.
Versatile Connector Options: Equipped with FC(PC) fiber connectors, with customization available upon request.
Minimal Signal Interference: Shielded signal wires (twisted pair and CAT5e) reduce electromagnetic interference (EMI) and improve transmission quality.
Typical Applications:
Wind Turbines: Enables power and fiber optic signal transfer in wind turbine pitch control systems, ensuring stable operation.
Maritime & Offshore Equipment: Suitable for marine radars and offshore communication systems, providing uninterrupted signal transmission.
Broadcast & Stage Lighting Systems: Used in rotating camera platforms, stage lighting, and live broadcasting equipment requiring continuous data transmission.
Specifications:
| Circuits/Current |
Circuits |
| Voltage | 24-380VAC/DC |
| Lead Wire size |
AWG17#/AWG20#/AWG24#/ 2*0.2mm"Twisted Shielded Wire/CAT5e |
| Dielectric strength | ≥500V@50HZ |
| Insulation Resistance | 500MΩ@500VDC |
| Dynamic Contact Resistance | ≤10mΩ |
|
Working Speed |
0~10rpm |
| Protection(lP Grade) | IP51 |
| Working Temperature | -30℃~+70°C |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
|
Fiber types |
SM: 9/125um |
| Channel number |
1 |
| Wavelength range | SM:1310/1550nm |
| Insertion loss | ＜2dB |
| Insertion loss ripple | ＜0.5dB |
| Connector types | FC(PC) |

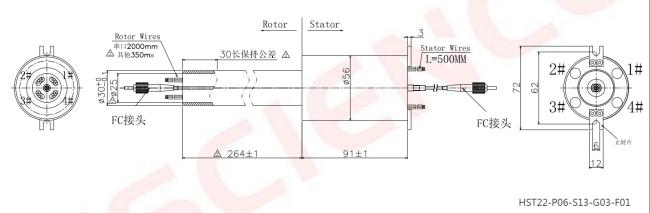

Drawing:
FAQ:
Q: What is the standard fiber optic connector type?
A: It comes with FC(PC) connectors, but other connector types (such as SC, LC) can be customized based on requirements.
Q: Can the number of circuits or fiber optic channels be customized?
A: Yes, we can customize the number of electrical circuits and fiber optic channels based on your specific needs.
Q: What is the material of the contact points?
A: The contact material is precious metal, ensuring low wear and high reliability for long-term operation.
